Specifications
Brand Name :
Eltek
Model Number :
Smartpack S controller
Certification :
CE,UL
Place of Origin :
CN
MOQ :
1 piece
Price :
399 USD/pc
Supply Ability :
1000 pieces / month
Delivery Time :
3-4 weeks
Packaging Details :
cartons
Brand :
Eltek
Part Number :
242100.410
Product Name :
Smartpack S
Model Name :
Eltek Monitoring
Application :
Telecom Power Systems
system voltage support :
12 VDC, 24VDC, 48VDC & 60VDC
Description

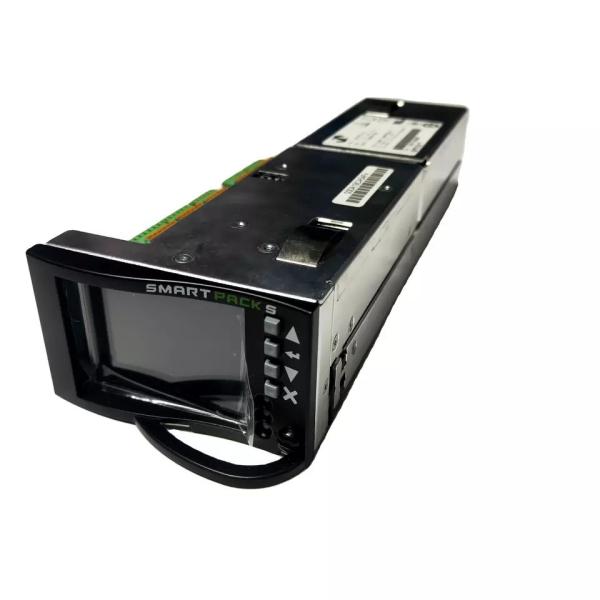

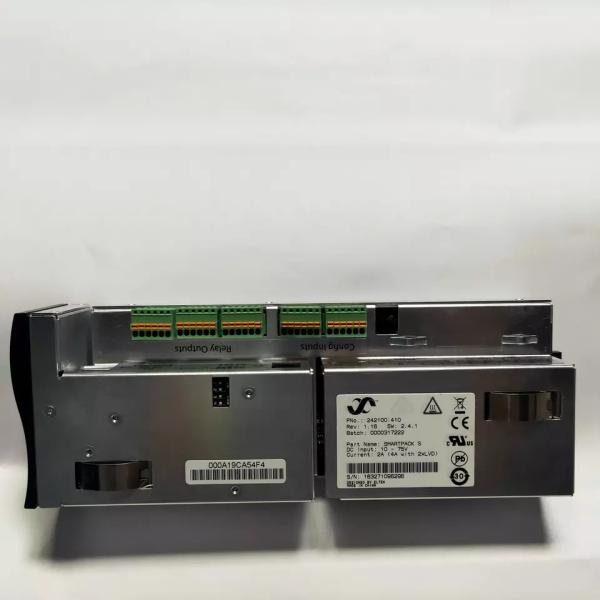

Factory Direct Sale Eltek Smartpack S Rectifier 12V,24V,48V,60V Rectifier System 242100.41012V 24V 48V Smartpack S Controller Rectifier System 242100.410

Factory Direct Sale Eltek Smartpack S Rectifier 12V,24V,48V,60V Rectifier System 242100.410

Key features

  • Graphical 2.2” high contrast, high resolution color display for easy navigation in user menu
  • Ethernet for remote or local monitoring and control via web browser
  • SNMP protocol with trap, set and get on ethernet. email of trap alarms
  • 6 programmable relay outputs

Application :

TELECOM – MOBILE / WIRELESS

· RADIO BASE STATIONS/ CELL SITES

· LTE / 4G / WIMAX

· DISTRIBUTED ANTENNA SYSTEMS

· BROADBAND

TELECOM – FIXED

· FIBER OPTICS / FTTX

· MICROWAVE

· CABLE

· BROADBAND

OFFSHORE AND PROCESS INDUSTRY

· SAFETY AND AUTOMATION SYSTEMS (SAS)

PARAMETERS:

TECHNICAL SPECIFICATION
Model Smartpack S
Part number 242100.410
INPUT DATA
Voltage (nominal) 10 - 75 VDC
Power Consumption, max - no relays energized max - all relays energized 3,1W (display sleep) 5,5W (display on)
SYSTEM CONNECTIONS - SYSTEM MONITORS
Voltage sense, system voltage support 12 VDC, 24VDC, 48VDC & 60VDC
Current sense, shunt support 0 - 20mV and 0 - 60mV
Battery fuse monitoring Auxiliary switch NO/NC, Pull up/down
Load fuse monitoring Auxiliary switch NO/NC, Diode Matrix Pull up/down
Ground fault detection Simple bridge circuit detection
SYSTEM CONNECTIONS - LVD CONTROL
Battery disconnect 1 (latched or non-latched supported)
Load disconnect 1 (latched or non-latched supported)
INPUTS AND OUTPUTS
Digital configurations, Inputs #1-6 Auxiliary switch: NO/NC
Analog configurations, Inputs #1-4

Analog Voltage[±0 - 10V]

±4-20mA current measurement (through external 470kΩ resistor) Temperature (for NTC probe)

Analog configurations, Inputs #5-6 Analog Voltage[0-75V] Symmetry measurement
Output configurations, Outputs #1-6 (alarms)

6x Relay–Dry/Form C

Configurable Normally Open/Closed [Max capacity 75V/2A/60W]

USER INTERFACE
Local

2.2” TFT 65k Colour display QVGA resolution

4 keys

Ethernet port

10/100 BASE-T

HP Auto MDI/MDI-X

IP protocols: HTTP / SSL, SNMP v3, MODBUS TCP and pComm UDP (PowerSuite)

Serial port

RS-232 and RS-485 on RJ11 connector

Serial protocols: MODBUS RTU, Modem Call-Back/SMS reporting (PSTN or GSM), COMLI, CSCP and pComm (PowerSuite)

GENERAL SPECIFICATIONS
Dimensions (WxHxD) 72.2 x 43.0 x 220.7mm (2.8 x 1.7 x 8.7”)
Temperature Range Operating -20 to +65˚C (-40 to 149˚F)
DESIGN STANDARDS
Electrical safety UL 60950-1-3rd edition, EN 60950-1-3rd edition
EMC

ETSI EN 300 386 V.1.4.1

EN 61000-6-1 / -2 / -3 / -4

FCC Part 15 Subpart 109

Marine*) DNVGL-CG-03391)
Environment

ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2)

ROHS compliant

1)Only valid for part number 242100.410M

Eltek Monitoring Comparsion

CAN Device

Start

End

Numb of Nodes

Smartpack

1

14

14

Smartpack 2 Basic

1

10

10

Smartpack 2 Master

11

14

4

Smartnode

17

30

14

Battery Monitor

33

46

14

Load Monitor

49

62

14

Flex Monitor

65

78

14

I/O monitors

81

94

14

Mains Monitor

97

110

14

12V 24V 48V Smartpack S Controller Rectifier System 242100.410

12V 24V 48V Smartpack S Controller Rectifier System 242100.41012V 24V 48V Smartpack S Controller Rectifier System 242100.41012V 24V 48V Smartpack S Controller Rectifier System 242100.410

12V 24V 48V Smartpack S Controller Rectifier System 242100.41012V 24V 48V Smartpack S Controller Rectifier System 242100.410

12V 24V 48V Smartpack S Controller Rectifier System 242100.410
12V 24V 48V Smartpack S Controller Rectifier System 242100.410
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.

8 How many months for guarantee ?
A: 1 year quality guarantee

9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
