Specifications
Brand Name :
CE+T
Model Number :
Bravo 10 48/120
Certification :
CE
Place of Origin :
CHINA
MOQ :
5
Price :
1USD
Payment Terms :
T/T
Supply Ability :
lakh
Delivery Time :
7-15days
Packaging Details :
27*32*10.5
Part Number :
T611330201
Operating T° :
-20°C to 65°C
Nominal voltage (AC) / Current :
120 Vac / 7.2 A
Brownout :
< 108 Vac linear decreasing
DC voltage: Nominal / range :
48 Vdc / (40-60V)
Nominal current :
18.5 A
Efficiency :
95% / >92%
Nominal voltage AC :
120 V (100 - 130 Vac)
Description

CE+T Inverter Module Bravo 10 48Vdc 120Vac 1000VA Power Shelf Part No T611330201 T614330000

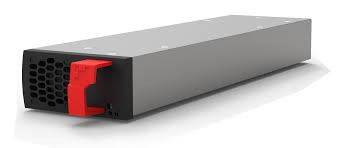

Bravo 10 is a small modular inverter offering many opportunities to design a solution that perfectly fits your needs. The ECI technology offers both AC and DC inputs to provide a perfect AC power while reducing the number of power conversion (the module operates under normal condition with the AC input delivering a 94% efficiency)! In conjunction with the DC input, it provides an excellent AC backup solution.

From 1 to 32 modules, with several options available (manual external by-pass and AC distribution), the Bravo 10 modular inverter is also hot-swappable meaning a very easy and cheap maintenance. The modules are delivered with our new monitoring solution.

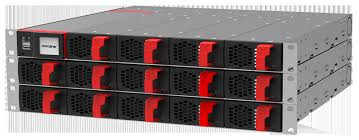

Bravo 10 can be used with the Inview S (DIN or panel mounting) and Inview S Slot monitoring. One shelf can accommodate 5 modules (5 kVA) or 4 modules (4 kVA) with Inview S Slot monitoring included. For third party application the Inview GW Rack or DIN mount could be used.

Applications

An ideal solution for securing small but critical AC loads, from 1 kVA to 32 kVA, such as telecom small cells (4G and 5G), access control, traffic lights, security, etc. The module can be integrated into shelves for single-phase (120 Vac) or split-phase (120/240 Vac), and three-phase (3x208 Vac) configuration can be achieved within two shelves.

Specification

Part Number: Module / Shelf T611330201 / T614330000
Dielectric strength DC/AC 4300 Vdc
Operating T° / Relative Humidity (RH) non-condensing

Tested according ETS300-019-2-3 Class 3.1

-20°C to 65°C, power de-rating from >50°C to 65°C / Max RH 95% for 96 hours per year
Storage T° / Relative Humidity (RH) non-condensing

Tested according ETS300-019-2-1 Class 1.2

-40°C to 70°C / Max RH 95% for 96 hours per year
AC Input Data
Nominal voltage (AC) / Current 120 Vac / 7.2 A
Brownout < 108 Vac linear decreasing
Power factor / THD > 99% / < 3%
DC Input Data
DC voltage: Nominal / range 48 Vdc / (40-60V)
Nominal current (at 48 Vdc and 800 W output) 18.5 A
AC Output Data
Efficiency AC to AC (EPC) / DC to AC 95% / >92%

Nominal voltage AC

(Adjustable)

 120 V (100 - 130 Vac)
Frequency / frequency accuracy 60 or 50 Hz / 0.03%
Nominal Output power (VA) / (W) 1000 VA / 800 W
Nominal current 8.3 A @ 120 Vac
Display Synoptic LED
