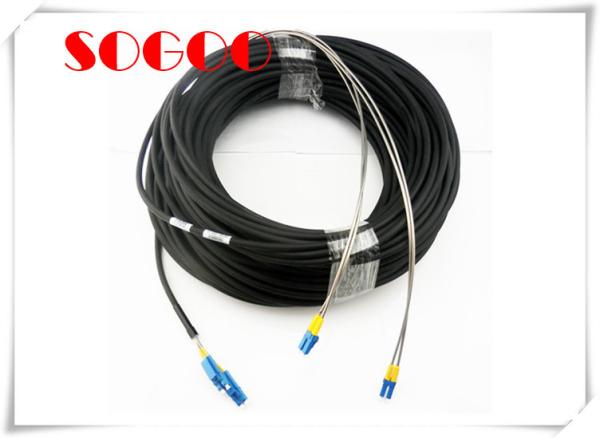

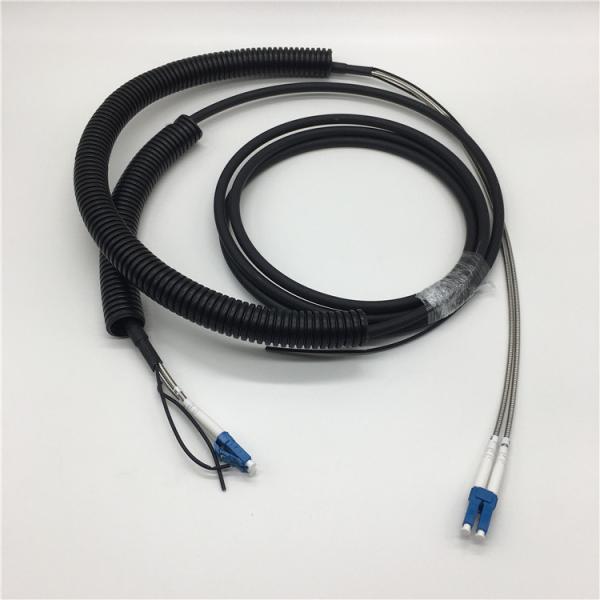

75M CPRI Fiber Cable 2 Cores DLC SM / MM With Both End Socket Protection
75M CPRI Fiber Cable 2 Cores DLC SM / MM With Both End Socket Protection
75M CPRI Fiber Cable 2 Cores DLC SM / MM With Both End Socket Protection
75M CPRI Fiber Cable 2 Cores DLC SM / MM With Both End Socket Protection
75M CPRI Fiber Cable 2 Cores DLC SM / MM With Both End Socket Protection
75M CPRI Fiber Cable 2 Cores DLC SM / MM With Both End Socket Protection
Specifications
Brand Name :
SOGOO
Certification :
CE, RoHS
Place of Origin :
Guangdong, China
MOQ :
10 pcs
Price :
sales@sogootech.com
Payment Terms :
T/T; Paypal; Western Union
Supply Ability :
2000 pcs per week
Delivery Time :
3-20 days depends on quantity
Packaging Details :
10pcs in 1 Anti-static package, standard packing
Product Name :
2 Cores DLC SM / MM CPRI patch cord with both end socket protection
Length :
75M
Connector :
DLC
Insertion loss :
<=0.3 dB
Wire diameter :
7.0 mm
Cable mode :
both end socket protection
Description

2 Cores DLC SM / MM CPRI patch cord with both end socket protection

CPRI DLC to DLC outdoor fiber patch cable, it including 3 &34 cm armoured branch patch cord. It is outdoor Protected Branch Cable. DLC/DLC, GYFJH fiber cable, 2Core, MM,7.0mm dia, SM or MM. Customized length from 10m~ 300m, wide used for 3G 4G 5G base station BBU, RRU, RRH, LTE.

Features:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meet the requirements of relevant standards;
3. The mechanical characteristics of jacket meet the requirements of relevant standards;
4. Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.

Fiber Specification:
Fiber type
50/125,9/125
Core Diameter
50 + 2.5
Core Non-Circularity
<=5.0 %
Cladding Diameter
125.0+1.0um
Cladding Non-Circularity
<=1.0 %
Coating Diameter
245+7
Coating-Cladding Concentricity Error
<=12.0um
Coating Non-Circularity
<=6.0um

Connecton Specification
ITEM
PARAMETER
Connector type
DLC/UPC
Insertion Loss
<=0.3db
Return Loss
>=35db
Fiber mode
Multi-mode,50/125,single mode,9/125
Operating wavelength
850nm, 1300nm,1310,1550nm
Test wavelength
850nm, 1300nm
Repeatability
<=0.1
Interchangeability
<=0.2dB
Durability
<=0.2dB
Fiber Length
1m, 2m….. any length optional.
Length and tolerance
10cm
Operating Temperature
-40C ~ +85C
Storage Temperature
-40C ~ +85C
Our Service

1. Factory Price

2. OEM

3. Fast delivery,low freight

4. Customize service


Specification
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof, dust proof
Low insertion/return loss, steady optical transmitting.
Light weight, waterproof, dustproof, moisture proof, Metal hard housing.


Usage

Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE
