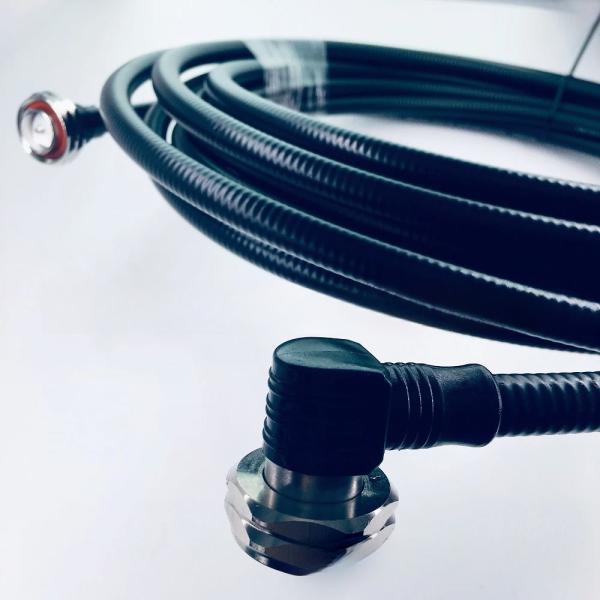

Precision 7/16 DIN Right Angle Coaxial Connector For 1/2 Superflex Feeder Cable
Precision 7/16 DIN Right Angle Coaxial Connector For 1/2 Superflex Feeder Cable
Precision 7/16 DIN Right Angle Coaxial Connector For 1/2 Superflex Feeder Cable
Precision 7/16 DIN Right Angle Coaxial Connector For 1/2 Superflex Feeder Cable
Precision 7/16 DIN Right Angle Coaxial Connector For 1/2 Superflex Feeder Cable
Precision 7/16 DIN Right Angle Coaxial Connector For 1/2 Superflex Feeder Cable
Specifications
Brand Name :
OEM/ODM
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
200 pcs
Price :
sales@sogootech.com
Payment Terms :
Paypal,T/T, Western union
Supply Ability :
100000 pcs per week
Delivery Time :
3~15 days
Packaging Details :
PP bag+ paper carton
Model Number :
7/16 DIN Right Angle
Product Name :
7/16(DIN) Right Angle Coaxial Connector for 1/2" Superflex Feeder cable
Connector :
7/16(DIN) Right Angle
Application :
1/2" Superflex Feeder cable
Material :
Copper
Plating :
Nickel/gold
Key word :
7/16(DIN) Right Angle Coaxial Connector
Description

7/16(DIN) Right Angle Coaxial Connector for 1/2" Feeder/1/2" Superflex Feeder

Precision 7/16 DIN Right Angle Coaxial Connector For 1/2Precision 7/16 DIN Right Angle Coaxial Connector For 1/2

Temperature range

-40~+85°C

Vibration

100m/s2 (10~500Hz)

Impedance

50 OHM

Frequency Range

DC – 11GHz

Working Voltage

2700V max

Break-down Voltage

4000V rms @ sea level

Contact resistance

≤0.4 OHM @ inner contact

≤1.5 OHM @ outer contact

Average power

3KW max

Insulation resistance

≥10000M OHM

VSWR

≤ 1.10

Durability (mating)

≥500 (cycles)

Material & Plating

Body

Brass

Nickel plated / Alloy plated

Inner Pin

Brass

Gold plated

Resilient Contact

Beryllium Copper

Gold plated

Socket Contact

Beryllium or tin bronze

Gold plated

Insulator

PTFE

Crimp Ferrule

Copper alloy

Nickel / Gold plated

O-ring sealing

Silicone Rubber

Our Service
1. Sufficient stock for your prompt dispatch
2. Free Samples can be provided for your evaluation
3. OEM customized services
4. Professioinal foreign trade team, 24 hour online service

Packing Information
Each piece packed in an opp bag,
each opp bag packed in a small inner box,
small boxes put in one standard exporting carton,
then cartons packed in one pallet.

Q&A

1.Can we get a free sample firstly?

Yes,free sample for testing approval is available to our customers.

2.What is your MOQ?

No MOQ for any sample test,at least 10pcs after sample order.

3. Is OEM/ODM Service available?

Yes,We have the strong ability to offer OEM/ODM service. But it will have requirement for the order quantity.

4.Payment Terms: 100% TT in advance, Paypal and Western Union for the sample order

5.Price Terms: FOB Shanghai/Ningbo/ShenZhen

6. Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent

7.Leadtime: Sample order,1-3 business days; mass production 7-15 business days after the deposit.

Look forward to your inquiry to 7/16(DIN) Right Angle Coaxial Connector for 1/2" Feeder/1/2" Superflex Feeder.
