1/2 Superflex RF Jumper Cable With N Type Male To N Type Male RF Connector Oem
1/2 Superflex RF Jumper Cable With N Type Male To N Type Male RF Connector Oem
1/2 Superflex RF Jumper Cable With N Type Male To N Type Male RF Connector Oem
1/2 Superflex RF Jumper Cable With N Type Male To N Type Male RF Connector Oem
1/2 Superflex RF Jumper Cable With N Type Male To N Type Male RF Connector Oem
1/2 Superflex RF Jumper Cable With N Type Male To N Type Male RF Connector Oem
Specifications
Brand Name :
OEM/ODM
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
50 pcs
Price :
sales@sogootech.com
Payment Terms :
Paypal,T/T, Western union
Supply Ability :
2000 pcs per week
Delivery Time :
3~15 days
Packaging Details :
PP bag+ paper carton
Product Name :
1/2" superflex jumper cable with N type male to N type male rf connector oem
Key words :
1/2" superflex jumper cable with N male
Length :
1.5m5M
Compatible :
Huawei ZTE
Connector :
N type male to N type male
Application :
4g wifi base station
Description

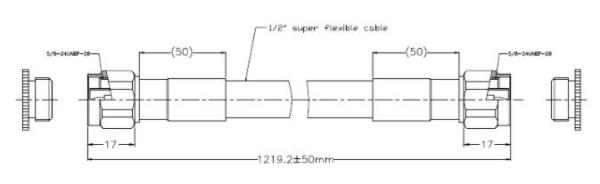

1/2" superflex jumper cable with N type male to N type male rf connector oem

The joining device of N type has whole to join the organization, its characteristic is the power, the capacity is large, Voltage little to stay Bob, three steps it pays to be superior to transfer performance , kind airtight have, Suitable for radio, TV aerial system, jump line join and microwave communication system present cable connection spend mainly.

1/2

Specification:

Electrical Specification
Impedance
50Ω
Frequency range (for connector interface)
DC~18GHz
electric withstanding voltage (at sea level)
≥750-1500V,50Hz (depending on cable)
Working voltage (at sea level)
≥250-500V,50Hz (sea level) / ≥65-125V,50Hz (Height 21000M)
V.S.W.R.
customized
Insulation Resistance
≥5000mΩ
Contact resistance
Inner conductor: ≤1.0mΩ
Outer conductor: ≤0.2mΩ
RF leakage(2-3GHZ)
Flexible: ≥60dB
Semi-rigid cable: ≥100dB

Mechanical Specification
Coupling nut torque
0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs
Coupling nut retention force
≥270N / 60.7 lbs
Contact captivation axial
≥27N / 6.1 lbs
Durability (matings)
≤500
Temperature range
-65°C to +165°C

MATERIAL DATA
Bodies, outer contacts
Beryllium copper--Au plating
Stainless steel--Passivation
Brass--Au plated / ternary alloy plating
Phosphor bronze --Au plating
Pin contacts
Brass/Beryllium copper--Au plating
Socket contacts
Beryllium copper / Phosphor bronze--Au plating
Crimp ferrules
Brass--Au plating
Insulator
PTFE
Gaskets
Silicone rubber

Applicable Standard
MIL-C-39012;

CECC 22110;

IEC 60169-15.

3.3. Environment feature

Waterproof: IP68

Operation temperature range: -40°C to +85°C

Storage temperature range: -70°C to +85°C

Q&A

Q1. Can I have a sample order for this product?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 1-2 days, mass production time needs 1-2 weeks

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q4: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our formal products.

Q5: What about delivery time?

A: 1) Samples: within one week.

2) Goods: 15-20 days usually.

Packing & Delivery

AS customer requirements

Inner packing:Bubble

Outer packing:carton

Foam + Blister + Vacuumize +Carton

Any kind of packing can be mixed.

Delivery:7-15Days after payments

1/21/2

Look forward to your inquiry to 1/2" superflex jumper cable with N type male to N type male rf connector oem.
