600V 2586 RRU DC power cable for Huawei ZTE base stations
600V 2586 RRU DC power cable for Huawei ZTE base stations
600V 2586 RRU DC power cable for Huawei ZTE base stations
600V 2586 RRU DC power cable for Huawei ZTE base stations
600V 2586 RRU DC power cable for Huawei ZTE base stations
600V 2586 RRU DC power cable for Huawei ZTE base stations
600V 2586 RRU DC power cable for Huawei ZTE base stations
600V 2586 RRU DC power cable for Huawei ZTE base stations
Specifications
Brand Name :
Zhongli
Model Number :
D type
Certification :
CE RoHS
Place of Origin :
Guangdong, China
MOQ :
1000m
Price :
sales@sogootech.com
Payment Terms :
T/T; Paypal; Western Union
Supply Ability :
1000000m per week
Delivery Time :
3-20 days depends on quantity
Packaging Details :
Wooden drum
Product name :
600V 2586 RRU DC power cable D type
Keywords :
600V 2586 RRU power cable
Application :
For RRU installation
Size :
2x10AWG / 2x6mm2
Outdoor :
UV resistant
Shielded :
Yes
Description

600V 2586 RRU DC power cable for Huawei ZTE base stations

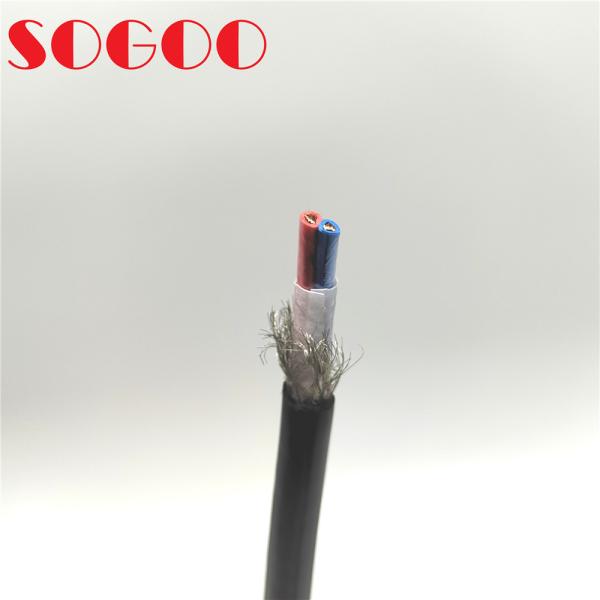

600V 2586 UV resistant RRU power cable, Shielded and flexible or use in telecom equipment. It special for using in telecom equipment. Suitable in areas that require high shield. Black jacket for outdoor use. Black jacket is sunlight resistant , for outdoor use.

600V 2586 RRU DC power cable for Huawei ZTE base stations600V 2586 RRU DC power cable for Huawei ZTE base stations


Insulation color		 Nominal cross-sectional area Conductor construction Conductor diameter (Ref.) Max. conductor DC resistance at 20℃ Nominal insulation
thickness		 Min. insulation thickness Min.insulation resistance at 70℃ Insulation diameter (Ref.) Nominal oversheath thickness Min. oversheath thickness Overall diameter
mm2 pcs/mm(±0.01) mm Ω/km mm mm MΩ.km mm mm mm mm
Blue, black 2x1 32/0.20 1.3 19.5 0.6 0.44 0.011 2.5±0.3 0.6 0.44 7.4±0.4
Blue, black 2x2.5 49/0.25 2.0 7.98 0.8 0.62 0.009 3.8±0.3 1.0 0.75 10.4±0.4
Blue, red 2x4 56/0.30 2.6 4.95 0.8 0.62 0.007 4.3±0.3 1.2 0.92 12.0±0.5
Blue, black 2x4 56/0.30 2.6 4.95 0.8 0.62 0.007 4.3±0.3 1.2 0.92 12.0±0.5
Light blue, gray 2x4 56/0.30 2.6 4.95 0.8 0.62 0.007 4.3±0.3 1.2 0.92 12.0±0.5
Blue, black 2x6 84/0.30 3.2 3.30 0.8 0.62 / 5.2±0.3 1.2 0.92 14.5±0.5
Blue, red 2x6 84/0.30 3.2 3.30 0.8 0.62 / 5.2±0.3 1.2 0.92 14.5±0.5
Light blue, gray 2x6 84/0.30 3.2 3.30 0.8 0.62 / 5.2±0.3 1.2 0.92 14.5±0.5
Blue, black 2x10 77/0.40 4.4 1.91 1.0 0.80 / 6.7±0.3 1.2 0.92 17.0±0.5
Blue, red 2x10 77/0.40 4.4 1.91 1.0 0.80 / 6.7±0.3 1.2 0.92 17.0±0.5
Light blue, gray 2x10 77/0.40 4.4 1.91 1.0 0.80 / 6.7±0.3 1.2 0.92 17.0±0.5
Blue, black 2x16 119/0.40 5.4 1.21 1.0 0.80 / 7.7±0.5 1.4 1.09 19.0±0.5
Blue, red 2x16 119/0.40 5.4 1.21 1.0 0.80 / 7.7±0.5 1.4 1.09 19.0±0.5
Light blue, gray 2x16 119/0.40 5.4 1.21 1.0 0.80 / 7.7±0.5 1.4 1.09 19.0±0.5
Blue,brown,
yellow/green		 3x1 32/0.20 1.3 19.5 0.6 0.44 0.011 2.5±0.3 0.8 0.58 8.5±1.0
Red,white,green 3x1.5 30/0.25 1.6 13.3 0.7 0.53 0.009 3.0±0.3 0.8 0.58 9.0±1.0
Blue,brown,
yellow/green		 3x1.5 30/0.25 1.6 13.3 0.7 0.53 0.009 3.0±0.3 0.8 0.58 9.0±1.0
Red,white,green 3x2.5 49/0.25 2.0 7.98 0.8 0.62 0.009 3.8±0.3 1.0 0.75 11.3±0.5
Blue,brown,
gray,black		 4x1.5 30/0.25 1.6 13.3 0.7 0.53 0.009 3.0±0.3 1.0 0.75 10.3±0.4
Blue, blue,red,red 4x2.5 49/0.25 2.0 7.98 0.8 0.62 0.009 3.8±0.3 1.1 0.84 12.3±0.5

Shipping

If the quantity of order is not very big ,we could send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS

If order is big,we will use air shipment or sea shipment.

Packaging & Delivery

Packaging Details:by customer's request

Delivery time:5-10 days

Our Services

1. Professional manufacturer, 100% tested.

2. Customers solutions in days, not weeks.

3. Warmly services with careful attentions.

4. Can provide your specific inquiry within 24 hours.

5. Save much costs, bring more benefit for customer to expand business.

Look forward to your inquiry to our 600V 2586 RRU DC power cable for Huawei ZTE base stations.
