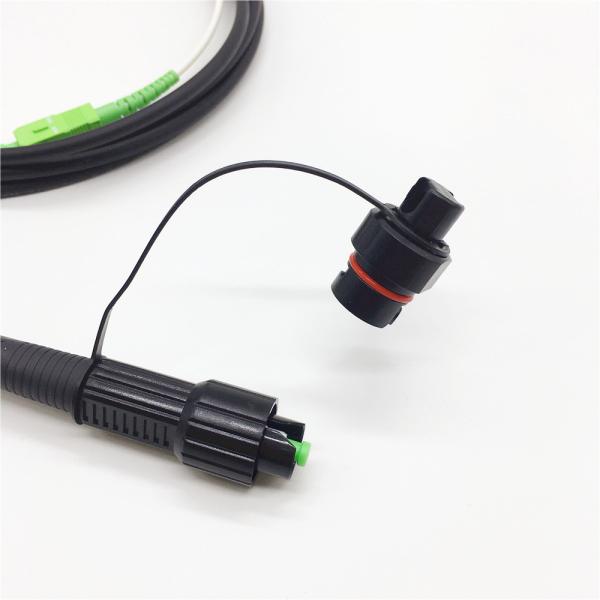

Mini SC Outdoor Optical CPRI Fiber Cable FTTA Fiber Cable Huawei Outdoor Patch Cord
Mini SC Outdoor Optical CPRI Fiber Cable FTTA Fiber Cable Huawei Outdoor Patch Cord
Mini SC Outdoor Optical CPRI Fiber Cable FTTA Fiber Cable Huawei Outdoor Patch Cord
Mini SC Outdoor Optical CPRI Fiber Cable FTTA Fiber Cable Huawei Outdoor Patch Cord
Mini SC Outdoor Optical CPRI Fiber Cable FTTA Fiber Cable Huawei Outdoor Patch Cord
Mini SC Outdoor Optical CPRI Fiber Cable FTTA Fiber Cable Huawei Outdoor Patch Cord
Specifications
Brand Name :
SOGOO
Certification :
CE, RoHS
Place of Origin :
Guangdong, China
MOQ :
10 pcs
Price :
sales@sogootech.com
Payment Terms :
T/T; Paypal; Western Union
Supply Ability :
2000 pcs per week
Delivery Time :
3-20 days depends on quantity
Packaging Details :
10pcs in 1 Anti-static package, standard packing
Product Name :
Mini SC Optical Patch Cord
Key words :
FTTA Fiber Cable Huawei Outdoor Patch Cord
Connector :
LC
Insertion loss :
<=0.3 dB
Wire diameter :
7.0 mm
Length :
Customized
Description

Outdoor Optical Patch Cord FTTA Fiber Cable Huawei Outdoor Patch Cord
MINI SC Compatible FTTA outdoor patch cord assemblies provide an cost effective, easy, environmental seal and mechanical protection for 1 fibers simplex SC style connections. Inside cover can protect ferrule end face far away scratch when mating with receptacle; Special fool-proofing design equal to HUAWEI Mini SC connector has blind-mating function; One hand Bayonet-style mechanical latch. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch. It provides quick installation solutions and has good performance on mating receptacle / Adapter. Cable can be armoured or non-amoured. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications.

Model SM MM
Fiber Optic cable 1 core
Mini SC SX compatiable Connector Polish PC, APC
Insertion Loss Standard type less than 0.25dB Less than 0.5dB
Insertion loss Elite type Less than 0.2dB Less than 0.3dB
Return Loss PC >50dB, APC>60dB >20dB
Durability (500 matings) less than 0.2dB
Pulling Force (N) 450N
Cable OD 2.0x5.0mm, 5.0mm, 7.0mm option


Features :
1. Cost effective solution for in house termination
2. IP67 Water immersion and Dust protection for hash environment ·
3. Chemical Resistance ·
4. Simple assembly requiring no special tools ·
5. Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
6. Durable mechanical mating, minimum of 500 matings
7. Wide range of operational temperature for outside plant -40 to+85°C
8. SC/APC IL<0.3 typically.
9.100% optically tested to ensure quality performance assemblies.

Application :
1; Telecom networks 5G tower;
2; CATV, LAN&WAN.
3; Broadband;
4; CPRI, FTTP, FTTA

Our Service:

1.Your inquiry related to our products or prices will be replied in 24hrs.

2.Well-trained and experienced staffs to answer all your inquries in fluent English.

3.OEM&ODM, any your customized Antenna we can help you to design and put into product.

4.Offered for your unique design and some our current models.

5.Protection of your sales area,ideas of design and all your private information.


Terms of Shipment:

  • Before ordering please contact us to confirm your preferred shipment method.
  • Items are only shipped after payment is confirmed.

Shipping Methods:

  • By sea
  • By air
  • By courier

Mini SC Outdoor Optical CPRI Fiber Cable FTTA Fiber Cable Huawei Outdoor Patch CordMini SC Outdoor Optical CPRI Fiber Cable FTTA Fiber Cable Huawei Outdoor Patch CordMini SC Outdoor Optical CPRI Fiber Cable FTTA Fiber Cable Huawei Outdoor Patch Cord
