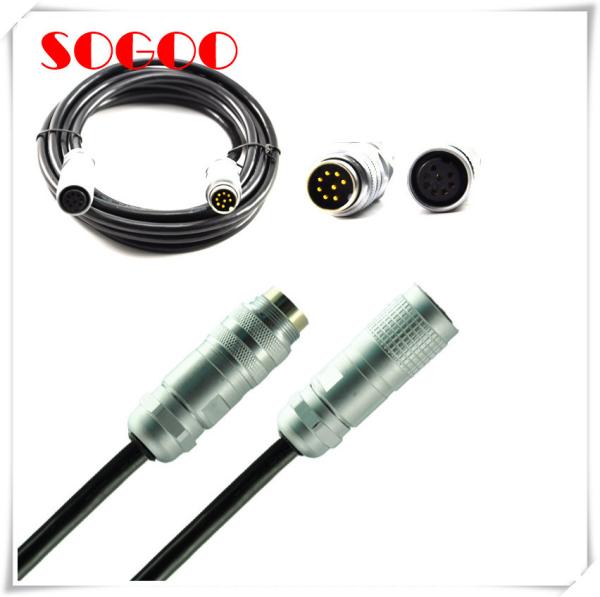

Telecommunication AISG Connector / 6 Pin 8 Pin Straight Plug M16 Cable Assembly
Telecommunication AISG Connector / 6 Pin 8 Pin Straight Plug M16 Cable Assembly
Telecommunication AISG Connector / 6 Pin 8 Pin Straight Plug M16 Cable Assembly
Telecommunication AISG Connector / 6 Pin 8 Pin Straight Plug M16 Cable Assembly
Telecommunication AISG Connector / 6 Pin 8 Pin Straight Plug M16 Cable Assembly
Telecommunication AISG Connector / 6 Pin 8 Pin Straight Plug M16 Cable Assembly
Specifications
Brand Name :
OEM/ODM
Model Number :
OEM
Certification :
CE& ISO
Place of Origin :
China
MOQ :
10 pcs
Price :
sales@sogootech.com
Payment Terms :
Paypal,T/T, Western union
Supply Ability :
1000pcs per day
Delivery Time :
3-20 days depends on quantity
Packaging Details :
PP bag+ paper carton
Product name :
AISG Cable assembly
Pin Range :
6/8 pins
Connector :
M16
Length :
0.5m~100m
Plug :
Straight
Application :
telecommunication
Description

AISG Connector M16 6Pin 8Pin Waterproof Plug Binder M16 Cable Assembly

M16 connector cable with M16 locking are ideally suited for factory automation, process control, industrial instrumentation, and commercial electronics. Connectors have industry-standard A-coding and have locking sleeves for hand-tightening or torquing of connections. Plastic, metal and stainless steel shells are available, some with UL approvals. Shielded versions are shielded 360° with a shielding ring or iris spring. Contacts range from 3 to 24 per connector.

Technical Characteristics

Temperature Range

Solder,screw:-40℃/ +80℃

Screw damp,biatec:-25℃/+80℃

Moulded -25℃/+85℃
Mechnical operation >100 mating cycles

Rated voltage

Impulse voltage

60V(30V)UL

2500V
Pollution degree 3
Rated current 4A
Contact resistance ≤8mΩ
Insulation resistance ≥500MΩ
Protection degree IP67
Standard IEC61076-2-101
Material:
Contact plating Au(Gold)
Material of housing PBT/PA/CuZn(brass)
Cable material PVC/PUR (cable length customized)
Wire gauge

Solder 0.25mm(AWG24)

Screw 0.14mm-0.5mm(AWG26-20)

Biatec 0.14mm-0.38mm(AWG26-22)
Shielding With or without

Sogoo Cables

· We can customize the cables according to your requirements, you can tell me what you want, and we can do it

· We have good price for big quantity connectors and cables, f you are interested in them, please contact us, thank you!

OEM service

  • According to your sample.
  • According to your drawing.

Q&A

Q:Are Samples Available?Any charges?

Yes, samples in stock are available, free for real samples, but freight cost. New Designs need custom material cost.

Hot Sell Micro Usb 2.0 Data Charging 3M Cable,Custom UL 2725 Right Angle Micro Usb Charging Cable

Q: How can we get a quote?

Please offer the specification of the product, such as material, connectors,wires,color, quantity, etc.

Hot Sell Micro Usb 2.0 Data Charging 3M Cable,Custom UL 2725 Right Angle Micro Usb Charging Cable

Q: Can you help with the design?

New design, Custom made, are available, our engineers with help with all technics.

Hot Sell Cable

Q: What's the payment term?

Accept T/T, Western Union, Paypal & Cash.

Q: May i have new sample made with my design for confirmation?

Yes. We can do the high quality sample same as your design for confirmation.

Q: What about the lead time?

It depends on the products. Normally 10 to 15 workdays after confirmation of design file and remittance.

Q: What shipping method can i choose?

DHL, UPS, TNT, FEDEX, BY sea, etc.

Q: Do you have MOQ?

Yes. The MOQ depends on the specifications of the type you want.

Welcome to your inquiry about AISG Connector M16 6Pin 8Pin Waterproof Plug Binder M16 Cable Assembly.
