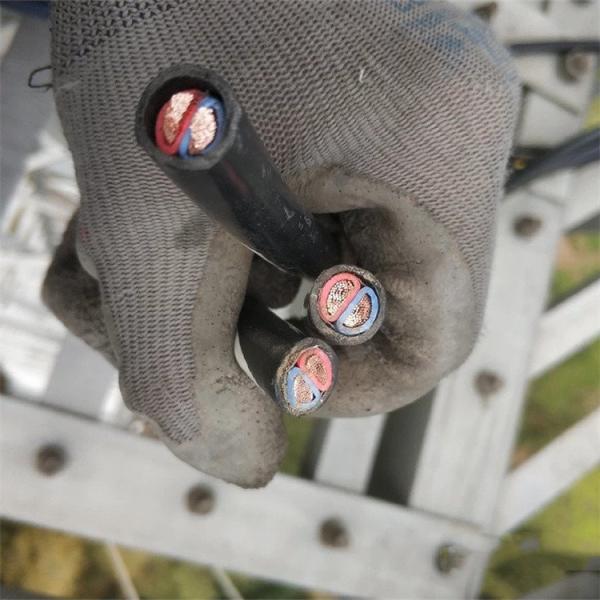

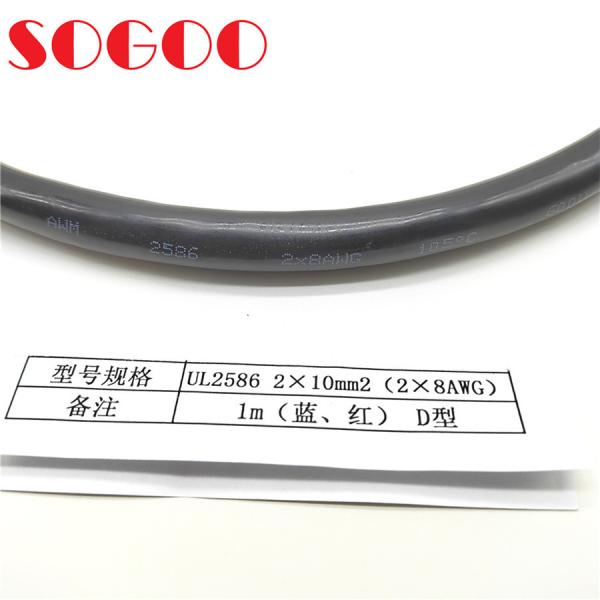

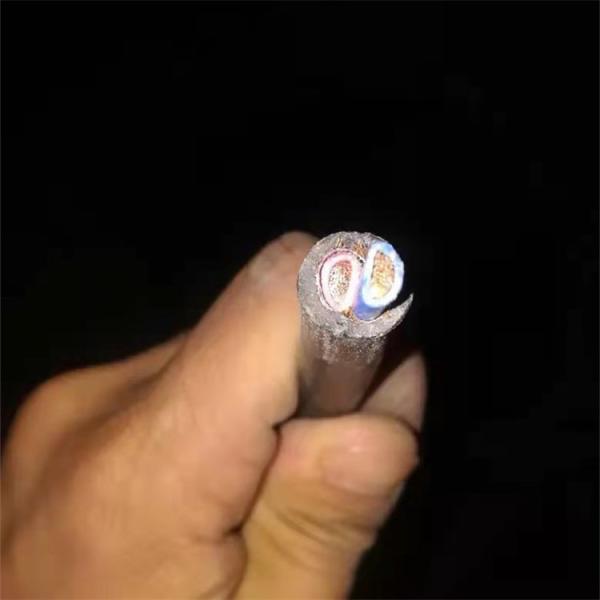

600V 2586 RRU Power Cable D Type 2x10AWG / 2x6mm² Shield For Outdoor

600V 2586 RRU DC power cable D type 2x10AWG / 2x6mm2 , 100% qualified with Huawei, ZTE RRU. It is shield, Flame resisted, UV-resisted power cable for outdoor RRU application.

Application:base station

Conductor Material:Copper

Conductor Type:Stranded

Insulation Material:PVC

Standard:IEC 60227, IEC60332-1

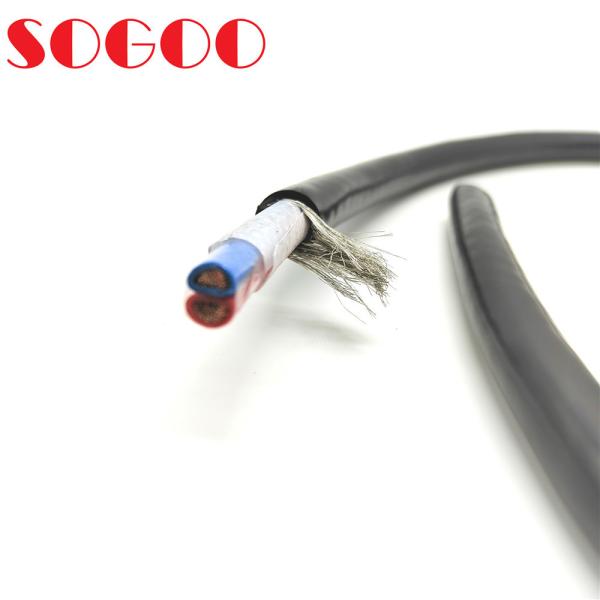

Shield:Copper Wire Braid

Conductor:Flexible Copper class5

Jacket:ZA PVC

Temperature range:90degree

Size:2×8 AWG 2×12 AWG

Usage:Telecom cable RRU BBU

Rated Voltage:300V ZA-RVVP

Characteristics:DC Power Cable

Electric characteristic
Item sort			Std. limited	Test result
The min insulation resistance, 70 ℃ (M Ω km).			refer to technical parameters	Pass
Dielectric Strength (kV/min)			2.0kV/5min	Pass
Max. DC resistance at 20℃ (Ω/km)			refer to technical parameters	Pass
Mechanical characteristic&Reliability
Aging Test			Std. limited	/Testing
Insulation property
Before Aging	Tensile Strength(Mpa)		≥10	Pass
	Elongation(%)		≥150	Pass
Insulation aging conditions			80℃(±2)×168 hrs
After Aging	Tensile strength rate of change(%)		≤ ±20	Pass
	Elongation rate of change (%)		≤ ±20	Pass
sheath property
Before Aging	Tensile Strength(Mpa)		≥10	Pass
	Elongation(%)		≥150	Pass
Sheath aging conditions			80℃(±2)×168 hrs
After Aging	Tensile strength rate of change(%)		≤ ±20	Pass
	Eelongation rate of change (%)		≤ ±20	Pass
Low-temperature impact			-40℃±2	Pass
Thermal Shock Test			150℃(±2) * 1h	Pass
Simulated outdoor test			Meet UL1581 outdoor test

RoHS

Key technical parameters

Shipping and payments:

Door to Door:By International Express(DHL,TNT,Fedex,UPS,EMS) 3-5 business days

Airport to Airport:By Air(Customer need contact local logistic company for custom clearance)

Seaport to Seaport: for large quantity order.

If you want to know more about 2×8 AWG 2×12 AWG UL2464 Shielding RRU Power Cable, send us your inquiry by email.
