DLC MM GYFJH 2A1a LSZH 30m 7.0mm Optical Cable Assembly for 3G/4G base station

Application:

Optical connector is used from indoor to outdoor. Especially in 3G/4G communication network,base-station is applied more and more, building Base Band Unit (BBU) connects Radio Remote Unit (RRU) is used for duplex outdoor cable. Our outdoor cable connector is the leading solution for harsh environment.

Features:

l IP65 protection,salt-mist proof

l Easy,reliable and cost-effective installation

l The connectors of Slide- A is Duplex LC and Side B can be LC, SC or FC

l Thread structure guarantees the trusted connection

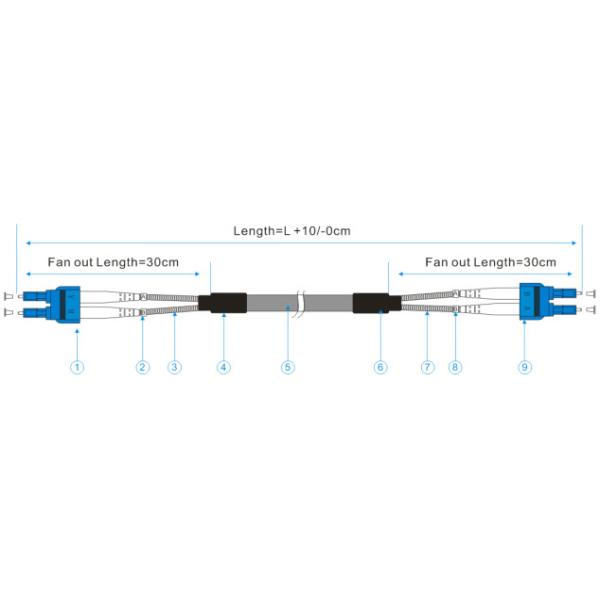

Specifications for fiber optic patchcord:

1/9: LC/UPC duplex 3.0mm connector , blue housing, white boot,with blue clip

2/8: cable mark : A/B (A=A,B=B)

3/7: 3.0mm armoured tube

1/6: fan out kit with The heat shrinkable tube

2: Cable: 7.0mm, LSZH jacket, black color(Fiber G657A1,9/125)

**Length=xxM

Parameters:

Fibers (9/125, G657A1)

Test wavelength: 1310&1550nm

Insertion Loss (Max): -0.3dB

Return Loss (RL): >50dB

Durability: <0.1dB typical change,1000 repeatability

Cable specification:

Cable Parameters:

Mechanical and Environmental Characteristics:

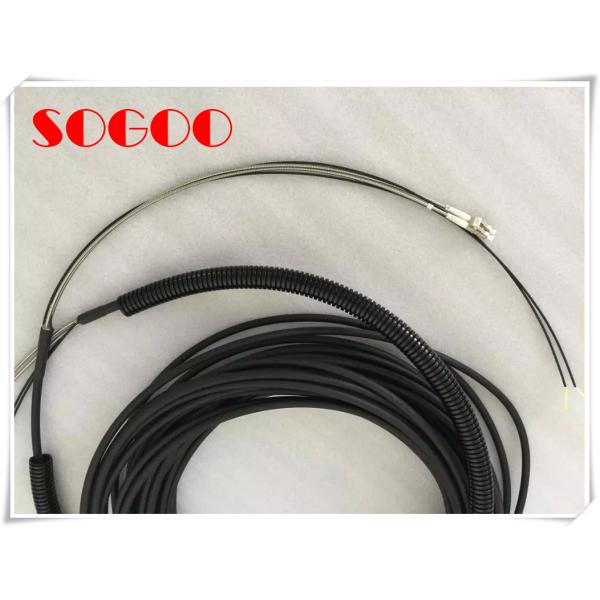

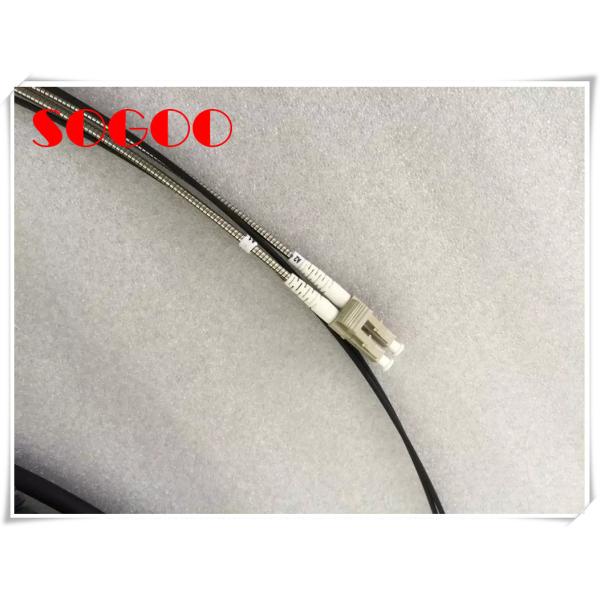

Pictures:

FAQ:

How will you control the quality of the fiber optic cable?

We will check each details of the cable.
Sheath: material, color, thickness, printing, feeling.
Cable structure: as per the spec of the cable.
OTDR report for each fiber in the cable.

How will you protect the fiber when packing?

We will use the exporting wodden reel outside.
With EPE foam inside to protect the fiber, and make sure the reel is user-friendly,
easy to load and install.

How will the goods be shipped?

By sea if the goods is not in urgent need.
By air if the goods is needed urgently.
We have best choices of forwarder for both sea and air.

Contact us

Look forward to your inquiry on DLC MM GYFJH 2A1a LSZH 30m 7.0mm Optical Cable Assembly for 3G/4G base station.
