BV16 Square Copper Cable Coax Grounding Kit For 7/8 Feeder Cable
BV16 Square Copper Cable Coax Grounding Kit For 7/8 Feeder Cable
BV16 Square Copper Cable Coax Grounding Kit For 7/8 Feeder Cable
BV16 Square Copper Cable Coax Grounding Kit For 7/8 Feeder Cable
BV16 Square Copper Cable Coax Grounding Kit For 7/8 Feeder Cable
BV16 Square Copper Cable Coax Grounding Kit For 7/8 Feeder Cable
BV16 Square Copper Cable Coax Grounding Kit For 7/8 Feeder Cable
BV16 Square Copper Cable Coax Grounding Kit For 7/8 Feeder Cable
Specifications
Brand Name :
OEM/ODM
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
50 pcs
Price :
sales@sogootech.com
Payment Terms :
Paypal,T/T, Western union
Supply Ability :
100000 pcs per week
Delivery Time :
3-20 days depends on quantity
Packaging Details :
PP bag+ paper carton
Product Name :
buckle grounding kit for 7/8" feeder cable
Length :
0.5~1m
Compatible :
7/8" Feeder Cable
Warranty :
1 year
Application :
BBU RRU
Cable :
buckle grounding kit
Description

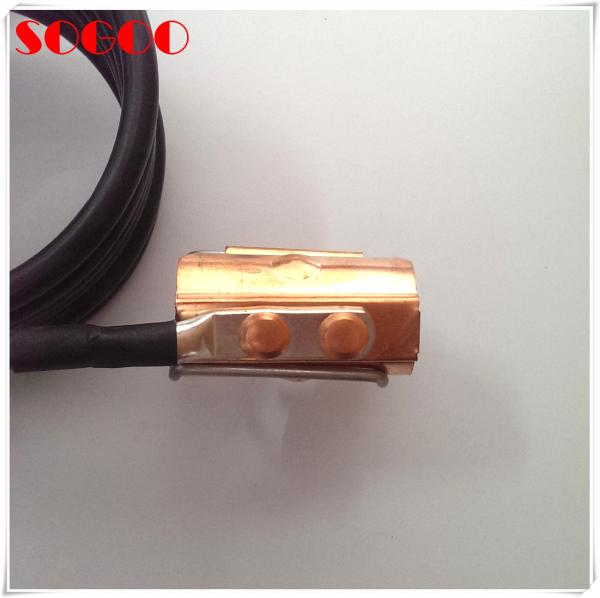

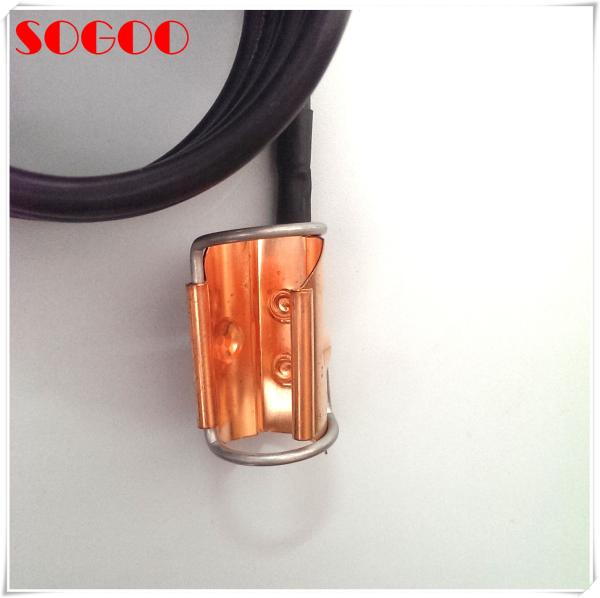

16 square copper cable buckle grounding kit for 7/8" feeder cable

It's suit for 7/8" feeder cable in the communication base station. Feeder grounding kit is suit for the feed system, grounding device respectively located in the central closest to the position of the antenna tower, tower cable bend at the bottom of the front, and on the device shielding, in central tower with high tower is needs to add with grounding device.After installing the feeder ground card, the antenna feed system and the communication equipment in the machine room can be protected from the damage of lightning.

The product from the thunder and lightning protection grounding bus bar can defense is as high as 125 kva, its high quality copper structure can be moisture and moisture absorption, components can be additionally equipped with tape at the same time, the installation requires no additional tools, on the basis of convenient shorten the installation time.

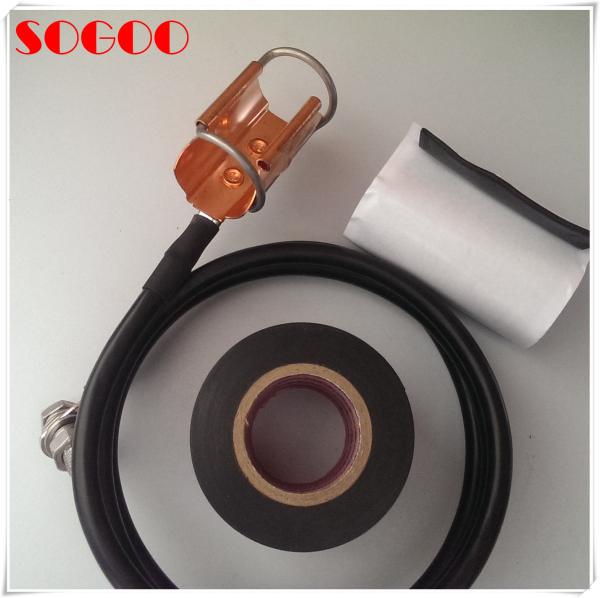

Component part:

No Name Type Qty Note
1 Grounding kit 7/8" 1 customer's requiremet
2 Grounding Cable 16² copper cable 1 3M
3 Bolt M8 X 25 1 Stainless steel
4 Nut M8 1 Stainless steel
5 Washer ø8 1 Stainless steel
6 Spring Washer ø8 1 Stainless steel

Grounding clamp's performance index:

component electrical property mechanical property instruction

clamp: stainless steel

connecting piece:T2 pure copper: standard configuration0.6, 0.8, 1m

Bolt and nut: stainless steel

layering: stainless steel

current:8/20μS≥70KA

voltage:50Hz 30KV

groundingresistance:≤4mΩ

stainless steel: smooth

rubber: clean, no damage and bubbles, density consistent

grounding line: no crack and aging

screw, bolt and nut: clean and no crack

layering: stainless steel

 quick and easy to install and appearance neat

Exempt gum type grounding clamp:

serial number product instruction
SY-DK-1 outdoor 1/2"feeder grounding clamp
SY-DK-2 outdoor 7/8"feeder grounding clamp
SY-DK-3 outdoor 11/4"feeder grounding clamp
SY-DK-4 outdoor 15/8"feeder grounding clamp
SY-DK-5 outdoor 7/8"feeder grounding clamp

Electric Property:

Current 8/20 μs >70KA
Voltage 50Hz 30kv
Grounding Resistance ≤ 4mΩ

Mechanical capacity:

  1. Stainless steel material: smooth surface, no burr and crack, there is no obvious inclusion and sink mark
  2. rubber material: clean surface, no injury and bubble
  3. consistent density grounding wire: uniform insulating barrier, no crack and surface aging
  4. Bolt & nut: clean surface, no crack and rust staining

BV16 Square Copper Cable Coax Grounding Kit For 7/8BV16 Square Copper Cable Coax Grounding Kit For 7/8

Look forward to your inquiry on 16 square copper cable buckle grounding kit for 7/8" feeder cable.
