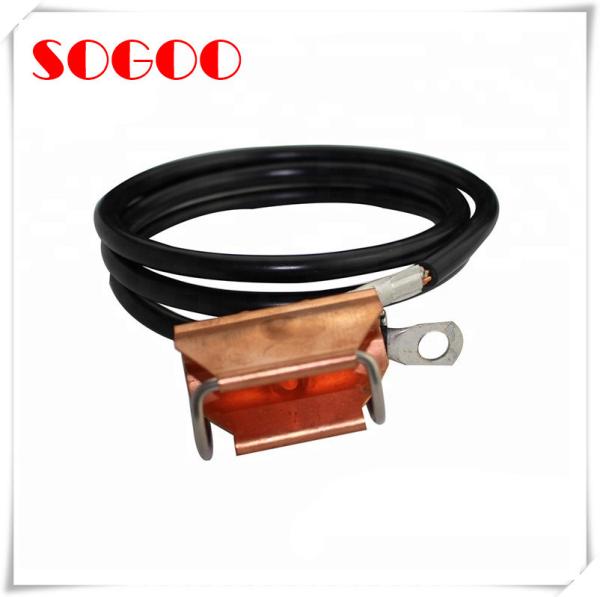

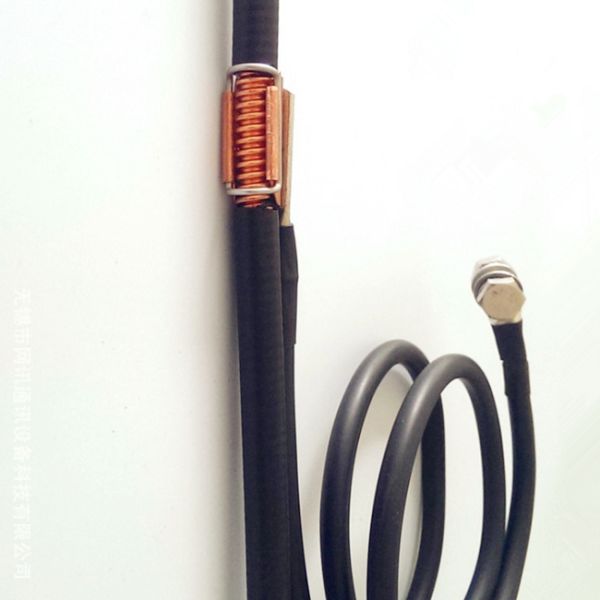

Ring Buckle Type Coaxial Cable Grounding Kit Sus 304 Metal 1 Year Warranty
Ring Buckle Type Coaxial Cable Grounding Kit Sus 304 Metal 1 Year Warranty
Ring Buckle Type Coaxial Cable Grounding Kit Sus 304 Metal 1 Year Warranty
Ring Buckle Type Coaxial Cable Grounding Kit Sus 304 Metal 1 Year Warranty
Specifications
Brand Name :
OEM/ODM
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
50 pcs
Price :
sales@sogootech.com
Payment Terms :
Paypal,T/T, Western union
Supply Ability :
100000 pcs per week
Delivery Time :
3-20 days depends on quantity
Packaging Details :
PP bag+ paper carton
Product Name :
Ring Buckle Type Coaxial Cable Grounding Kit
Length :
0.6~1m
Compatible :
Ring Buckle Type Coaxial Cable
Warranty :
1 year
Application :
telecom installation
Cable :
Feeder cable 1/2'' 7/8'' 11/4'' 15/8'' 7/8"
Description

Ring Buckle Type Coaxial Cable Grounding Kit Sus 304 Metal 1 Year Warranty

Ring Buckle Type Coaxial Cable Grounding Kit suit for grounding binding of all kinds cable: 1/4",1/2",3/8",7/8",5/4",1-5/8", etc.

Component part:

Clamp: Stainless steel

Connector: T2 cooper grounding wire, standard configuration 0.6, 0.8, 1m

The length can made according to the customer’s requirement

Bolt & nut: stainless steel

Batten: stainless steel

Technical parameters:

Nominal impulse discharge current 70KA
Insulation resistance 500MΩ
Grounding resistance ≤5mΩ
Inner contact material Tinned braid copper
Grounding cable AW6/16mm2
Waterproofing IP67

Clip-on grounding kit are an advanced type for coaxial cable grounding, providing an easy installation as well as dependable protection of coaxial cable system. The designed clip design and pre-formed strap allow the clip-on ground kits to be easily slipped over the coaxial cable's outer conductor.

The latch was optimized to provide a secure fix maximizing performance by ensuring proper contact surface area and pressure.

Framework type grounding kit is compact design for outdoor coaxial cable's (corrugated or braid) grounding. With Tinned copper strip & butyl seal, framework type grounding kit offers Quick installation, good waterproofing & cost efficiency.

Standard Grounding Kit can be used for 1/4 in and 3/8 in corrugated & braided coaxial cable. It was designed according to Commscope (Andrew) GK-242948. Features of this product are installed by the cable ties. It allows it can be used for at least two types of coaxial cable.

Small Universal Grounding Kit is designed according to Commscope (Andrew) GK-SUNV. It's small and light, can be used for coaxial cable under 0.6 in.

Bolt-on Grounding Kits are used for 3/8" in corrugated & braided coaxial cable. It requires wrench when installing. That makes it perfect contact area. Moreover, we can make it for different cable.

Universal Grounding Kit can be used for all coaxial cable. It consist of a long thick copper strap. You can cut it according to the coaxial cable you will used for.

Ring Buckle Type Coaxial Cable Grounding Kit Sus 304 Metal 1 Year Warranty

Look forward to your inquiry on Ring buckle type coax cable grounding kits for cable 1/2'' 7/8'' 11/4'' 15/8'' 7/8" sus 304 metal grounding kits.
