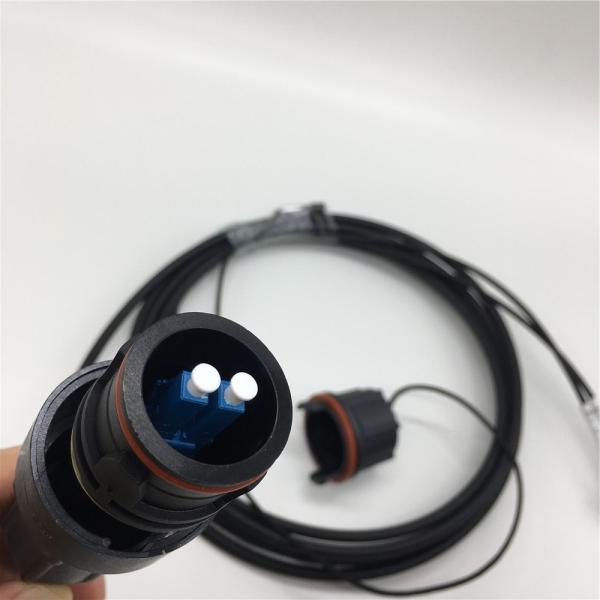

Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord
Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord
Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord
Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord
Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord
Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord
Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord
Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord
Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord
Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord
Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord
Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord
Specifications
Brand Name :
SOGOO
Certification :
CE, RoHS
Place of Origin :
Guangdong, China
MOQ :
10 pcs
Price :
sales@sogootech.com
Payment Terms :
T/T; Paypal; Western Union
Supply Ability :
2000 pcs per week
Delivery Time :
3-20 days depends on quantity
Packaging Details :
10pcs in 1 Anti-static package, standard packing
Model Number :
ERICSSON RPM2533577
Product Name :
FULLAXS Outdoor Fiber Patch Cord
Key words :
FULLAXS Fiber Patch Cord
Connector :
FULLAXS LC
Insertion loss :
<=0.3 dB
Structure :
Full Axs
Length :
10m, 20m, 50m, 100m
HS Code :
854470000
Application :
Wimax and Lte Base Stations Remote Radio Heads
Description

Fullaxs-LC Outdoor IP67 Waterproof Fiber Patch Cord Fiber Optic Patch Cable

Next generation WIMAX and Long Term Evolution (LTE) Fiber To The Antenna (FTTA) connectivity designs require rugged cable assemblies for outdoor use. For direct connection these cable assemblies need to plug directly into the optical transceivers though a bulkhead construction. For this specific application the connector design will need to accommodate for a large tolerance in Z-direction. Furthermore the connector shell needs to allow for easy one handed mating. The FullAXS connector system meets this requirement by allowing for a large Z-direction tolerance while also offering the benefit of one-hand installation of the connector shell. With this new product offering, users can also conveniently remove and replace transceivers through a cutout in the bulkhead that completely eliminates the need to open the entire remote radio box and expose its contents to hazardous weather conditions. For the optical connection, the connector system includes an industry-standard duplex LC interface for fast mating with all LC duplex SFP transceivers.

The FullAXS connector can be designed for either single mode or multimode optical transmission applications. Use the cable assembly firmly establish themselves through the bulkhead is directly inserted into the optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application.


Cable Structure:

Type1: 2×Tight Buffer(0.9mm)+Kevlar+Jacket OD=4.8mm;

Cable Count OD (mm) Weight Tensile strength General attenuation Minimal Bending radius Storage temperature
Short term Long term Singlemode Multimode
2 4.8±0.1 20kg 1000N 600N 1310nm ≤0.4dB/km 850nm ≤3.0dB/km 30D -20℃~+70℃
1550nm ≤0.3dB/km 1300nm ≤1.0dB/km

  • Type2: 2×Tight Buffer(0.9mm)+Kevlar+Spiral +Jacket OD=4.8mm
Cable Count OD (mm) Weight Tensile strength General attenuation Minimal Bending radius Storage temperature
Short term Long term Singlemode Multimode
2 4.8±0.1 35kg 1000N 600N 1310nm ≤0.4dB/km 850nm ≤3.0dB/km 30D -20℃~+70℃
1550nm ≤0.3dB/km 1300nm ≤1.0dB/km
Drawing

Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord

Application :

1; Telecom networks tower;

2; CATV, LAN&WAN.

3; WIMAX and LTE base station, outdoor

4; CPRI, FTTP, FTTA

More Pictures

Fullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch CordFullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch CordFullaxs-LC Outdoor Armoured Fibre Optic Cable IP67 Waterproof Fiber Patch Cord
