Huawei embedded power supply ETP23003-C1A1 intelligent magic box high power AC to DC 48V150A
Huawei embedded power supply ETP23003-C1A1 intelligent magic box high power AC to DC 48V150A
Huawei embedded power supply ETP23003-C1A1 intelligent magic box high power AC to DC 48V150A
Huawei embedded power supply ETP23003-C1A1 intelligent magic box high power AC to DC 48V150A
Huawei embedded power supply ETP23003-C1A1 intelligent magic box high power AC to DC 48V150A
Huawei embedded power supply ETP23003-C1A1 intelligent magic box high power AC to DC 48V150A
Specifications
Brand Name :
Huawei
Model Number :
ETP23003-C1A1
Certification :
UL, RoHS
Place of Origin :
China
MOQ :
2 pcs
Price :
sales@sogootelecom.com
Payment Terms :
T/T
Supply Ability :
1000pcs
Delivery Time :
5-8 working days.
Packaging Details :
Carton
Product Name :
Huawei ETP23003-C1A1 power supply
INPUT :
100~240v: 50/60Hz
OUTPUT :
48V150A
Application :
Huawei ETP23003-C1A1 power system
Description

Huawei embedded power supply ETP23003-C1A1 intelligent magic box high power AC to DC 48V150A

Huawei Etp23003-c1a1 is a new type of AC & DC embedded power supply developed by Huawei. It is based on an integrated, full scene power supply platform and adopts modular hardware design. Support solar energy, electricity and other energy access and scheduling, support multi standard DC and AC output.

The maximum DC power of etp23003-c1a1 is 8kw, the maximum AC power is 3KVA, the height is 1U, it supports 19 inch rack installation, supports IP networking, and is easy to integrate and install.

Application

  • It is suitable for "no electricity, poor electricity, good electricity" area.
  • Power the "perception" devices, such as cameras, sensors, etc
  • Power supply for "communication" equipment, such as wireless, transmission, etc
  • Power "it" equipment, such as server, storage, router, etc

product mix

Huawei embedded power supply ETP23003-C1A1 intelligent magic box high power AC to DC 48V150A

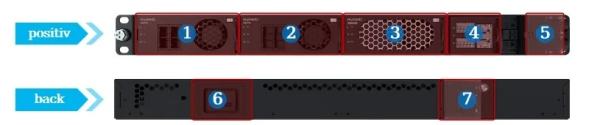

number name describe

positiv

 1`2 Slot position of rectifier module

Compatibility:

AC-DC module: 3kw rectifier module, 4kw rectifier module

Solar module: 3kw SSU, 4kw SSU, 4kw PCU

Multi standard low voltage power supply module: MIMO module (12 / 24 / 36V DC; 24V AC)

Intelligent distribution expansion module: idcdu module
3 Inverter module slot

Compatibility:

DC-AC inverter module: 3KVA inverter module

Multi standard low voltage power supply module: MIMO module (12 / 24 / 36V DC; 24V AC)

Intelligent distribution expansion module: idcdu module
4 Main control module SMU11B Main control unit
5 Battery bypass 1 × 150 A OT terminal
back 6 AC output 1 x 16A Socket
7 AC input Single phase AC input, 48A max

Product features

  • High power density Maximum 8kw DC & 3KVA AC, height 1U.
  • Unified intelligent power supply Support solar energy, electricity multiple energy input, multi standard output (AC: 24 / 220 V, DC: 12 / 24 / 36 / 48 / 57 V).
  • Module hot swap maintenance Rectifier module and inverter module support hot swap.
  • intelligent management Online remote operation and maintenance, reduce the cost of station and operation and maintenance.

product type ETP23003-C1A1
Basic parameters size (W × D × H) 482.6 mm × 330 mm × 1U
weight ≤ 5 kg (Rectifier module not included)
Installation method 19 inch rack mount
Wiring mode Front and back routing
Maintenance mode Pre maintenance
Protection level IP20
AC input AC system single-phase 85-300 Vac
frequency 45Hz~66Hz,rated 50/60 Hz
Input current Maximum input current 48A
AC output capacity

52V DC ≤ input voltage< 57V DC,3kVA

43.2 V DC ≤ input voltage < 52V DC,2.5kVA
output voltage single-phase 230V AC,200/208/220/230/240V AC Can be set*
output frequency 50Hz/60Hz
AC branch 1 x 16A Socket
AC lightning protection 3KA/5kA (8/20 μs)
DC output capacity 8kW
output voltage 42V~58V DC,rated 53.5V DC
Battery bypass 1 × 150 A O Tterminal
DC lightning protection 10kA/20kA (8/20μs)

Huawei embedded power supply ETP23003-C1A1 intelligent magic box high power AC to DC 48V150A

Lead time:
We have a lot of stock, but we cannot guarantee that the product will still be in stock when you place your order. Therefore, please check with our sales team before placing your order. If the product is in stock, we can send it as soon as possible after receiving payment. If the quantity is large, our sales team will also advise you on the lead time.
Trade terms:
EXW / CIF / DDU / DDP.
We do not advise using FOB since it is handled by your forwarder and we do not know their charge standard.
Payment terms:
100% T/T, Paypal, Western Union.
Payment currency:
USD/CNY.
Transporting:
If the quantity is small, we usually send it by courier (DHL, FEDEX, TNT and so on) or by air. If the quantity is large, we advise shipping by sea or by truck (to Vietnam, Laos, Malaysia, Mongolia, Russia, etc.) or by train (European countries). This will take longer time but cheaper fees. Shenzhen Port is the nearest port.
FAQ
1. Why choose us?
A: We are a professional supplier of Huawei, Emerson and ZTE power supply modules, embedded power systems and rectifier modules with original packaging and technical service to provide competitive pricing and fast delivery. We have exported our products all over the world. Contact our sales team and they will give you some clients' PO for reference. We can also give you some chat history to show our service. We take pictures for you before we ship them out and provide full tracking information.
2. How about the quality?
A: What we offer is new and original Huawei/ZTE/Emerson power supply which is of high quality. If there are no new items in the market, we will let you know; if you can accept second-hand power supply, we will source it for you.
3. Could I buy 1pc sample first and small order?
A: Of course! We support sample orders and small orders especially for new customers under certain conditions. If the trial order is OK, you can buy more in the next order. We can offer very competitive prices if the quantity is big. We can pack products according to customer's requirements. If the quantity is big, we will pack them on pallets since most of our clients buy a lot so most of our products are shipped by pallets. If the quantity is small such as just rectifier, it is advised to be shipped by cartons to save freight. But don't worry! Their packages are Huawei/ZTE/Emerson original packages which are well protected by foam and cartons.
4. Could you help us for full range power supply?
A: Yes! If some items are not in stock, we will check with our friend company for you then collect them all and ship them together for you.
