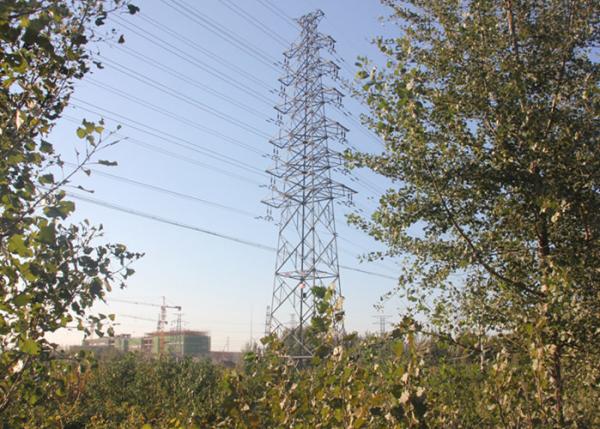

500KV Hot Dip Galvanization Power Transmission Tower Double Circuit Steel Tower

1. Production decription

Transmission steel towers Voltage from 10-1000KV

The transmission steel towers meet ASTM Standards,GB/T standards and related standards .

Steel grades
Tower legs: Chinese standard Q345B, which equal to ASTM A572 Grade 50
Others members: Chinese Q235B, which equal to ASTM A36
Bolts: Chinese grade 6.8 and 8.8, which equal to ASTM A394

Dimension and tolerance for angle : GB/T1591-1994, Equal to EN 10056-1/2
Hot dip galvanization: GB/T 13912-2002, which similar to ASTM A 123

The welding :AWS D1.1 or CWB standard

If the thickness of the material not less than 5mm,The min average thickness of the galvanization of transmission

steel tower is more than 86um.

Type test and preshipment test is accepted .

If needed ,we even can supply an engineer for help installing the transmissions steel towers .

Catalogue of the transmission line towers as followings :

Certificate of transmission steel towers :

2. Product capacity

We have 5 production line for manufacturing transmission steel towers ,We can supply 2000 tons steel towers

per month .And we have enough room to place more transmisson steel towers production line if needed .

​

​3. Technical support

Our engineer and drawer has lots of designing ,lofting experience of transmission steel towers .

Which we can supply a overall solution of all the towers .

4. Quality control

We have very strict quality control in every tranmsission steel towers .

Material incoming control:chemical and physical test

Zinc coating thinknes inspection

We usually has two ways of trial assembly for tranmsmission steel towers : trial assembly before galvanzation

and after galvanization

6. Hot dip galvanization and painting

7. Package and delivery

Package we usually do as our clients requirment .Usually for transmission steel towers,we fixed angle steel by

steel wire to bundles and use special material to protect zinc .

For fasteners ,we use bucket ,bag or box.

8. Company introduction

Qingdao Liangta Steel Structure Co., Ltd. ,established in year 2009,is a leading professional manufacturer in the field of transmission steel towers (the voltage up to 1000kv), telecommunication towers, monopoles, substation structures and rooftop towers. We also supply steel profile products as per customers 'requirement.

The factory located in Jiaozhou bay of Qingdao, covered an area of over 60,000 square meters with an annual production capacity 40,000 tons.

Location:
Less than one hour drive from Qingdao International Airport, 1 hour drive from Qingdao sea port.

• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems Certificate: OHSAS 18001:2007

We also have many experiences of foreign projects, like Philippines, Myanmar, Iraq, Mauritania and so on.

Welcome to contact us ,we make sure your every question will be answered in time .

9. Product catalogue:
