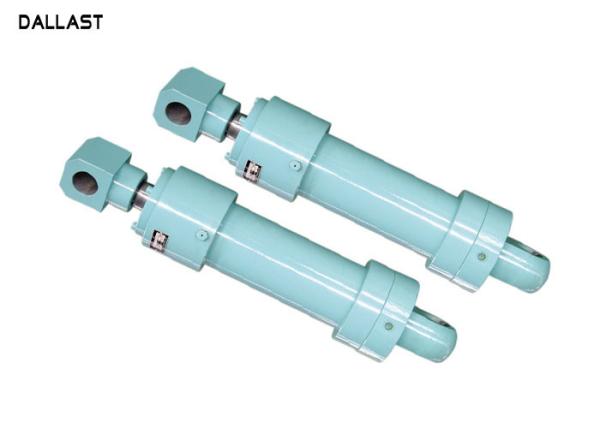

Double Acting Welded Dump Trailer Hydraulic Cylinder Medium Pressure HRC 45-55 Hardness
Double Acting Welded Dump Trailer Hydraulic Cylinder Medium Pressure HRC 45-55 Hardness
Double Acting Welded Dump Trailer Hydraulic Cylinder Medium Pressure HRC 45-55 Hardness
Double Acting Welded Dump Trailer Hydraulic Cylinder Medium Pressure HRC 45-55 Hardness
Double Acting Welded Dump Trailer Hydraulic Cylinder Medium Pressure HRC 45-55 Hardness
Double Acting Welded Dump Trailer Hydraulic Cylinder Medium Pressure HRC 45-55 Hardness
Specifications
Brand Name :
DALLAST
Model Number :
Customized
Certification :
Gs, RoHS, Ce, ISO9001
Place of Origin :
Shandong
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, D/P, L/C
Supply Ability :
50,000 Pieces/Year
Delivery Time :
15-25 Days
Packaging Details :
Plywood Box or Pallet
Pressure Environment :
Medium Pressure
Type :
Several Types for Your Choice
Color :
Any Color
Standard :
Standard, Nonstandard
Hardness :
HRC 45-55
Working Method :
Straight Trip
Description

Double Acting Welded Agricultural Hydraulic Cylinders for Dump Truck​

How is pressure calculated in a hydraulic cylinder?​

If you are calculating the pressure you are probably at the design stage of the development of an hydraulic mechanism. You must have already determined, by one means or another, the force acting on the mechanism. Since pressure is, by definition, force divided by area, if the force in Newtons divided by the area of the piston in the hydraulic cylinder being considered, in square millimetres. this will be the pressure required (in Megapascals) to resist that force. It would then be normal for a pressure in excess of that determined to cover contingencies or other known requirements.

Double Acting Hydraulic Cylinder, High Quality welded hydraulic cylinders series. Professional, and thorough analysis and design to all kinds of oil cylinder through High-tech means
B.Unique production process and management methods
C.Imported cushion, sealing element, oil pipe and other components
D.Holds Many Patents, High quality, high reliability, high service life.

Parameter:

Bore: Φ45mm, Rod: Φ25mm, Stroke: Φ95.25mm

Working pressure: 16Mpa

Test pressure: 24Mpa

Temperature: -10℃- +80℃

Transmission media: mineral hydraulic oil

Seals: Parker

Double Acting Welded Agricultural Hydraulic Cylinders for Dump Truck
Application: Agricultural Machinery, Agricultural Trucks
Stroke: 200mm to 13000mm
Bore: 40mm to 800mm
Shaft: 12mm to 500mm
Work pressure: 16Mpa to 62Mpa (2250 PSI – 10150 PSI)
Seal: Hallite, Parker, Merkel, DingZing, etc.
Paint: Red, Grey, Yellow, Black, etc.
Material: Stainless Steel
Certificate: Gs, RoHS, Ce, ISO9001
Package: Plywood Box or Pallet
W.P. 160bar

Tips:

OEM service provided.

We also can design by ourselves.

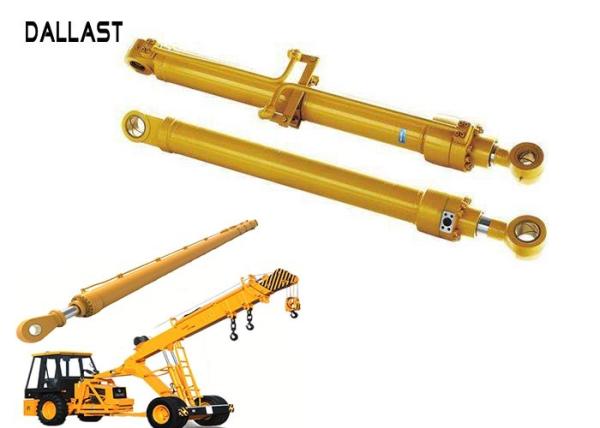

Product Show :

Double Acting Welded Dump Trailer Hydraulic Cylinder Medium Pressure HRC 45-55 Hardness
