Specifications
Brand Name :
DALLAST
Model Number :
OEM
Certification :
Gs, RoHS, Ce, ISO9001
Place of Origin :
Shandong
MOQ :
2
Price :
negotiation
Payment Terms :
T/T, Western Union, D/P, L/C
Supply Ability :
50,000 Pieces/Year
Delivery Time :
15-25 Days
Packaging Details :
Plywood Box or Pallet or as your requirements
Warranty :
One Year
Surfce Coating :
Sandblasting, Primer Paint, Middle Paint
Usage :
Automation and Control
Structure :
Piston Cylinder
Surface Coating :
Sandblasting, Primer Paint
Means of Transport :
Shipping
Power :
Hydraulic
Description

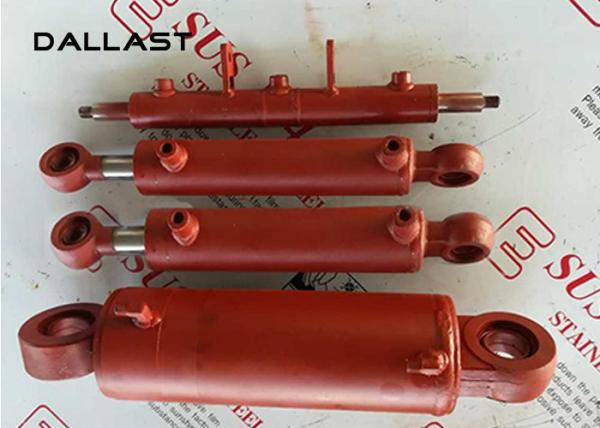

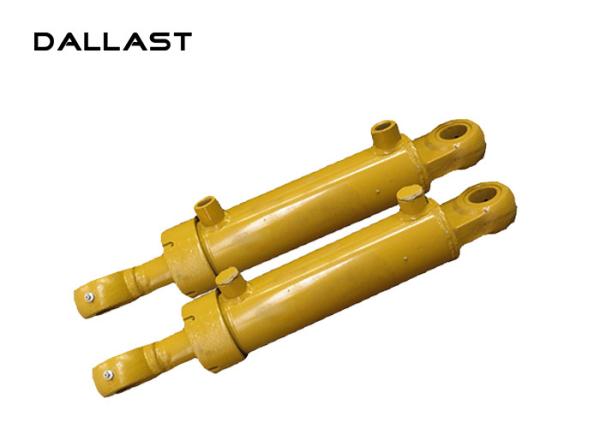

Double Acting Chromed Hydraulic Cylinder for Agricultural Truck / Dump Trailer

Product Informatica:

We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.

To get an immediate quotation,please provide us with the following necessary parameters:

1)Bore diameter

2)Piston rod diameter

3)Stroke length

4)Working pressure

5) Mounting method

Product name: double acting hydraulic cylinder information

Product Double acting hydraulic cylinder price
Work length 50mm to 16000mm
Work pressure 70bar to 700bar
Bore 40mm to 1000mm
Rod 12mm to 500mm
Seal type Parker, merkel, others
Certificate CCS, BV, GL, Lloydd's, DNV
OEM Can be offered

Not only we could manufacture all kinds of OEM hydraulic cylinders according to the drawing from our customers,but also we could make a design according to customer's requirements.If you require our engineer to make a design,pls advise us the following specification:

1. Rated pressure
2. Working pressure
3. Test pressure
4. Working condition and environment ,for example ,temperature ,working frequency
5. Pulling force ,and return stroke force
6. Pulling and return speed
7. Assembly size
8. Seal ring requirements .For example , brand ,seal material etc .
9. Tube and piston rod raw material requirements
10. Piston rod surface treatment requirements, for example chromating film thickness , Surface hardness etc .
11. Painting and other spare parts requirements .

Company Profile:

Dallast Technology Co., Ltd is an experienced and professional manufacturer of hydraulic cylinders. With over 15 years' experience in manufacturing, we can produce all kinds of hydraulic cylinders which include KRM series cylinder, telescopic cylinder, small hydraulic cylinder, OEM cylinder, Gear pump, PTO, ect.. Our products can be widely used in dump truck, tipper, and trailer for Japanese truck etc.

Quality Control:

1. With Rolling technology, the cylinders are straighter, the surface are harder and its quality is more durable.

2. All piston rod have to go through comprehensive processing: Heat treating Lathing GrindingPolishingHard chrome plating Polishing, this comprehensive processing make the cylinder harder, wearable and acid-proof.

3. Using imported materials for seal kits.

4. The structure kits are made by high-strength Manganese plate

5. Advanced surface treatment:

A. Environmental automatically pipelined painting

B. Cleaning with automatic washing machine

C. Assembling in seal clean workshops.

Hydraulic cylinder common problems:

1. User improper operation caused by cylinder deformation. Cabin in the lifting or lowering work violently shaking or overturning, so that the cylinder was a strong impact, causing the cylinder deformation or bending

2. Barrel strain.

3. due to unreasonable design, so that the top of the cylinder work, and the carriage interference caused by the cylinder strain

4. Cylinder trunnion and bracket hole with the gap is too large (2 mm) caused by the top cylinder partial load caused by bar strain.

5. Cylinder head nut loose caused by the top cylinder cover scratches the barrel caused by strain.

Processing Equipment:

Double Acting Chromed Hydraulic Cylinder for Agricultural Truck / Dump Trailer
