Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied
Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied
Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied
Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied
Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied
Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied
Specifications
Brand Name :
Dallast
Model Number :
OEM
Certification :
GS CE ISO9001
Place of Origin :
Shandong China
MOQ :
1 piece
Price :
Negotation
Payment Terms :
T/T, Western Union, D/A, D/P, L/C
Supply Ability :
50000 Pieces/Per year
Delivery Time :
15-25 days
Packaging Details :
Carton or According to Customer's Require
Type :
Hydraulic single cylinder
material :
27SiMn, 45#, Q345B
Heat Treatment :
Quenching
Shaft Diameter :
20-400mm
Working medium :
Hydraulic Oil
Body Material :
According to User Requirements
Painting :
Anti rust painting
Description

Hydraulic Telescopic Cylinder Hyva Type3-5 Stages Dump Trailer

Model Rated Press(Mpa) Lift capacity(T) Weight(KG) Oil Port Oil Volume(L)
FE 3TG-F091*3205-1424 20 11-18 92 1"SAE 16
FE 3TG-F110*3205-1399 20 21-46 98 1"SAE 24
FE 3TG-F110*3700-1529 20 20-37 109 1"SAE 28
FE 3TG-F129*3460-1449 20 33-59 129 1"SAE 37
FE 3TG-F129*3880-1609 20 33-59 142 1"SAE 42
FE 3TG-F149*3880-1644 20 47-68 168 1"SAE 56
FE 4TG-F149*4620-1484 20 35-70 171 1"SAE 59
FE 4TG-F149*4940-1529 20 34-66 179 1"SAE 63
FE 4TG-F169*4620-1479 20 51-83 206 1"SAE 78
FE 4TG-F169*5180-1604 20 50-83 227 1"SAE 88
FE 5TG-F169*5355-1394 20 35-66 212 1"SAE 80
FE 5TG-F169*5780-1559 20 34-60 224 1"SAE 87
FE 5TG-F169*6180-1559 20 34-58 236 1"SAE 93
FE 5TG-F169*6480-1604 20 34-56 247 1"SAE 97
FE 5TG-F191*6180-1527 20 49-84 281 1"SAE 122
FE 5TG-F214*7130-1722 20 60-84 380 1"SAE 188

Product Advantages:
1. more than 22 years manufacture experience
2. Our own factory
3. ISO9001-2008
4. Competitive price and high quality
5. Based on your drawing or requirement
6. rigid matching control and proper seals
7. Easy install and easy maintain

Cylinder Tube O.D. 131mm-242mm
Operating Pressure 16Mpa-20Mpa
Numbers of Stage 3, 4, 5, 6
Largest Moving Stage Diameter 110mm-214mm
Stroke 2900mm-9030mm
Closed Length 1320mm-2177mm
Extended Length 4220mm-11207mm
Plunger Mount Thickness 42mm-52mm
Warranty Period 14 months after date of production
Piston rod head radius 53-62mm
Oil Port G1/1''SAE
Cardinal Axi 60mm-65mm
Port Size 50mm-60mm

Exclusion clause:

1.Troubleshooting, diagnostic, removal, or reinstallation labor charges;

2.Freight charges for either defective parts or new or repaired parts unless prior written approval is obtained from WANTONG;

3.Claims for loss of time, inconvenience, loss of use, profits or other consequential damages

4.Conditions from, alteration, accident, misuse, neglect, fire, theft, loss, intentional damage, direct, indirect, consequential, incidental, weather related, or any other type of damage resulting from the use of the product;

5.Corrosion unless the material is found to be out of specification;

6.Failure due to contamination introduced to the cylinder;

7.Paint unless out of specification;

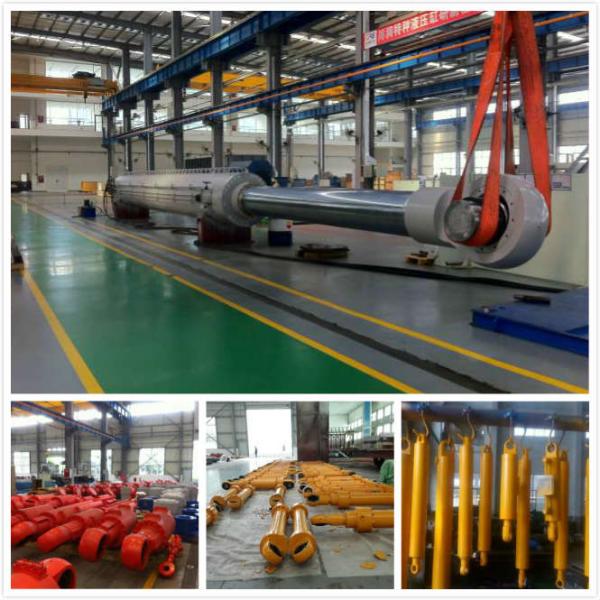

Quality
Quality is always top priority.
DALLASTHydraulic understands the importance of quality, and maintains a focus on producing a high level of quality, cleanliness in installation and 100% testing of all cylinders. As a result, our customers know that DALLAST Hydraulic cylinders are always an excellent choice for applications that require durability and constant use, and where maintenance and repairs must be kept to a minimum.
All of our production sites are certified according to ISO/TS16949: 2009 covering Sales, Development, Production and Service of hydraulic cylinders.
Welding technics has been approved by CCS and GL.
Productions are mostly carried out by CNC machines.

Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied
