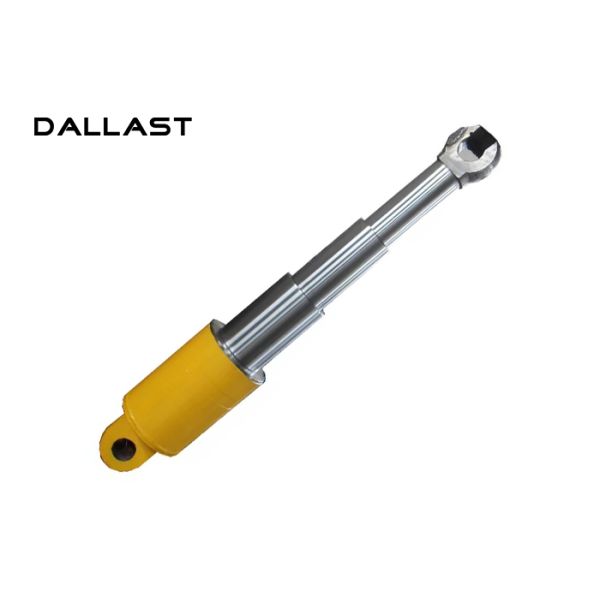

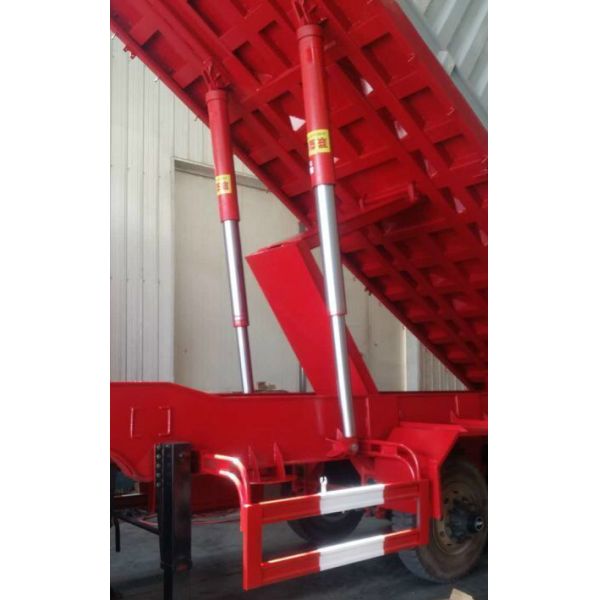

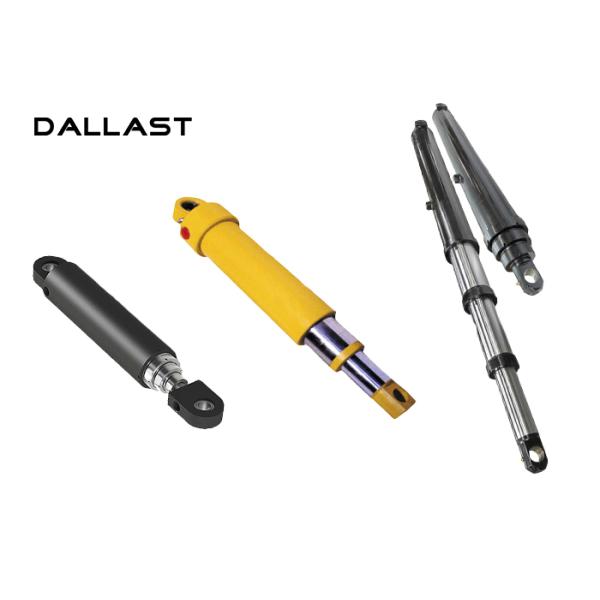

Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper
Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper
Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper
Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper
Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper
Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper
Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper
Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper
Specifications
Brand Name :
DALLAST
Model Number :
Customized
Certification :
ISO9001-2009 ,TS16949
Place of Origin :
shangdong
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
10000PCS per year
Delivery Time :
20- 25 days after down payment
Packaging Details :
shrink film, pallet, plywood case and carton
Material :
Alloy Steel,Carbon steel,27SiMn
Usage :
Agricultural Vehicles ,Tricycle ,Dump Truck,Sanitation car
size :
customized
Structure :
Multi stage
Stroke :
long stroke
Mounting type :
several types
Description

Name:Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper

Multi-stage telescopic sleeve cylinder


Multi-stage hydraulic cylinder for large stroke and installation distance or total length (stroke can be greater than the installation distance or total length) occasions, single-acting and double-acting. The company's hydraulic cylinder with a compact layout, reasonable structure, reliable work, easy assembly and disassembly, easy maintenance and so on. Widely used in various mining machinery, lifting transport machinery, environmental protection machinery and transport machinery (wrecker). The series of hydraulic cylinder working pressure, working stroke, installation distance, the use of series, all levels of stroke and piston rod diameter and other parameters can be designed according to customer needs.

① other parameters of the main components: Bore diameter: D = 140mm; cylinder diameter: = 165mm; cylinder wall thickness: = 12.5mm; cylinder limit thrust: = 10T; cylinder speed ratio = 0.5.

② cylinder installation: flange and Y connector after installation.

③ the choice of sealing device: Selection of polyurethane (PU) and PTFE seals, in order to achieve a good sealing effect.

④ choice of working medium: Because at room temperature, so choose ordinary 46 # anti-wear hydraulic oil can be

Users can according to their own needs, the piston rod connection thread, installation size, the use of pressure and other special requirements to custiomized.

TG series hydraulic cylinder for vechiles

Model Pressure
(MPa)		 Bore diameter
(mm·)		 Installation distance
(mm)		 Stroke
(mm)
4TG-E180*800 16 180 140 800
4TG-E160*800 16 160 140 800
3TG-E150*800 16 150 140 800
5TG-E130*750 16 130 140 750
3TG-E130*900 16 130 140 900
4TG-E110*1360 16 110 140 1360
3TG-E110*1530 16 110 140 1530
3TG-E110*1350 16 110 140 1350
3TG-E110*1020 16 110 140 1020
3TG-E110*900 16 110 260 900
2TG-E110*1020 16 110 140 1020
3TG-E90*1155 16 90 140 1155
3TG-E90*1020 16 90 140 1020
3TG-E90*900 16 90 260 900
3TG-E90*750 16 90 140 750
2TG-E90*900 16 90 140 900
2TG-E90*600 16 90 260 600
2TG-E90*500 16 90 260 500
3TG-E70*750 16 70 140 750

Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper

Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper

Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper

Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper
