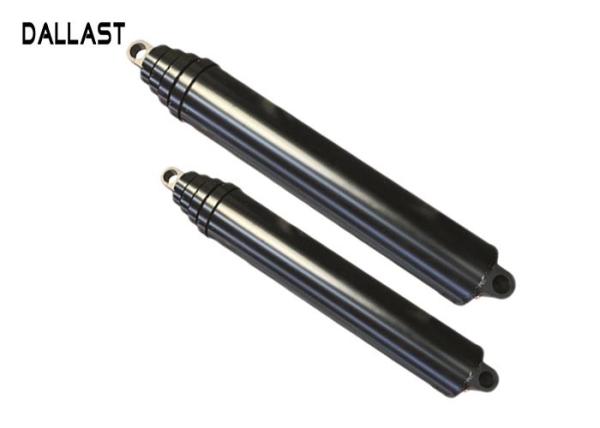

Long Stroke Parker Single Acting Hydraulic Cylinder 16-35 MPa Pressure

Key features:

1. The Single-Acting Hydraulic Cylinder block models a device that converts hydraulic energy into mechanical energy in the form of translational motion.

2. Hydraulic fluid pumped under pressure into the cylinder chamber forces the piston to move and exert force on the cylinder rod.

3. Single-acting cylinders transfer force and motion in one direction only.

4. Use an external device, such as a spring, weight, or another opposite installed cylinder, to move the rod in the opposite direction.

Mounting option:

Various options available based on application requirements

1. bore size (INCH): up to 17''

2. length (INCH): up to 500

3. rod diameter (INCH):up to 16''

4. temperature range (F): -40 DEG TO 275 DEGF

Introduction:

1. Telescopic front hydraulic cylinder increases lift capacity and lifting stability.

Details:

If you are interested in our products, contact us and send us the drawings:

The drawing details are as follows.

Piston Seals:
Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.

About piston rod:

1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.

After-sales service:
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
6. Service Center all over the world for after sales problems.

Warranty:

We offer 12 months warranty.

How to choose:
1. Choice will depend on the operating conditions of the unit. It is necessary to determine the precise physical characteristics and geometry of the installation.
2. The bore, or cylinder diameter will determine the amount of force the piston can apply. Rod characteristics, usually standardized, fastening system, damping and stroke are other important factors.
3. Stroke, in particular, is an essential specification, since it defines the distance the piston travels between its initial and its final position.
4. Additional criteria include the use of presence sensors to indicate the position of the piston, the seals, purge and drain valves, type and temperature of the hydraulic fluid.
