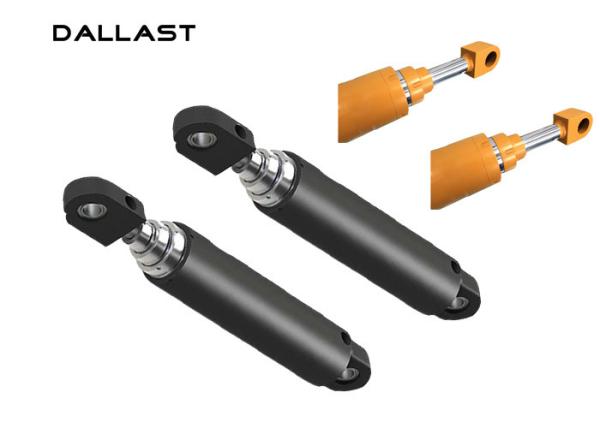

OEM / ODM Single Acting Hydraulic Cylinder Multi stage Piston Rod RAM

Instruction:
Hydraulic cylinder for single rod piston type HSG project, has the characteristics of diversity and buffer device installation and connection, is widely used in various engineering, ship, port, mining and metallurgical machinery hydraulic system

Our company can comply with requests of special cylinders up to 15.000 mm in length and internal diameters up to 1.500 mm.

We are then able to carry out the following workings:

Turning up to Ш 1.500 x 15.000 mm

Milling Welding (Process certified by R.I.N.A. UNI EN 288-3)

Polishing from 25mm up to 700mm x 18.000 mm

Custom-made trailer use hydraulic piston cylinder

We are a professional hydraulic cylinder factory. We produce hydraulic cylinder ourselves, sell it ourselves, and provide after-sale service ourselves.

Advantage of our production

1. use a new rolling technology to ensure the precision of cylinder inside hole is very high

2. the thickness of cylinder up to 16mm, it can meet the strength requirement when the truck is overloaded

3. the diameter of piston rod reaches 90mm, it will not be bending under normal use

4. use 3 seal-rings to seal piston rod, it can life-long use

40-200 mm diameter up to 10 meters length all kind of hydraulic cylinders are in our product range. Contact with us and we will solve your all kind of hydraulic problems. We can easily competitive with our high-quality equipment’s and with our quite less prices.

We can produce all kind of special designs according to your requests.

Design

We manufacture all kinds of hydraulic cylinders, specialized in customizing for customers non -standard hydraulic cylinders, Hydraulic System and mechanical parts. We can produce cylinders according to your drawing or your requirements. More than 80% of our orders are custom-made and new-designed. If require us to make a design, please advise the following necessary parameters.

1. Drawing

2. Stroke Length

3. Cylinder Diameter

4. Piston Rod Diameter

5. material

6. Working Pressure

7. Front, Spacer or Back end mounting method

8. working condition and environment

9. Painting or any other requirements
