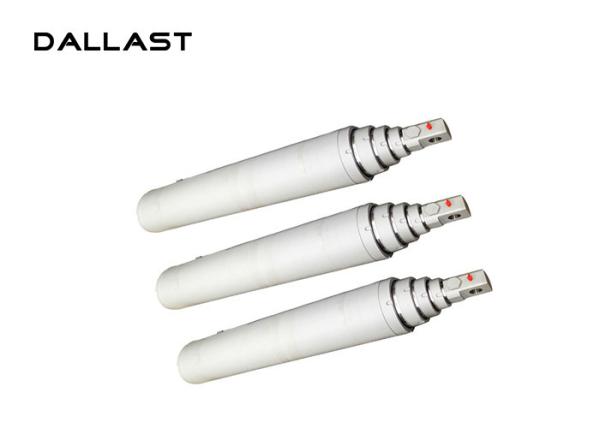

Single Acting Hydraulic Cylinder , Telescopic Chrome Hydraulic Lift Cylinders for Side Dumper
Single Acting Hydraulic Cylinder , Telescopic Chrome Hydraulic Lift Cylinders for Side Dumper
Single Acting Hydraulic Cylinder , Telescopic Chrome Hydraulic Lift Cylinders for Side Dumper
Single Acting Hydraulic Cylinder , Telescopic Chrome Hydraulic Lift Cylinders for Side Dumper
Single Acting Hydraulic Cylinder , Telescopic Chrome Hydraulic Lift Cylinders for Side Dumper
Single Acting Hydraulic Cylinder , Telescopic Chrome Hydraulic Lift Cylinders for Side Dumper
Specifications
Brand Name :
Dallast
Model Number :
Customized
Certification :
Gs, RoHS, Ce, ISO9001
Place of Origin :
Shandong
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, D/P, L/C
Supply Ability :
50,000 Pieces/Year
Delivery Time :
15-25 Days
Packaging Details :
Plywood Box or Pallet
Acting Way :
Single Acting
Origin :
Shandong, China
Working Method :
Straight Trip
Hardness :
HRC 45-55
Available Temperature :
-40℃ to 80℃
Usage :
Automation and Control
Warranty :
One Year
Structure :
Telescopic Cylinder
Description

Single Acting Hydraulic Cylinder , Telescopic Chrome Hydraulic Lift Cylinders for Side Dumper

Parameters:

Single Acting Hydraulic Cylinder , Telescopic Chrome Hydraulic Lift Cylinders for Side Dumper
Model Cylinder.
Diameter
(mm)		 Stroke
(mm)		 Install
(mm)		 Pressure
(Mpa)		 Thrust
(T)		 Loading
(T)
2TG-D110×900NC 110 900 150 10 9.5 5-10
2TG-D110×980ZY 110 980 150 10 9.5 5-10
2TG-D110×1020ST 110 1020 140 10 9.5 5-10
3TG-D110×1020ST 110 1020 150 10 9.5 5-10
3TG-D110×1170ST 110 1170 150 10 9.5 5-10
3TG-D110×1350ST 110 1350 150 10 9.5 5-10
3TG-D110×1530ST 110 1530 150 10 9.5 5-10

This product is used in numerous application including:
1. Dump truck,

2. Pump trucks,

3. Side Dumper,

4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders.

Specifications:

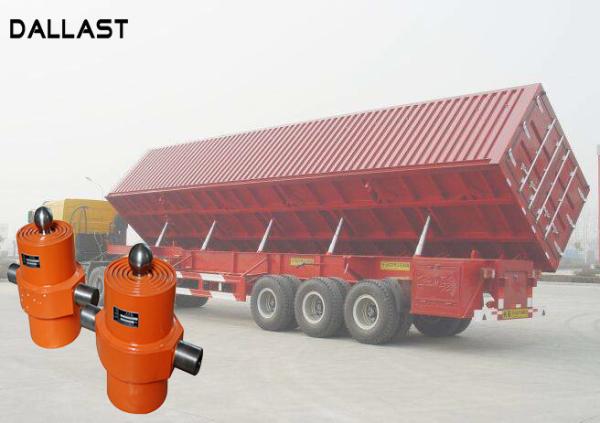

Side dumper hydraulic telescopic cylinder:

Telescopic hydraulic cylinder combined with its many years of experience in global markets, using its proprietary design and processing technology, the front hydraulic cylinder structure performance improvements:
1. New generation of series products, hydraulic cylinder diameter larger, stronger lifting force
2. Through special processing, dedicated high-quality, high-precision steel pipe material, the maximum working pressure of 3000 psi, the flexural capacity is stronger
3. New guide ring structure with advanced sliding material, make the hydraulic cylinder lifting more smooth, long service life
4. we update the seals structure to be sure the oil will not be leak under high pressure and bad working environment


We are manufacturing various kinds of hydraulic cylinders like:

1. Double Acting Hydraulic cylinders

2. Telescopic Cylinders

3. Piston Hydraulic cylinders

4. Single-acting cylinder

The information about our company:

Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.

Single Acting Hydraulic Cylinder Inner Workings and Uses:

A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.

We have technology terms and can design drawing according to provided information for your review.

We are solding our products to nearly the whole global.

Appreciate for your kind help, we will be able to offer you the correct and exact quotation as soon as we got

your inquiry.Thank you!

FAQ:

1. Does your products come with a warranty?
Yes, we have one year warranty. During the period,we can send you replacement free of charge if there is quality problem.

2. Can I customize our products from your factory?
Yes, we can make products according to your requirements. Please kindly send us your specifications and drawings.

3. Can I get samples to test before starting cooperation?

Of course.We would like produce sample hydraulic cylinder for your confirmation.

4. How many days will samples be finished?

Generally 5-7days for samples making.

5. I want to see your hydraulic cylinders,where is your factory?

Our factory is located in Qingdao City,Shandong Province.

6. What’s your cylinder PPM?

5000 PPM. We do 100% inspection before delivery.

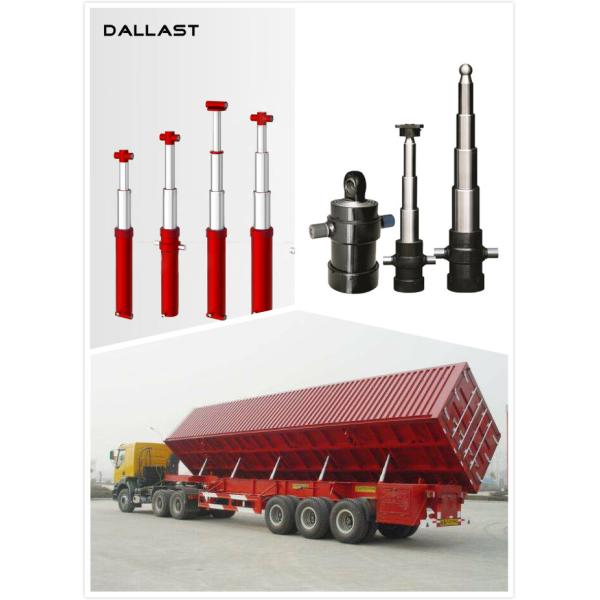

Product Show:

Single Acting Hydraulic Cylinder , Telescopic Chrome Hydraulic Lift Cylinders for Side Dumper
