Specifications
Brand Name :
Dallast
Model Number :
3TG/4TG/5TG
Certification :
GS CE ISO9001
Place of Origin :
Shandong China
MOQ :
1 piece
Price :
Negotation
Payment Terms :
T/T, Western Union, D/A, D/P, L/C
Supply Ability :
50000 Pieces/Per year
Delivery Time :
15-25 days
Packaging Details :
Carton or According to Customer's Require
Installation :
Front End Loader
Color :
Optional
Shaft Diameter :
Optional
Usage :
Dump truck
Type :
Telescopic type
Description

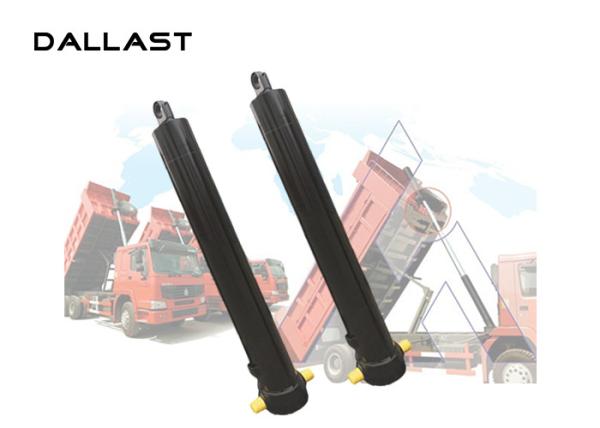

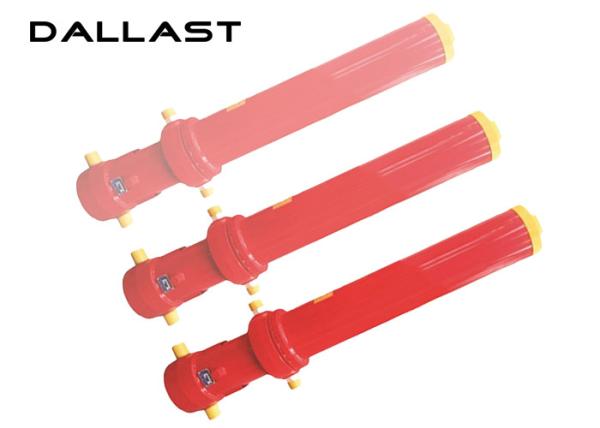

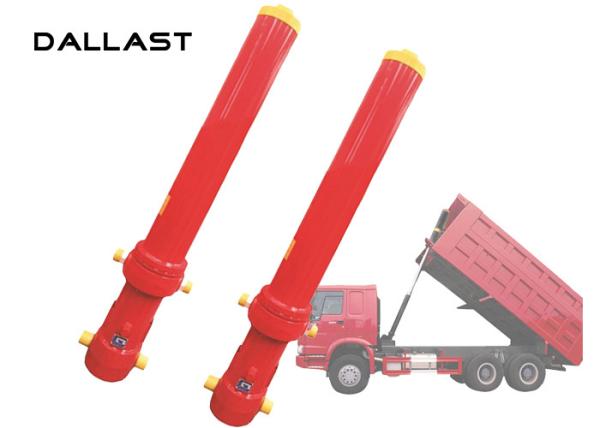

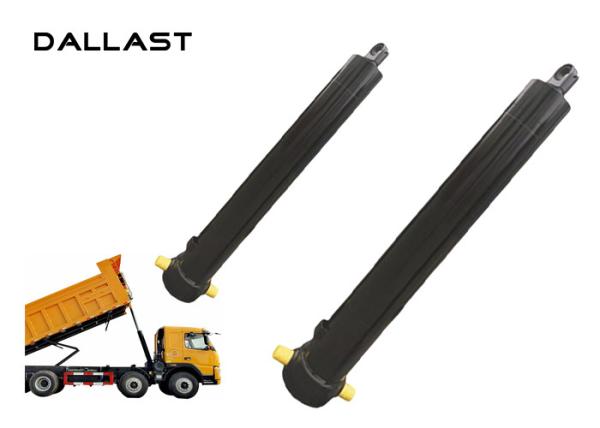

High Lift Dumper Front End FC Single Acting Hydraulic Cylinder

Front-end hydraulic cylinder- Lightweight series

1. Safer: the Dallast Mining Series of hydraulic cylinder adopts a brilliant structural design and uses new material in its production, which enables it to work stable in the worst working conditions and thus ensures the safety of drivers and greates benefits for its customers.

2. Faster dumping speed: the use of brilliant structural design improves the dumping speed of the hydraulic cylinder!

3. Higher lifting frequency: the Dallast mining series can be used for 24-hour short distance high-frequency work. With its stable performance, low mechanic failure, it can reduce parking time and improve working efficiency.

4. Greater environment adaptability: it adopts newly-developed seal patented technology and new material, and thus can work within a temperature range of -40°C-110°C. it can work smoothly in both high and low temperature environment.

5. Lighter: it is 15%-20% lighter than other series of cylinder, but has improved its lifting force by 10%-15%..

6. Greater lifting power: it has improved its lifting force by 10%-15% when compared with other series of cylinder, which will bring the customers with more benefit.

Type Max Min
Cylinder bore: 280 mm 10 mm
Piston Rod Diameter: 280 mm 10 mm
Retract Length: 3500 mm 50 mm
Stretch Length(Single stage cylinder): 6500 mm 60 mm
Stretch Length(Dual stage cylinder): 12500 mm 60 mm
Working Pressure: 4500PSI 1000PSI

We have more than one decade experience in supplying custom hydraulic cylinders with provided drawings or samples, or if you could provide following specification:
• diameter of bore & rod
• stroke length
• mounting style
• mounting distance
• working pressure
• ports
• seals
• special modifications
• paint color requirement
• operating pressure
• type of structure

Features:

1. Multistage telescopic long stroke hydraulic cylinder applies to long stroke lifting operation.

2. Surface corrosion treatment, bright color, not east to rust.

3. High strength alloy steel with high grade heat treatment, produced by imported CNC lathe, drilling machine and grinding machine.

4. Import seeling parts, not easy to wear after continuous working.

5. Dust ring reduces contamination, extending cylinder life.

6. Single acting, load return.

7. R2 3/8 coupler and dust cap included on all models.

8. Flat saddle is standard, and tilting saddle is available.

GS Certification Single Acting Hydraulic Cylinder High Lift Dumper Front End FC
