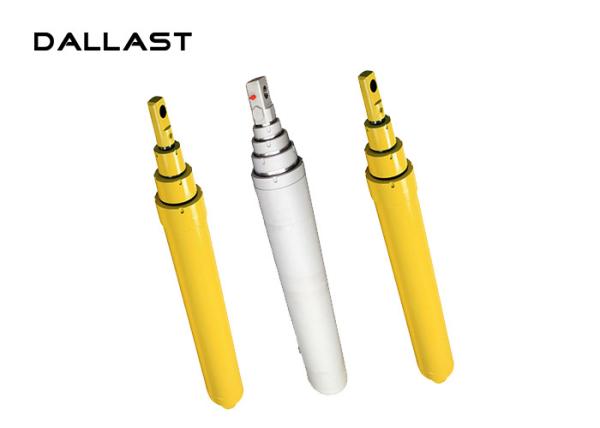

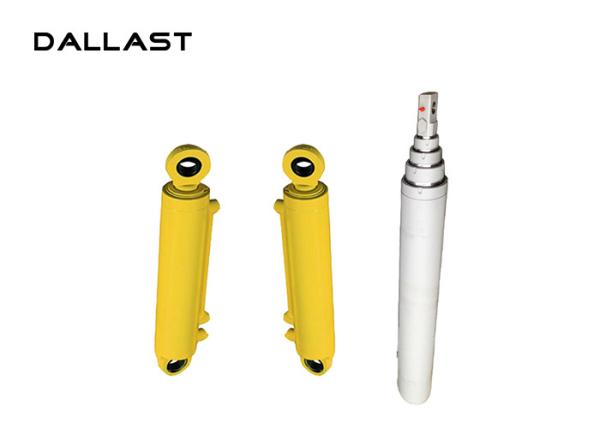

ISO9001 Single Acting Telescopic Cylinder Track Loaders Earring Stroke 800 mm

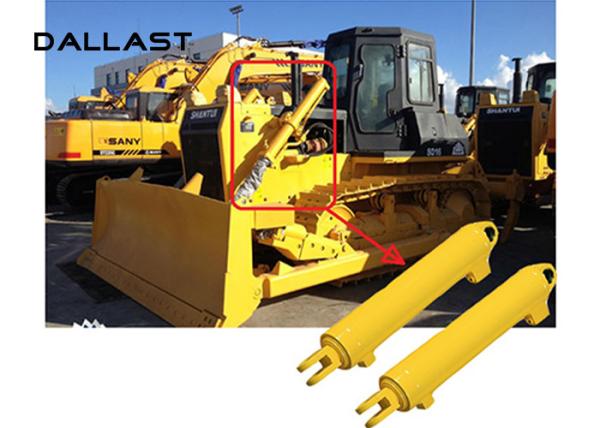

This sort of cylinders is mainly used for loader, excavator, shield tunneling machinery, heading machine etc. They need to have good properties of pressure resistance, we have abundant sizes cylinders that is suitable for many kinds of engineering machinery.

Customer build is the first principle for our Hydraulic.

We can design piston hydraulic cylinder for what you want if you can provide us the following technical parameters:

1. Bore Diameter;

2. Piston Diameter;

3. Stroke;

4. Working pressure;

5. Installation Distance (the length of the cylinder in closed position);

6. Mounting type

7. Mounting length

8. Paint color requirement

9. Operating pressure

Specificaion:

Feature:
1. light weight, high strenght
Base on the nature of construction work, the hydraulic cylinders need to suit for high strength, high using frequency, high fatigability. To promise the stability and reliability of application.
2. The seal system
select the excellent seal kits from Japan and Germany. Adopt the advanced physical design, make sure the hydraulic cylinder get the best piston rod oil film.
3. Cylinder body
adopt the good quality alloy honed tube, though cold-drawing and rolling, to reach an excellent roughness and surface hardness, improve the wear-resistance.
4. Piston rod
middle frequency induction hardening and tempering, chrome plated on rod surface to improve the anti-rust, wear-resistance and anti-scratch property.
5. Safety/cushioning function
the inside of cylinder set up an cushioning device in the end of stroke, it can absorb the huge
impact.

FAQ:

1. How does a displacement cylinder work?

In a displacement (single acting) cylinder the rod is extended by flowing pressurized oil behind the rod,

which forces the rod out of the barrel like a piston. Once the pressure is released, the load on the

cylinder retracts the rod. The diameter of the rod is the effective piston area.

2. How much force does my cylinder have?

Force is determined by multiplying the area of the piston by the pressure (PSI).(r2 x p x PSI)

3. Are shipping and handling charges included?

No. Unfortunately, exact shipping charges are determined when the order is shipped. You can preview shipping estimates during the checkout process. These charges are estimates only.
