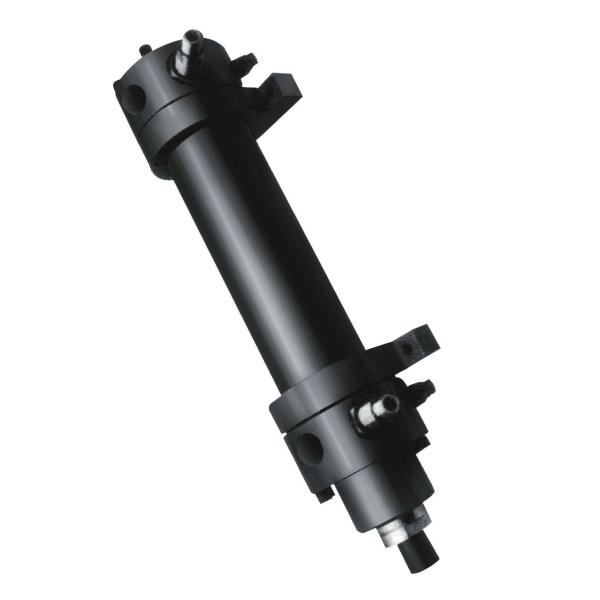

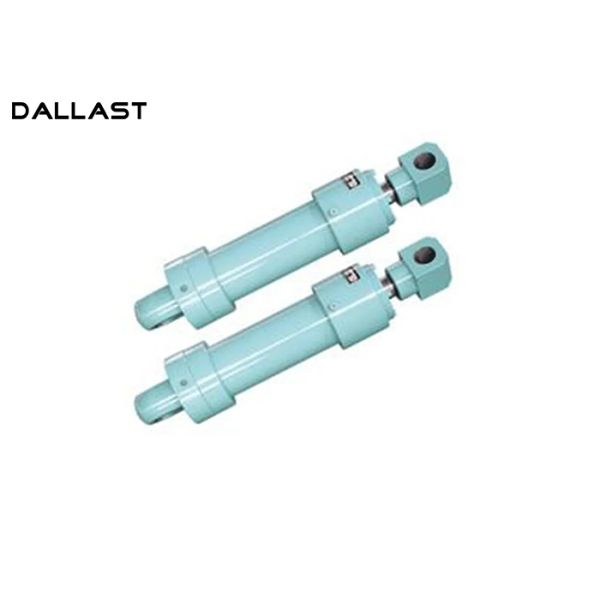

Heavy Duty High Tonnage Metallurgy Industrial Hydraulic Cylinder
Heavy Duty High Tonnage Metallurgy Industrial Hydraulic Cylinder
Heavy Duty High Tonnage Metallurgy Industrial Hydraulic Cylinder
Heavy Duty High Tonnage Metallurgy Industrial Hydraulic Cylinder
Heavy Duty High Tonnage Metallurgy Industrial Hydraulic Cylinder
Heavy Duty High Tonnage Metallurgy Industrial Hydraulic Cylinder
Heavy Duty High Tonnage Metallurgy Industrial Hydraulic Cylinder
Heavy Duty High Tonnage Metallurgy Industrial Hydraulic Cylinder
Specifications
Brand Name :
DALLAST
Model Number :
Customized
Certification :
ISO9001-2009 ,TS16949
Place of Origin :
shangdong
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
3000PCS per year
Delivery Time :
20- 25 days after down payment
Packaging Details :
shrink film, pallet, plywood case and carton
Special Cylinder Type :
Piston Cylinder
Type :
YHG1
Material :
Carbon Steel, Alloy Steel, Stainless Steel
HS Code :
8412210000
Working Medium :
Hydraulic Oil
Specification :
custom made
Description

Heavy Duty High Tonnage Metallurgy Industrial Hydraulic Cylinder

Product Features:
Metallurgical equipment standard hydraulic cylinder with a variety of specifications and varieties, bore diameter is generally in the 40-320mm range, working pressure ≤ 16MPa, available hydraulic oil mechanical system loss of oil and emulsion working medium, the use of temperature range of -40 ~ 80 ℃ , The installation of a flange, earrings, pins and other forms and in line with ISO6020 / 1-1981 standards, in addition to tripod (base) type.
Wide range of uses: This series of hydraulic cylinders is suitable for a variety of industrial sectors, such as metallurgy, mining, lifting, transportation, shipping, forging, casting, machine tools, coal, petroleum, chemical, scientific research, military and so on.


According to user requirements, design and manufacture of this series hydraulic cylinders.

Bore Diameter

(mm)

Rod Diameter

(mm)

Working pressure

16MPa

Max. Stroke

(mm)

speed

Push

F1(KN)

Pull F2(KN) Normal DiaConnection thread
1.4621.462
40222820.1114.0210.2510M18x1.5
50283631.4221.5615.1310M18x1.5
63364549.8833.5924.4315M27x2
80455680.4254.9840.9915M27x2
905063101.7970.3751.9115M27x2
1005670125.6686.2164.0820M33x2
1106380152.05102.1871.6320M33x2
1257090196.35134.7794.5620M33x2
14080100246.30165.88120.6425M42x2
15085105282.74191.95144.2025M42x2
16090110321.70219.91169.6525M42x2
180100125407.15281.49210.8032M48x2
200110140502.65350.60256.5332M48x2
220125160608.21411.86286.5132M48x2
250140180785.40539.10378.2540ø40
280160200985.20663.50482.5540ø40
3201802201286.80879.65678.5840ø40


Heavy Duty High Tonnage Metallurgy Industrial Hydraulic Cylinder
Heavy Duty High Tonnage Metallurgy Industrial Hydraulic Cylinder
