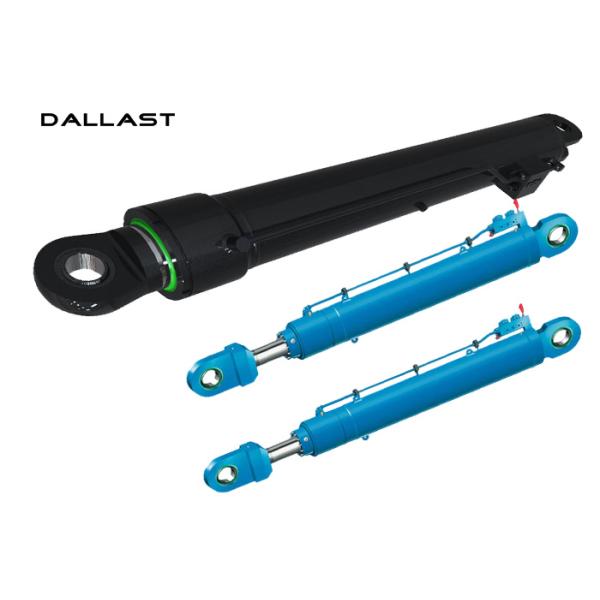

Industrial Heavy Marine Steering Double Acting Hydraulic Cylinder

Related parameter:

Specifications:

1. Oil port connection: internal thread or flange

2. cylinder head and cylinder connection: thread (less than 80mm diameter) card key (more than 80 mm diameter)

3. Buffer parts: without buffer (Phi 40, Phi 50, Phi 63 without buffrt)

Both ends with buffer

without the rod side buffer(-2 ratio, only the clinder head with buffer)

Rod side band buffer

4. piston rod end connection mode: rod end screw

In the end of the thread rod (for D-63 mm diameter)

End of the rod end of the threaded rod end of the earrings with bushing

Rod end inner threaded rod head earring with bushing

Rod end threaded rod head earring for joint bearing

Screw piston rod and ring belt bushing

Integral piston rod ring joint bearing

Models

Features:

Low friction hydraulic steering

Easy installation on single and dual rudders

Supplied with bleeder fittings

Heavy duty brass construction

hydraulic cylinder used for marine steering factory, welcome to contact us at any time!

QC:

1. Cylinder products from purchased materials, processing, assembly, have strict quality control. (we passed the certification of ISO/ TS 16949:2009)

2. Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.

3. Welding using CO2 arc welding and automatic girth welding, which ensure the welding quality of the seal parts

Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.
