Single Acting Chrome Tipper Trailer Dump Truck Hydraulic Cylinder
Single Acting Chrome Tipper Trailer Dump Truck Hydraulic Cylinder
Single Acting Chrome Tipper Trailer Dump Truck Hydraulic Cylinder
Single Acting Chrome Tipper Trailer Dump Truck Hydraulic Cylinder
Specifications
Brand Name :
DALLAST
Model Number :
Customized
Certification :
ISO9001-2009 ,TS16949
Place of Origin :
shangdong
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
3000PCS per year
Delivery Time :
20- 25 days after down payment
Packaging Details :
shrink film, pallet, plywood case and carton
Material :
Alloy Steel,Carbon steel,27SiMn
Paint color :
As Customer′s Requirement
Size :
Customized as your request
Power Source :
Hydraulic oil
Pressure Direction :
Single-Acting Cylinder
Model :
Telescopic Hydraulic Cylinder
Description

Single Acting Chrome Tipper Trailer Dump Truck Hydraulic Cylinder

Products Discription:

  • Professional manufacturer supplier of Hydraulic Cylinders for more than 22 years;
  • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification;
  • Experience in export North America, Australia, Asia, Middle East, Africa;
  • Hydraulic Cylinders can be Make according to client's requirements;
  • The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;
  • We are most of famous manufacturing company in telescopic cylinders.

HS Code 8412210000
Application Dump truck, Tipper, Dump Trailer
Material of cylinder tube Carbon steel, Alloy steel, 27SiMn
Seal Parker, Merkel, Hallite, Kaden
Coating All tubes are chrome plated
Working pressure 16mpa-32mpa
Stroke 2980mm-9530mm
Color red black blue gray, according to customer's requirement
Mounting Type Earring-trunnion, double trunnion, double earring (eye end)
Package shrink film, pallet, plywood case
Warranty 12 months after shipping arrival
Main export market US, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Kenya, Philippines, Bolivia, the United Arab Unites, Singapore
Delivery time 20-25 days after down payment
Honed tube 20-2000mm, Heat treatment, honing, rolling
Piston rod 10-1500mm,tempering, plated nickel, Chrome or ceramic
Temperature range -30°C - +100°C
Work medium Hydraulic Oil
Piston speed maximum 0.5m/s
Mounting style Earrings, flange, foot mounting, screw thread.

Single Acting Chrome Tipper Trailer Dump Truck Hydraulic Cylinder

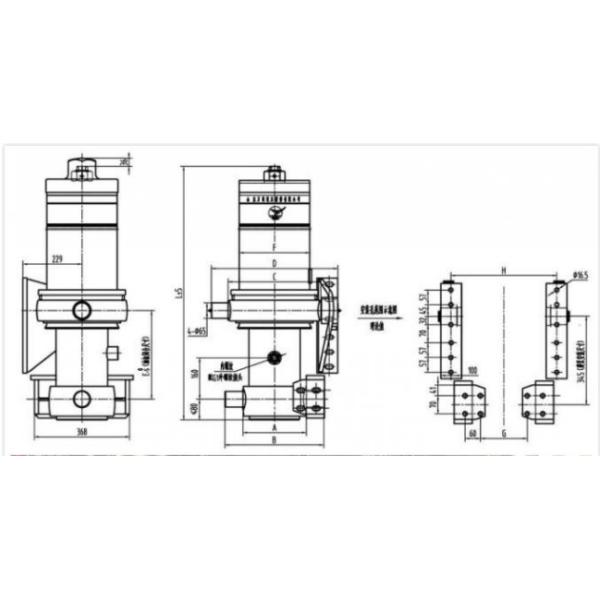

Model Lifting Pressure Bore Dia A B C D E F L G H
(ton) (Mpa) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
FC-4TG-E158x4280 31.4 16 158/136/115/95 245 385 360 490 335 272 1450 195±10 420±10
FC-5TG-E158x4280 31.4 16 158/136/115/95/75 245 385 360 490 335 272 1195 195±10 420±10
FC-4TG-E166x4280 34.6 16 166/141/115/95/75 245 385 360 490 335 272 1450 195±10 420±10
FC-4TG-E166x5390 34.6 16 166/141/115/95/75 245 385 360 490 335 272 1725 195±10 420±10
FC-4TG-F181x4280 51.4 20 181/158/136/115 245 385 360 490 335 272 1460 195±10 420±10
FC-4TG-F181x4650 51.4 20 181/158/136/115 245 385 360 490 335 272 1555 195±10 420±10
FC-4TG-F181x5000 51.4 20 181/158/136/115 245 385 360 490 335 272 1645 195±10 420±10
FC-4TG-F181x5390 51.4 20 181/158/136/115 245 385 360 490 335 272 1740 195±10 420±10
FC-4TG-F181x5790 51.4 20 181/158/136/115 245 385 360 490 335 272 1820 195±10 420±10
FC-5TG-F181x4280 51.4 20 181/158/136/115/95 245 385 360 490 335 272 1195 195±10 420±10
FC-5TG-F181x5000 51.4 20 181/158/136/115/95 245 385 360 490 335 272 1355 195±10 420±10
FC-5TG-F181x5390 51.4 20 181/158/136/115/95 245 385 360 490 335 272 1455 195±10 420±10
FC-5TG-F181x5700 51.4 20 181/158/136/115/95 245 385 360 490 335 272 1500 195±10 420±10
FC-4TG-F191x4650 57.3 20 191/166/141/115 245 385 360 490 335 272 1560 195±10 420±10
FC-4TG-F191x5000 57.3 20 191/166/141/115 245 385 360 490 335 272 1645 195±10 420±10
FC-4TG-F191x5390 57.3 20 191/166/141/115 245 385 360 490 335 272 1740 195±10 420±10
FC-4TG-F191x6000 57.3 20 191/166/141/115 260 405 340 470 325 244 1890 215±10 420±10
FC-4TG-F191x4650 57.3 20 191/166/141/115 265 405 360 490 345 260 1555 215±10 420±10
FC-4TG-F206x6000 66.6 20 206/181/158/136
