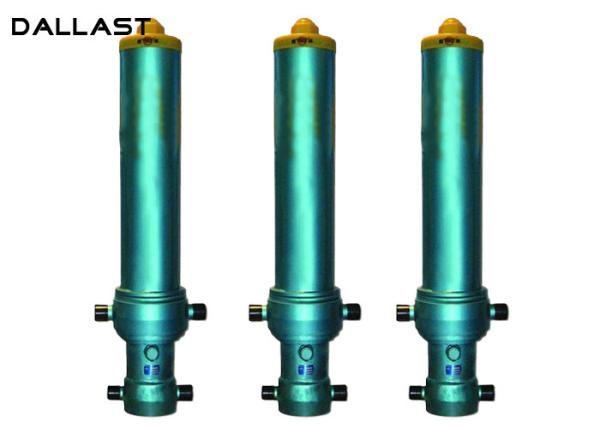

Multi Stage Telescopic Dumpers Hydraulic RAM Single Acting Hydraulic Cylinder
Multi Stage Telescopic Dumpers Hydraulic RAM Single Acting Hydraulic Cylinder
Multi Stage Telescopic Dumpers Hydraulic RAM Single Acting Hydraulic Cylinder
Multi Stage Telescopic Dumpers Hydraulic RAM Single Acting Hydraulic Cylinder
Specifications
Brand Name :
DALLAST
Model Number :
Customized
Certification :
ISO9001-2009 ,TS16949
Place of Origin :
shangdong
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
50000PCS per year
Delivery Time :
20- 25 days after down payment
Packaging Details :
shrink film, pallet, plywood case and carton
Stroke :
3000mm-12000mm
Material :
Alloy Steel,Carbon steel,27SiMn
Paint color :
Semi-gloss black, grey, red
Piston rod :
Chromed C45# steel
Size :
Customized as your request
Power :
hydraulic oil
Description

Multi Stage Telescopic Dumpers Hydraulic RAM Single Acting Hydraulic Cylinder​

Products Discription:

HS Code 8412210000
Application Dump truck,tipper,trailer,dump hoist
Working pressure 16-32MPa
Gland High grade ductile iron
Tube Cold drawn honed tubling
Piston High grade ductile iron
Mounting Type Earring-trunnion, double trunnion, double earring
Piston seal Urethane seal
End cap Casting seel
Gland seals Polyurethane U-cup
Rod wiper Urethane snap in
Delivery time 20- 25 working days after payment
Warranty one year after receive product
We are a professional manufacturing expert of Hydraulic Cylinders (with ISO9001&TS16949) ,
They are used for dump truck,trailer,agriculture machine,construction, mining, forestry, loader, waste management Etc,The annual production capacity of cold drawn pipe is more than 2000 tons.
Over the years we have grown into a diversified market based that now services customers all over the world.
Because the hydraulic cylinder to withstand a lot of pressure, the heavier the load, the greater its pressure, therefore, do a good job of hydraulic cylinder maintenance is the most important part of the entire hydraulic system maintenance.
First of all, to rust. Because the hydraulic cylinder piston part of the working state is to stick out of the cylinder, will naturally be oxide, acid gas erosion, which requires us to apply it with the right amount of grease to protect, as a load-bearing parts of the piston Eroded and broken at work.
Second, to open the box to change oil. Because of prolonged use, will inevitably have foreign matter into the hydraulic cylinder, so that friction occurs in use will occur, in addition, the hydraulic oil is also a certain service life, long time do not change the oil will damage or erosion of the hydraulic cylinder.
Therefore, in the work of the hydraulic cylinder to control the speed appropriate, not more than 2m / s, so you can extend the life of the hydraulic cylinder, in addition to the protection of institutions and safety reasons, the internal installation of buffer device for hydraulic cylinder protection is very Effective.


For design of hydraulic cylinder,we need the following parameters:

  • Bore,rod diameter,travel
  • Working pressure or cylinder load
  • Working temperature
  • Working medium
  • Running speed
  • Other parameters, such as connection form, installation size.
FC Type Hydraulic Cylinder
MODEL NO. Stage Largest Stage Diameter Stroke The largest sleeve OD Mounting distance
(mm) (mm) (mm) (mm)
FC-3-110-3205 3 110 3205 168 343
FC-3-110-3460 3 110 3460 168 343
FC-3-129-2980 3 129 2980 218 343
FC-3-129-3205 3 129 3205 218 343
FC-3-129-3460 3 129 3460 218 343
FC-3-129-3880 3 129 3880 218 343
FC-3-129-4270 3 129 4270 218 343
FC-4-129-4280 4 129 4280 218 343
FC-4-129-4280 4 129 4280 218 343
FC-4-129-5180 4 129 5180 218 343
FC-4-149-3680 4 149 3680 218 343
FC-4-149-3980 4 149 3980 218 343
FC-4-149-4280 4 149 4280 244 343
FC-4-149-4620 4 149 4620 244 343
FC-4-149-4940 4 149 4940 244 343
FC-4-149-5180 4 149 5180 244 343
FC-4-149-5460 4 149 5460 244 343
FC-4-169-4280 4 169 4280 244 343
FC-4-169-4620 4 169 4620 244 343
FC-4-169-4940 4 169 4940 244 343
FC-4-169-5180 4 169 5180 244 343
FC-4-169-5460 4 169 5460 244 343
FC-5-169-5355 5 169 5355 244 343
FC-5-169-5780 5 169 5780 244 343
FC-5-169-6180 5 169 6180 244 343
FC-5-169-6830 5 169 6830 244 343
FC-5-169-7130 5 169 7130 244 343
FC-5-169-7630 5 169 7630 244 343
FC-5-169-8130 5 169 8130 244 343
FC-5-169-9030 5 169 9030 244 343
FC-5-169-9530 5 169 9530 244 343
FC-4-191-5460 4 191 5460 274 343
FC-5-191-5780 5 191 5780 274 343
FC-5-191-6180 5 191 6180 274 343
FC-5-191-7130 5 191 7130 274 343
FC-5-191-7630 5 191 7630 274 343
FC-5-191-8130 5 191 8130 274 343
FC-5-191-9030 5 191 9030 274 343
FC-5-191-9530 5 191 9530 274 343
FC-5-214-7610 5 214 7610 274 343
FC-5-214-9030 5 214 9030 274 343

MODEL NO. Stage First Stage Diameter Stroke ΦO(Largest Sleeve OD) H*(Closed length) D*(Mounting distance)
[mm] [mm] [mm] [mm] [mm]
FC-3-107-2855 3 107 2855 152 1268 311
FC-3-107-3115 3 107 3115 152 1368 311
FC-3-107-3265 3 107 3265 152 1418 311
FC-3-107-3415 3 107 3415 152 1468 311
FC-3-107-3715 3 107 3715 152 1568 311
FC-3-126-3230 3 126 3230 219 1403 343
FC-3-126-3680 3 126 3680 219 1553 343
FC-3-126-3830 3 126 3830 219 1603 343
FC-3-126-4400 3 126 4400 219 1803 343
FC-4-126-4145 4 126 4145 219 1357 343
FC-4-126-4345 4 126 4345 219 1407 343
FC-4-126-4545 4 126 4545 219 1457 343
FC-4-126-4745 4 126 4745 219 1507 343
FC-4-126-4945 4 126 4945 219 1557 343
FC-4-126-5145 4 126 5145 219 1607 343
FC-3-145-3230 3 145 3230 219 1403 343
FC-3-145-3680 3 145 3680 219 1553 343
FC-3-145-3830 3 145 3830 219 1603 343
FC-4-145-4110 4 145 4110 219 1357 343
FC-4-145-4310 4 145 4310 219 1407 343
FC-4-145-4510 4 145 4510 219 1457 343
FC-4-145-4710 4 145 4710 219 1507 343
FC-4-145-4910 4 145 4910 219 1557 343
FC-4-145-5110 4 145 5110 219 1607 343
FC-4-145-5310 4 145 5310 219 1657 343
FC-4-145-5865 4 145 5865 219 1807 343
FC-5-145-4310 5 145 4310 219 1161 343
FC-4-165-4110 4 165 4110 244 1347 343
FC-4-165-4510 4 165 4510 244 1447 343
FC-4-165-4710 4 165 4710 244 1497 343
FC-4-165-4910 4 165 4910 244 1547 343
FC-4-165-5110 4 165 5110 244 1597 343
FC-4-165-5310 4 165 5310 244 1647 343
FC-4-165-5865 4 165 5865 244 1797 343
FC-5-165-5135 5 165 5135 244 1351 343
FC-5-165-5385 5 165 5385 244 1401 343
FC-5-165-5635 5 165 5635 244 1451 343
FC-5-165-6135 5 165 6135 244 1551 343
FC-5-165-6385 5 165 6385 244 1601 343
FC-5-165-6825 5 165 6825 244 1701 343
FC-5-165-7075 5 165 7075 244 1751 343
FC-5-165-7325 5 165 7325 244 1801 343
FC-5-165-7575 5 165 7575 244 1851 343
FC-5-165-7825 5 165 7825 244 1901 343
FC-5-165-8185 5 165 8185 244 2001 343
FC-5-165-8435 5 165 8435 244 2051 343
FC-5-187-5135 5
