Round Chrome Plated Rod Hydraulic Seamless Stainless Tube For Hydraulic Cylinder Pipe
Round Chrome Plated Rod Hydraulic Seamless Stainless Tube For Hydraulic Cylinder Pipe
Round Chrome Plated Rod Hydraulic Seamless Stainless Tube For Hydraulic Cylinder Pipe
Round Chrome Plated Rod Hydraulic Seamless Stainless Tube For Hydraulic Cylinder Pipe
Round Chrome Plated Rod Hydraulic Seamless Stainless Tube For Hydraulic Cylinder Pipe
Round Chrome Plated Rod Hydraulic Seamless Stainless Tube For Hydraulic Cylinder Pipe
Round Chrome Plated Rod Hydraulic Seamless Stainless Tube For Hydraulic Cylinder Pipe
Round Chrome Plated Rod Hydraulic Seamless Stainless Tube For Hydraulic Cylinder Pipe
Specifications
Brand Name :
DALLAST
Model Number :
Customized
Certification :
Gs, RoHS, Ce, ISO9001
Place of Origin :
Shandong
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, D/P, L/C
Supply Ability :
50,000 Pieces/Year
Delivery Time :
15-25 Days
Packaging Details :
Plywood Box or Pallet
Special Pipe :
Customized
Section Shape :
Round
Secondary :
Nonsecondary
Means of Transport :
Shipping
Test :
100% test
Honed Tube :
20-2000 mm， Heat Treatment
Piston Rod Chrome Plated :
Cr, Ni, or Ceramic
HS Code :
8412210000
Description

Round Seamless Hydraulic Stainless Tube for Hydraulic Cylinder Pipe

Specifications:

ASTM A106 Round Seamless Hydraulic Cylinder Pipe , Precision Annealed Steel Tubes

Quick Detail:

Standards: ASTM A106 Grade B

Material Grade: A519 SAE1026 / A519 SAE1518 / 16Mn / 25Mn / 20# / 45# / 27SiMn / ST45 / ST52 / E355

Size(mm):

ID : 45mm – 500mm

WT: 3mm – 50mm

Description:

Standards: ASTM A106 Grade B (20#)

(GB/T8713 GB/T3639 DIN2391 EN10305 ASTM A519)

Grade: ASTM A106 Grade B (20#)

Inside Dimensions: 45mm ~ 500mm

Wall Thickness: 3mm ~ 50mm

Length: max 24000mm

Application: Hydraulic Cylinder

Packing: Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection
Inspection and Test: Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test.
Surface treatment: Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.
Mark: As per customers' requested.

Delivery Condition: Annealed, Normalized, Normalized and Tempered.

Processing Range And Precision:

Cold Drawn Tubes:

ID:45mm-630mm

Length:14,000mm

Straightness:0.3-1.0

Precision:H8-H10

Roughness:Ra0.8-Ra1.6

Honing Tubes:

ID:25mm-500mm

Length:10,000mm

Straightness:0.3

Precision:H7-H8

Roughness:Ra0.2-Ra0.8

ID Tolerance of Precision Honed Tubes:

SIZE of I.D I.D.Tolerance Tolerance of wall thickness
H8 H9 H10
30 +0.0330 +0.0520 +0.0840

<120mm(O.D) ±5%

≥120mm(D.D) to 210mm ±7.5%

>210mm ±10%
>30-50 +0.0390 +0.0620 +0.1000
>50-80 +0.0460 +0.0740 +0.1200
>80-120 +0.0540 +0.0870 +0.1400
>120-180 +0.0630 +0.1000 +0.1600
>180-250 +0.0720 +0.1150 +0.185
>250-315 +0.0810 +0.1300 +0.2100
>315-400 +0.0890 +0.1400 +0.2300

Mechanical Propety:

Material: 20# 45#,16Mn St45, St52, 25Mn,27SiMn, SAE1026.SAE1518 etc.

STANDARD: GB/T8713 GB/T3639 DIN2391 EN10305 ASTM A519

Delivery condition cold finished(hard)(BK) cold drawn and stress relieved(BK+S)
STEEL GRADE Rm MPa Elongation (%) Rm MPa ReH MPa Elongation (%)
ASTM A106 Gr.B ≥550 ≥ 8 ≥ 520 ≥ 375 ≥ 15
45# ≥ 640 ≥ 5 ≥ 600 ≥ 520 ≥ 10
16Mn ≥ 640 ≥ 5 ≥ 600 ≥ 520 ≥ 14
25Mn ≥ 640 ≥ 5 ≥ 600 ≥ 510 ≥ 15
27SIMn ≥ 800 ≥ 5 ≥ 760 ≥ 610 ≥ 10
ST45 ≥ 550 ≥ 5 ≥ 520 ≥ 375 ≥ 15
E355(ST52) ≥ 640 ≥ 5 ≥ 600 ≥ 520 ≥ 14
SAE1026 ≥ 640 ≥ 5 ≥ 600 ≥ 510 ≥ 15

FAQ :

Q1: Are you a trading company or manufacturer?

A1: We are the manufacturer with Exporting License.

Q2: How long have you been in Hydraulic Cylinder industry?

A2: Our factory is built in year 2002 .

Q3: How long is your warranty period?

A3: We offer 12 months warranty period after on board.

Q4: How long does it take to process orders?

A4: It usually takes 15-25 days to process. We don’t have stock.

Q5: What’s your cylinder PPM?

A5: 5000 PPM. We do 100% inspection before delivery.

Q6: Have you been exported to overseas?

A6: We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.

Q7: Do your products support trade assurance?

A7:Yes, our products are all supported.

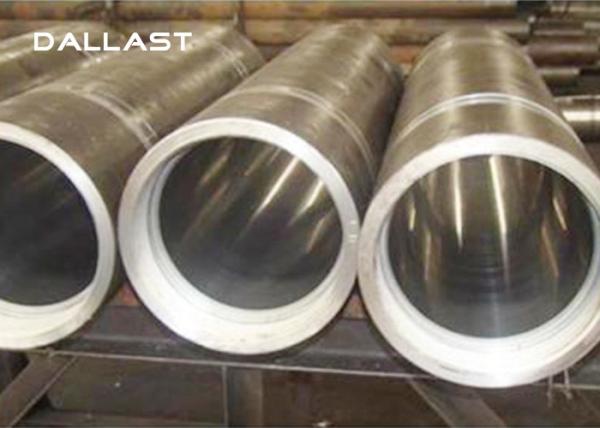

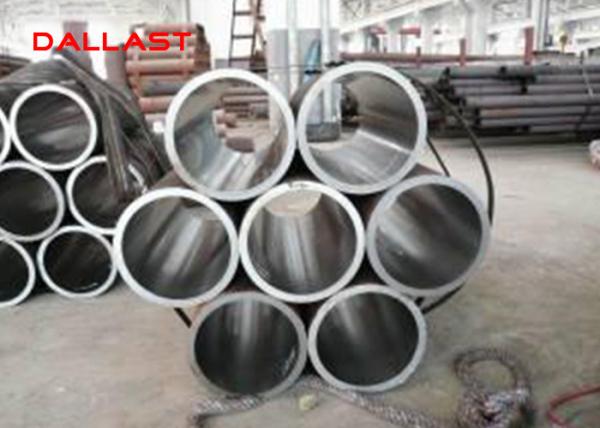

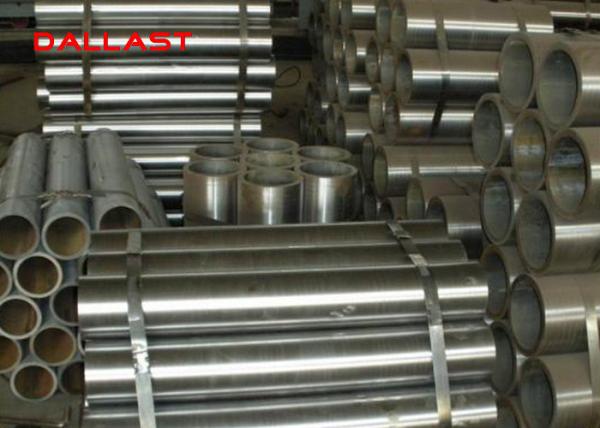

Product Show :

Round Chrome Plated Rod Hydraulic Seamless Stainless Tube For Hydraulic Cylinder Pipe
