Single Acting Hydraulic Lift Ram Long Stroke Telescopicing For Tipper Front Lifting
Single Acting Hydraulic Lift Ram Long Stroke Telescopicing For Tipper Front Lifting
Single Acting Hydraulic Lift Ram Long Stroke Telescopicing For Tipper Front Lifting
Single Acting Hydraulic Lift Ram Long Stroke Telescopicing For Tipper Front Lifting
Specifications
Brand Name :
DALLAST
Model Number :
custom
Certification :
GS, RoHS, CE, ISO9001
Place of Origin :
Qingdao, China
MOQ :
1 pieces
Price :
negotiation
Payment Terms :
T/T, Western Union, D/P, D/A, L/C
Supply Ability :
50000 pieces
Delivery Time :
15-25 work days per year
Packaging Details :
wooden case, carton box
pressure :
normal pressure
temperature :
-30℃~90℃
Piston rod Ø :
custom
function :
truck lift, hydraulic tilt cylinder
material :
steel, etc.
type :
telescopic hydraulic cylinder
Description

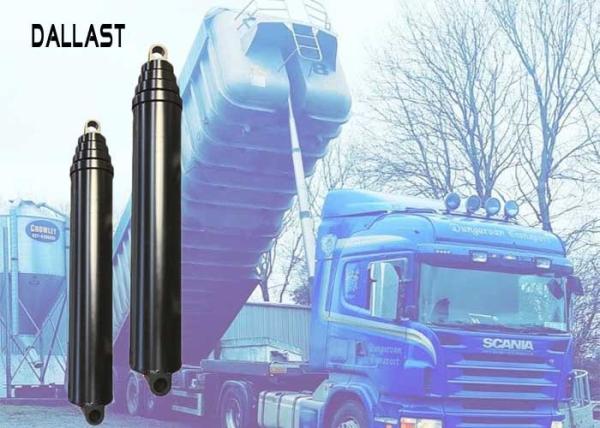

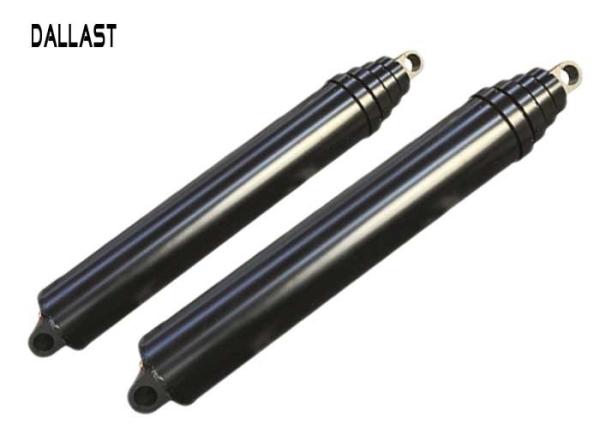

Single Acting Long Stroke Telescopicing Hydraulic Cylinder for Tipper Front Lifting

Parker Model No.

First

Stage

Diameter

 Stage Stroke(A) Closed Length(B) Open Length(C)
S53DC-66-72 3TG F5*72 5" 3 72"(1829mm) 37.19" (945mm) 109.19" (2773mm)
S53DC-66-84 3TG F5*84 5'' 3 84" (2134mm) 41.19" (1046mm) 125.19" (3180mm)
S53DC-65-107 3TG F5*107 5" 3 107.56" (2732mm) 48.38" (1229mm) 155.94" (3961mm)
S53DC-65-126 3TG F5*126 5" 3 126.63" (3216mm) 54.56" (1386mm) 181.19" (4602mm)
S63DC-101-86 3TG F6*86 6" 3 86.75" (2203mm) 40.88" (1038mm) 127.63" (3241mm)
S63DC-101-104 3TG F6*104 6" 3 103.94" (2640mm) 47" (1194mm) 150.94" (3834mm)
S63DC-101-107 3TG F6*107 6" 3 107.56" (2732mm) 48.38" (1289mm) 155.94" (3961mm)
S63DC-97-111 3TG F6*111 6'' 3 111" (2819mm) 49.94" (1268mm) 160.94" (4087mm)
S63DC-102-120 3TG F6*120 6'' 3 120" (3048mm) 53.5" (1359mm) 173.5" (4407mm)

Features:

Choice of Mounting Styles, Cross Tube or pin eye

Hard Chrome Plated Stages

Piston Ø: customized

Piston rod Ø: customized

Max. stroke speed: according to the product types

We use hard chromed rods (other options are available)

We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the

drawings and tell us the details.

Application:

Can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.

Advantdges:

Big lifting force; Higher efficiency; Stronger weather resistance; Better performance.

the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement.

The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections.

Warranty: We offer 12 months warranty.

Material:

Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.

After-sales service:
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc.


2. Pre-sale service and free consultation service.


3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.


4. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.


5. Service Center all over the world for after sales problems.

Tips:

In order to tilt a dump truck to angles of 60° or more, telescopic cylinders with strokes approaching the total bed length are required.
