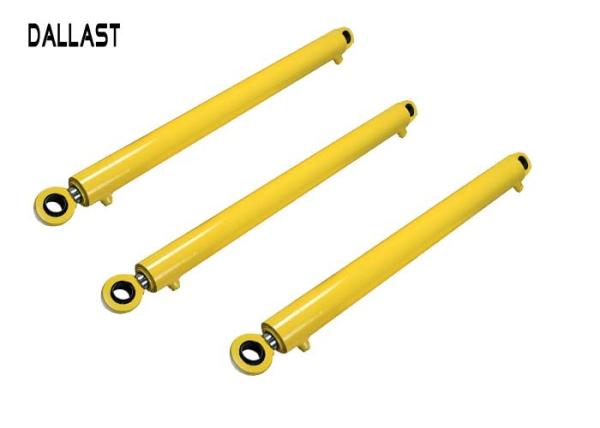

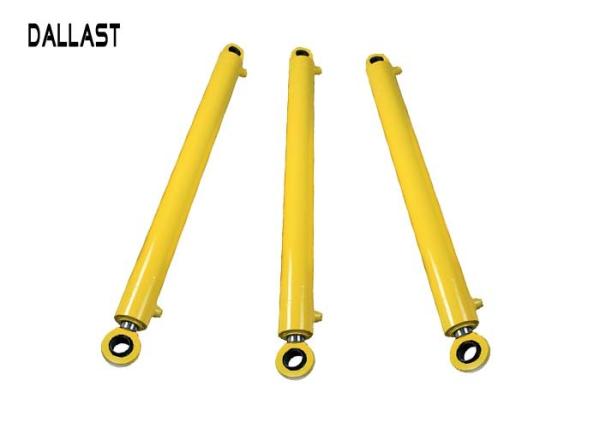

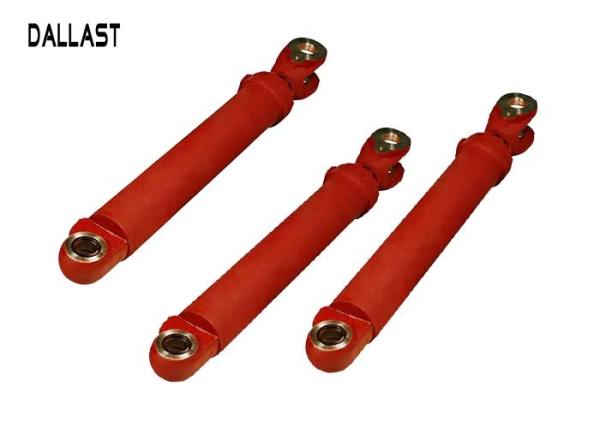

Double Acting Hydraulic RAM Chrome 2 INCH Bore Hydraulic Cylinder Piston
Double Acting Hydraulic RAM Chrome 2 INCH Bore Hydraulic Cylinder Piston
Double Acting Hydraulic RAM Chrome 2 INCH Bore Hydraulic Cylinder Piston
Double Acting Hydraulic RAM Chrome 2 INCH Bore Hydraulic Cylinder Piston
Double Acting Hydraulic RAM Chrome 2 INCH Bore Hydraulic Cylinder Piston
Double Acting Hydraulic RAM Chrome 2 INCH Bore Hydraulic Cylinder Piston
Specifications
Brand Name :
DALLAST or on request
Model Number :
customied
Certification :
GS, RoHS, CE, ISO9001
Place of Origin :
China
MOQ :
1 pieces
Price :
negotiation
Payment Terms :
T/T, Western Union, D/P, D/A, L/C
Supply Ability :
50000 pieces
Delivery Time :
20-30 work days or on request
Packaging Details :
wooden case, carton box
pressure :
1050- 4000PSI
temperature :
normal temperature
color :
yellow, red or on request
application :
on request
material :
stainless steel
rod size :
custom
Description

Double Acting Hydraulic RAM Chrome 2 INCH Bore Hydraulic Cylinder Piston

Application:

HSG series double acting single piston rod hydraulic cylinder, according to the use function is divided into : steering cylinder, boom cylinder, lifting cylinder, tilt cylinder and quick change cylinder, has the characteristics of connecting mode diversification and buffer device etc.. maining machinery and fire engines, sanitation vehicles and other special vehicles.

Features:

Piston Ductile Iron, for increase durability.
Tube Steel, Honed, and precision finished for extnded seal life.
Attachment Ductile Iron, threaded female clevis, adjustable with locking bolt.
Paint High quality paint for corrosion resistance.
Operating temperature -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen.

Notes:

Many mounting styles.

Several bore sizes and in varying strokes.

Cylinders are designed for normal or high operating pressures.

Many of these sizes are available for immediate delivery.

Introduction:

A double action hydraulic cylinder can move along the horizontal (x-axis) plane, the vertical (y-axis) plane or along any other plane of motion. This design uses pressurized hydraulic fluid to extend and retract the piston rod. This requires fluid ports at both ends of the actuator in order for the oil to be directed onto both sides to the piston.

Advantages:

a. Stronger weather resistance: The application new materials and special structures can adapt to different environment from cold to hot and can round-clock operation.

b. Rigid welded construction, high tensile welded steel end mounts, threaded gland and quality seals allow industrial cylinders to work in harsh conditions.

c. Speed range: Speed range of operation (excluding cushion parts) is less than 200mm/s. In accordance with customer requirements, the maker can also supply other ranges of speed.

d. Warranty: We offer 12 months warranty.

Installation method:

The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.

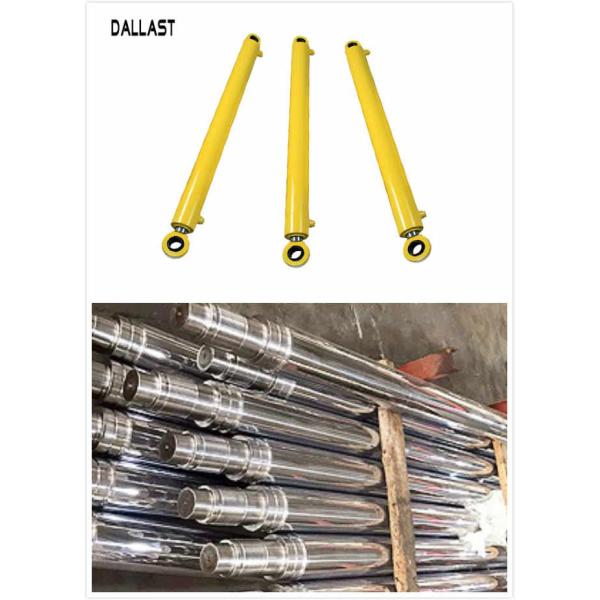

About piston rod:

High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.

Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.

Tips:

We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:

Double Acting Hydraulic RAM Chrome 2 INCH Bore Hydraulic Cylinder Piston
