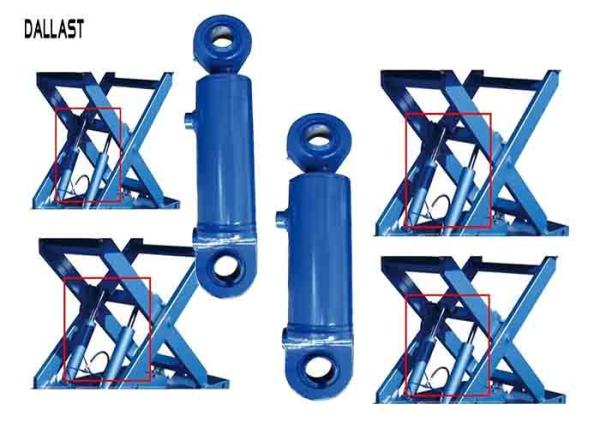

Hydraulic Mobile Scissor Lift Cylinder Double Acting Stroke 600 mm for Industry
Hydraulic Mobile Scissor Lift Cylinder Double Acting Stroke 600 mm for Industry
Hydraulic Mobile Scissor Lift Cylinder Double Acting Stroke 600 mm for Industry
Hydraulic Mobile Scissor Lift Cylinder Double Acting Stroke 600 mm for Industry
Hydraulic Mobile Scissor Lift Cylinder Double Acting Stroke 600 mm for Industry
Hydraulic Mobile Scissor Lift Cylinder Double Acting Stroke 600 mm for Industry
Specifications
Brand Name :
DALLAST
Model Number :
custom
Certification :
GS, RoHS, CE, ISO9001
Place of Origin :
Qingdao, China
MOQ :
1 pieces
Price :
negotiation
Payment Terms :
T/T, Western Union, D/P, D/A, L/C
Supply Ability :
50000 pieces
Delivery Time :
15-25 work days per year
Packaging Details :
wooden case, carton box
pressure rating :
ranging from 10-35 MPa
temperature :
normal temperature
bore diameter :
custom
rod size :
custom
application :
lift platform cylinder
mounting :
custom
Description

Hydraulic Mobile Scissor Lift Cylinder Double Acting Stroke 600 mm for Industry

This lift cylinder is designed for the purpose of lifting light vehicles(with low profile) under 3.2 tons for vehicle test, service and cleaning.

Advantdges:

Big lifting force; Higher efficiency; Stronger weather resistance; Better performance

Warranty: We offer 12 months warranty

Piston Ø customized
Piston rod Ø customized
Mounting choice of Mounting Styles, Cross Tube or Trunnion
Operature temperature

-30℃-80℃
Max. stroke speed according to the product types
Operating pressure 10-35 MPa
Stroke(mm) 500-4000 mm
Close length(mm) 100-1500 mm
Capacity(ton) 3-60 ton

We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the drawings and tell us the details.

QC:

The whole production procedure will be under regular inspection and strict quality control.

The complete machine will be tested to make sure they can work very well before being out of factory.

A cylinder (cylinder) consists of four parts:

1. Cylinder

2. Mounting types

3. Bottom

4. Bushing

Two piston rod (ROD) consists of three parts:

1. Rod

2. Earrings

3. Bushing

A. The above components; cylinder internal piston divided into two parts, respectively, large cavity and small cavity;

B. Large cavity refers to the piston rod is fully extended, the cylinder cavity;

C. Small cavity refers to the fully extended piston rod, cylinder and rod body cavity;

D. As the viscosity of hydraulic oil is relatively high, the compression ratio is very small, when the cylinder bottom oil into the oil, the piston will be pushed out of the cylinder head oil port, the piston rod to promote or retract movement, and vice versa .

About piston rod:

High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.

The most common problems when selecting a hydraulic cylinder are as follows:

A. Retract dimension (Center of pin to center of pin)

B. Stroke length (Inches)

C. Mounting types

D. Port Size and Type (SAE or NPT)

E. Pressure rating (PSI)

F. Bore Diameter (Inches)

G. Application details

Hydraulic Mobile Scissor Lift Cylinder Double Acting Stroke 600 mm for Industry

Hydraulic Mobile Scissor Lift Cylinder Double Acting Stroke 600 mm for Industry
