Multi Stage Telescopic Hydraulic Cylinder for Dump Trailer Telescoping Small Bore Size
Multi Stage Telescopic Hydraulic Cylinder for Dump Trailer Telescoping Small Bore Size
Multi Stage Telescopic Hydraulic Cylinder for Dump Trailer Telescoping Small Bore Size
Multi Stage Telescopic Hydraulic Cylinder for Dump Trailer Telescoping Small Bore Size
Multi Stage Telescopic Hydraulic Cylinder for Dump Trailer Telescoping Small Bore Size
Multi Stage Telescopic Hydraulic Cylinder for Dump Trailer Telescoping Small Bore Size
Specifications
Brand Name :
DALLAST
Model Number :
custom
Certification :
GS, RoHS, CE, ISO9001
Place of Origin :
Qingdao, China
MOQ :
1 pieces
Price :
negotiation
Payment Terms :
T/T, Western Union, D/P, D/A, L/C
Supply Ability :
50000 pieces
Delivery Time :
15-25 work days per year
Packaging Details :
wooden case, carton box
pressure :
normal pressure
temperature :
normal temperature
design :
custom
function :
truck lift, hydraulic tilt cylinder
direction :
single acting
material :
stainless steel, alloy steel, etc.
Description

Single Acting Hydraulic Cylidner for Dump Trailer Telescoping Multi Stage Small Bore Size

About our cylinders

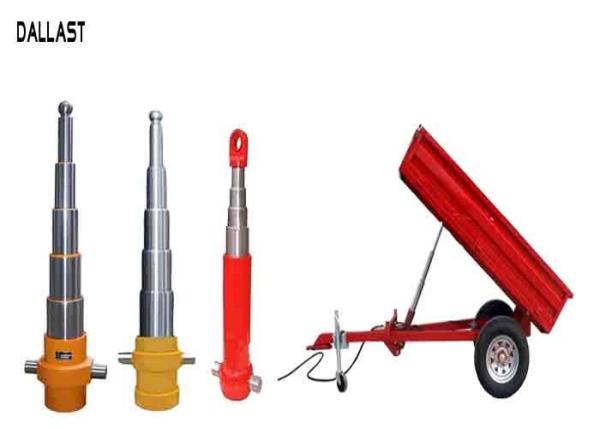

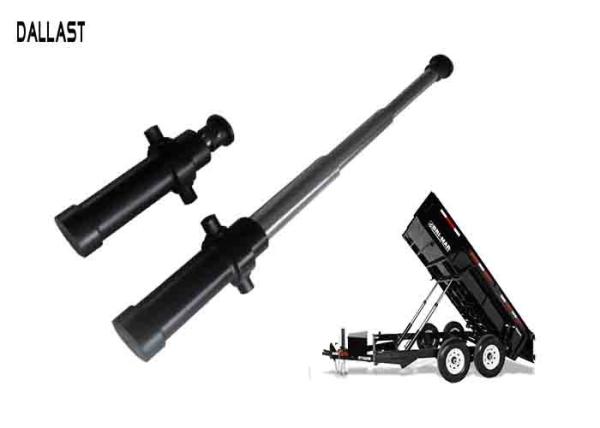

Application: Our telescopic hydraulic cylinder adopted new technology and new material and they also can be self-developed. Could be used for agricultural vehicles and other vehicles tilting the bucket lift cylinder. With many advantages, such as rational construction, reliable performance, convenient maintenance, heavy goods lift, long life, etc. In order to tilt a dump truck to angles of 60° or more, telescopic cylinders with strokes approaching the total bed length are required.

Advantdges: The number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement. The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections.

Our warranty of trailer cylinder is one year. So if there is any problem about the quality, please tell us without hesitation. Our technician will serve for you! We are sincerely hope to cooperate with you and establish a long term relationship with you. So we always focus on quality, not price!

Features:

Pressure ranges: could be customized

Piston Ø: customized

Piston rod Ø: customized

Max. stroke speed: according to the product types

We use hard chromed rods (other options are available)

standard product type

pressure

(Bar)

bore size

(mm)

rod size

(mm)

stroke

(mm)

close length

(mm)

Stage

3TG-E150*3830EZ 160 150 98 840 1635 3
3TG-E150*3360EZ 160 150 96 1000 1370 3
4TG-E150*4400EZ 160 150 100 1000 1390 4
4TG-E180*4595EZ 160 180 100 1200 1500 4
3TG-E150X850QZ 160 150 96 850 1500 3
4TG-E130X800QZ 160 130 80 850 1500 4
5TG-E130X800QZ 160 130 75 850 1500 5
5TG-E140X800QZ 160 140 75 850 1500 5

We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the

drawings and tell us the details.

The most common problems when selecting a hydraulic cylinder are as follows:

A. Retract dimension (Center of pin to center of pin)

B. Stroke length (Inches)

C. Mounting types

D. Port Size and Type (SAE or NPT)

E. Pressure rating (PSI)

F. Bore Diameter (Inches)

G. Application details

Multi Stage Telescopic Hydraulic Cylinder for Dump Trailer Telescoping Small Bore Size
