Single Acting Hydraulic Cylinder Telescopic Vertical for Dumper Tipper Trailer
Single Acting Hydraulic Cylinder Telescopic Vertical for Dumper Tipper Trailer
Single Acting Hydraulic Cylinder Telescopic Vertical for Dumper Tipper Trailer
Single Acting Hydraulic Cylinder Telescopic Vertical for Dumper Tipper Trailer
Single Acting Hydraulic Cylinder Telescopic Vertical for Dumper Tipper Trailer
Single Acting Hydraulic Cylinder Telescopic Vertical for Dumper Tipper Trailer
Specifications
Brand Name :
DALLAST
Model Number :
Standard , Non-standard
Certification :
GS CE ISO9001-2009 TS16949
Place of Origin :
Shandong
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union,paypal
Supply Ability :
50000PCS per year
Delivery Time :
20- 25 days after down payment
Packaging Details :
shrink film, pallet, plywood case and carton box
Model :
One Way Hydraulic Cylinder
Structure :
Welded hydraulic cylinder
Stage :
3 4 5 6 Multi Stage
Lifting Capacity :
13 - 110 Ton
Stroke :
3000mm-11000mm
Mounting Type :
Earring-trunnion, double trunnion, double earring,Hinge shaft
Coating :
Chrome plated
Description

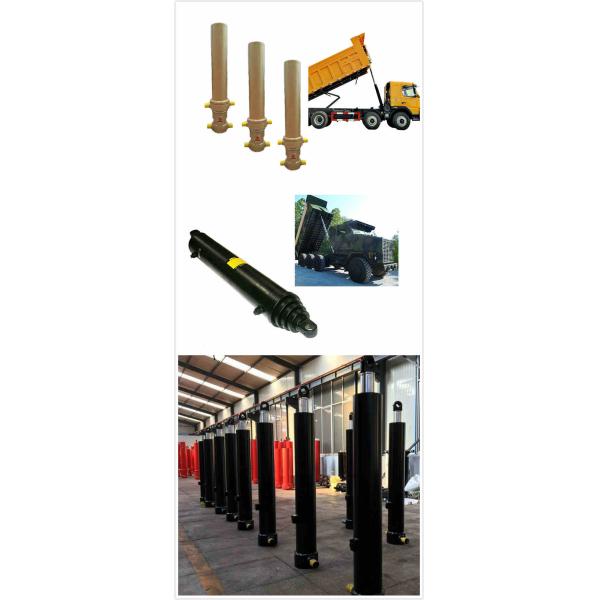

Single Acting Telescopic Vertical Hydraulic Ram for Dumper Tipper Trailer

Application: Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Farm Truck etc;

Product Descripition :

Material:Alloy steel,Carbon steel,Stainless steel,27SiMn

Rod :Chrome plated and quenched.Has good mechanical properties, long service life

Cylinder:Honing machining /boring /rolling

Model

Rod diameter

(mm)

Pressure

(bar)

Lift tonnage

(ton)

Weight

(kg)

 Volume

Turck bed length

(m)
3TG-150-4230 110mm 220 64-81 308 62L 5.2-5.6
4TG- 172-4310 110mm 220 66-106 317 74L 5.4-5.8
4TG-172-5110 110mm 220 62-96 356 88L 6.2-6.8
4TG- 172-5390 110mm 220 61-98 368 93L 6.5-7.2
4TG- 172-5630 110mm 220 61-100 379 97L 6.8-7.6
4TG- 196-5340 129mm 220 85-108 391 121L 6.5-7.2
4TG- 196-5580 129mm 220 84-105 400 126L 6.8-7.6
4TG- 196-5820 129mm 220 83-106 412 131L 7.2-8.0
4TG- 196-6100 129mm 220 82-106 427 137L 7.6-8.2
5TG- 196-5950 110mm 220 80-106 390 120L 7.6-8.0
5TG- 196-6350 110mm 220 60-98 408 128L 7.8-8.2
5TG- 196-6500 129mm 220 60-98 425 133L 8.2-8.5
5TG- 196-7300 129mm 220 59-80 453 147L 9.0-9.5

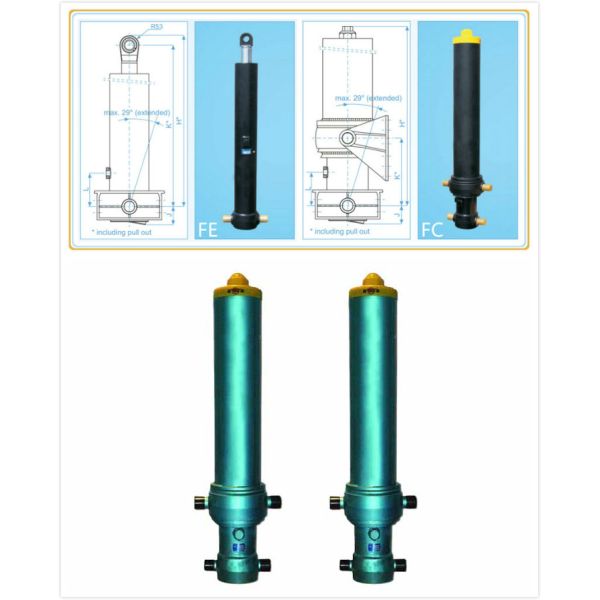

FE Type Hydraulic Cylinder
Model Lifting capacity(Ton) Rated pressure(MPa) Bore diameter
(mm)
FE-3-E152*3880 28.3 16 158/136/115
FE-3-E152*4090 28.3 16 158/136/115
FE-4-E152*4280 28.3 16 158/136/115/95
FE-4-E152*4650 28.3 16 158/136/115/95
FE-4-E152*4940 28.3 16 158/136/115/95
FE-4-E175*4280 49 16 175/158/136/115
FE-4-E175*4620 49 16 175/158/136/115
FE-4-E175*5180 49 16 175/158/136/115
FE-5-E175*5780 49 16 175/158/136/115/95
FE-5-E175*6180 49 16 175/158/136/115/95
FE-6-E175*6060 49 16 175/158/136/115/95/70
FE-6-E175*6060 49 16 175/158/136/115/95/70
FE-5-E200*6180 64 16 200/175/158/136/115
FE-5-E200*6350 64 16 200/175/158/136/115

Cylinder Advantages:

  • Professional manufacturer& supplier of Hydraulic Cylinders
  • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification
  • Experience in export North America, Australia, Asia, Middle East, Africa
  • Hydraulic Cylinders can be Make according to client's requirements
  • One year warranty and long time track service is offered to solve any problems you meet after sale.

1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping

3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.

4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.

5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

6.Certification
Should your products require testing and certification to comply with international standards, we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.

Single Acting Hydraulic Cylinder Telescopic Vertical for Dumper Tipper Trailer

Single Acting Hydraulic Cylinder Telescopic Vertical for Dumper Tipper Trailer
