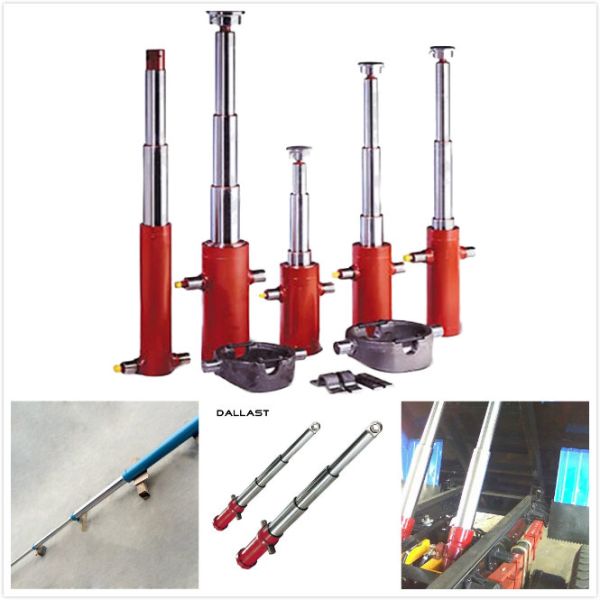

One way Telescopic Multi Stage Agricultural Dump Trailer Hydraulic Cylinder

Application: The Hydraulic Cylinders can be used for Agricultural Vehicles ,Tricycle ,Sanitation Vehicles Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;

Retractable multi-stage sleeve hydraulic cylinder is a long stroke multi-stage sleeve piston rod hydraulic cylinder, retractable hydraulic cylinder, also known as retractable sleeve hydraulic cylinder or multi-stage hydraulic cylinder.
Telescopic hydraulic cylinder is composed of two or more piston hydraulic cylinder set, the piston rod of the previous stage piston cylinder is the cylinder of the latter piston cylinder.
When pressure oil enters from the rodless chamber, the cylinder with the largest effective area of the piston starts to protrude. When the line reaches the end point, the cylinder with the effective area of the piston begins to protrude.
Telescopic hydraulic stretching out in order from large to small in order to obtain a long working stroke, the effective cylinder extending the smaller the area, the faster the rate of extension.
Therefore, the slow out faster, the corresponding hydraulic thrust from large to small; this thrust, speed changes, is suitable for a variety of automatic loading and unloading machinery on the thrust and speed requirements.

TG series hydraulic cylinder for vechiles

We have professional R&D team with rich design experience.
We also establish strict but scientific product testing system so that products have perfect performance.

Please kindly send us your drawings, models or providing us your parameters and
specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length, vehicle body length, etc. We can determine the most suitable model for you.
