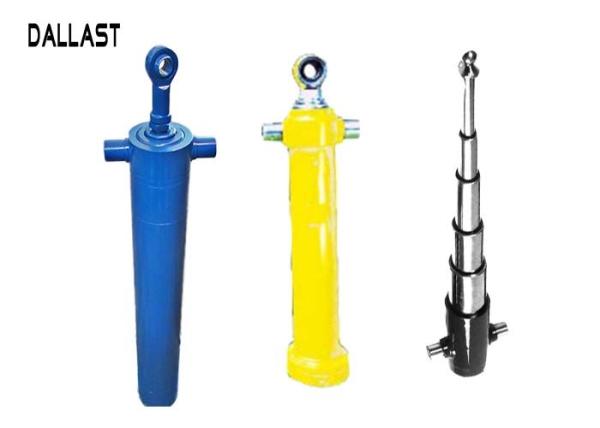

Vertical Hydraulic Ram Single Acting Telescopic Hydraulic Cylinders Multi Stage Front Middle Foot Fixed Axle
Vertical Hydraulic Ram Single Acting Telescopic Hydraulic Cylinders Multi Stage Front Middle Foot Fixed Axle
Vertical Hydraulic Ram Single Acting Telescopic Hydraulic Cylinders Multi Stage Front Middle Foot Fixed Axle
Vertical Hydraulic Ram Single Acting Telescopic Hydraulic Cylinders Multi Stage Front Middle Foot Fixed Axle
Vertical Hydraulic Ram Single Acting Telescopic Hydraulic Cylinders Multi Stage Front Middle Foot Fixed Axle
Vertical Hydraulic Ram Single Acting Telescopic Hydraulic Cylinders Multi Stage Front Middle Foot Fixed Axle
Specifications
Brand Name :
DALLAST
Model Number :
custom
Certification :
GS, RoHS, CE, ISO9001
Place of Origin :
Qingdao
MOQ :
1 pieces
Price :
negotiation
Payment Terms :
T/T, Western Union, D/P, D/A, L/C
Supply Ability :
50000 pieces
Delivery Time :
15-25 work days per year
Packaging Details :
wooden case, carton box
type :
single acting cylinder
temperature :
normal temperature
axle design :
custom
rod material :
steel, or on request
bore size :
custom
pressure :
10-35 MPa
Description

Vertical Hydraulic Ram Single Acting Telescoping Multi Stage Front Middle Foot Fixed Axle

Features:

Single acting cylinders transfer force and motion in one direction only; good quality and low noise; the oil way design perfectly and can save the energy, avoid wast; acts on the piston to push the piston rod out.

Advantages:

When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement; samples can be provide to you before starting cooperation.

We are factory and can assure the prompt delivery time. Packing can be customized, often using standard export wooden case packing.

The single acting telescopic hydraulic cylinders produced in DALLAST company are mainly used on: tipping trailer; dump truck; side tipping vehicle;compressed equipment,etc.

Quality control:

1. We have professional quality control department,every step from raw material to finished product

is in the same factory,each procedure will be tested by professional inspector.

2. Before hydraulic cylinder is assemblied , every spare parts would be measured and cleaned .

After hydraulic cylinder is assemblied , Pressure test would be carried out one by one.We ensure the

testing pressure is 30%-50% higher than rated pressure in almost one hour's test.Each hydraulic

cylinder must be tested without any leakage.

Single Acting Hydraulic Cylinder
composition benefits
Gland High grade ductile iron
Tube Cold drawn honed tubing
Piston High grade ductile iron
Piston rod Chromed C45
Piston seal Urethane seal
Rod wiper Urethane snap in
Paint color Semi-gloss black, gray, red etc.
feature (1) Low noise:Good quality and low noise.
(2) Low energy:The oil way design perfectly and can save the energy,avoid wast.
(3) Save the space:The pump connected with the motor directly can save the space.
(4) There are various kinds and can meet the different requirement.
(5) Use the standard oil way and control oil way,easy to service.
(6) Can produce according to the requirement of the customer or drawing.

(7) Warranty: We offer 12 months warranty.

Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.

And we can OEM & ODM, If you are interested in our hydraulic RAM, please feel free to contact us.

After-sales service:
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
6. Service Center all over the world for after sales problems.
