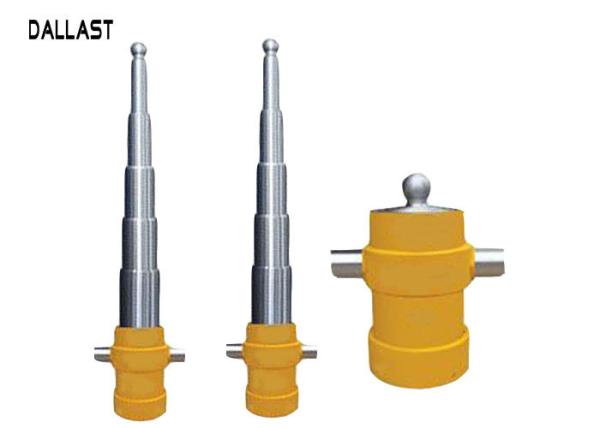

Hydraulic Oil Cylinder Single Acting Telescopic 5 Stage 6 Inch Bore Size
Hydraulic Oil Cylinder Single Acting Telescopic 5 Stage 6 Inch Bore Size
Hydraulic Oil Cylinder Single Acting Telescopic 5 Stage 6 Inch Bore Size
Hydraulic Oil Cylinder Single Acting Telescopic 5 Stage 6 Inch Bore Size
Hydraulic Oil Cylinder Single Acting Telescopic 5 Stage 6 Inch Bore Size
Hydraulic Oil Cylinder Single Acting Telescopic 5 Stage 6 Inch Bore Size
Specifications
Brand Name :
DALLAST
Model Number :
custom
Certification :
GS, RoHS, CE, ISO9001
Place of Origin :
Qingdao
MOQ :
1 pieces
Price :
negotiation
Payment Terms :
T/T, Western Union, D/P, D/A, L/C
Supply Ability :
50000 pieces
Delivery Time :
15-25 work days per year
Packaging Details :
wooden case, carton box
power :
hydraulic
pressure direction :
single acting
pressure :
16-35MPa
temperature :
normal or high temperature
color :
any color you can choose
HS Code :
8412210000
OD :
custom
ID :
custom
Description

Hydraulic Cylinder Single Acting Telescopic Multi Stage 5 Stage 6 Inch Bore Size

Application: dump trailers, aerial trucks, lift tables and the list goes on...

Type

Stroke

(mm)

Installation center distance

(mm)

Bore size

(mm)

 Stage Capacity
(ton)		 Pressure
(Bar)
5TG-E150X850QZ 850 150 150 5 28.26 160
5TG-E130X800QZ 800 125 130 5 21.23 160
5TG-E130X800QZ 800 115 130 5 21.23 160
5TG-E140X800QZ 800 115 140 5 24.62 160
5TG-E140X1000QZ 1000 125 140 5 24.62 160

Features:
Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All cylinder products carry an 12 months warranty. Snap on glass filled bearings that absorb contaminants without damaging cylinder walls. Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing nuts backing off.


Single-acting cylinders transfer force and motion in one direction only. Acts on the piston to push the piston rod out.

When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement.

Piston rod:

All our piston rods are hard protection coated, such as hard chrome plate, or if required, can be coated with an alternative treatment more suitable to the application.

High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters.

Warranty:
We offer 12 months warranty.

From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.

The most common problems when selecting a hydraulic cylinder are as follows:

A. Retract dimension (Center of pin to center of pin)

B. Stroke length (Inches)

C. Mounting types

D. Port Size and Type (SAE or NPT)

E. Pressure rating (PSI)

F. Bore Diameter (Inches)

G. Application details

After-sales service:
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
6. Service Center all over the world for after sales problems.
