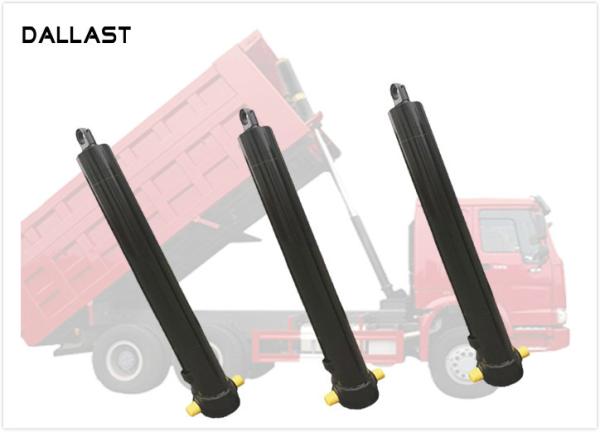

Parker Hyva Single Acting Long Stroke Hydraulic Lift Cylinder for Dump Truck
We have technology terms and can design drawing according to provided information for your review.
We are solding our products to nearly the whole global.
Appreciate for your kind help, we will be able to offer you the correct and exact quotation as soon as we got
your inquiry.Thank you!
We are Chinese Cylinder manufacturer offer best Oil Cylinder OEM, ODM, service.
Custom Hydraulic Cylinder (OEM):
Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
trucks according to the drawing from customers,but also we could make a design according to
customers’requirements . If you require our engineer to make a design , please advise us the
following specification :
1. Rated pressure
2. Working pressure
3. Test pressure
4. Working condition and environment ,for example ,temperature ,working frequency
5. Pulling force ,and return stroke force
6. Pulling and return speed
7. Assembly size
8. Seal ring requirements .For example , brand ,seal material etc .
9. Tube and piston rod raw material requirements
10. Piston rod surface treatment requirements, for example chromating film thickness ,
Surface hardness etc .
11. Painting and other spare parts requirements .
Three advantages for hydraulic cylinder:
1. Longer serve life.
By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure
fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!
2. More strong stability.
Stability optimization design, improve the long box lifting high stability, reduce rollover risk!
3. Lift More.
Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!
Attention:
1. We have special departments to ensure that no strict quality control any quality problem before delivery.
2. Carefully check goods size table and product specifications. Please check detail with customer service before buying
3. Receiving or take the goods, please sign the bill after the first inspection, if have damaged items, or a few goods phenomenon, please do not sign, the first contact with the customer details and make logistics company personnel or personnel in proof of delivery after processing, or receipt of any problems after the Seller shall not be held responsible.
Parameter:
Single Acting Hydraulic Cylinder | ||||||
Model | Extended Stages | Working Pressure | Max. stage | Max. stroke | Lifting Capacity | Suitable Length of Truck Body |
(MPa) | Diameter(mm) | (mm) | (ton) | (m) | ||
129-3E-3880 | 3 | 16-19 | 129 | 3880 | 20-35 | 5.2 |
149-3E-3880 | 3 | 16-19 | 149 | 3880 | 25-45 | 5.2 |
149-3E-4280 | 3 | 16-19 | 149 | 4280 | 25-45 | 5.6 |
149-4E-3880 | 4 | 16-19 | 149 | 3880 | 25-40 | 5.2 |
149-4E-4280 | 4 | 16-19 | 149 | 4280 | 25-40 | 5.6 |
169-4E-4280 | 4 | 16-19 | 169 | 4280 | 30-50 | 5.2-5.6 |
169-4E-4640 | 4 | 16-19 | 169 | 4640 | 32-55 | 5.6-6.1 |
169-4E-5000 | 4 | 16-19 | 169 | 5000 | 32-60 | 6.2-6.8 |
169-4E-5180 | 4 | 16-19 | 169 | 5180 | 32-60 | 6.2-6.9 |
169-4E-5390 | 4 | 16-19 | 169 | 5390 | 32-60 | 6.2-6.9 |
169-4E-5460 | 4 | 16-19 | 169 | 5460 | 32-60 | 6.5-7.3 |
185-4E-4280 | 4 | 16-19 | 185 | 4280 | 25-45 | 5.6 |
185-4E-4640 | 4 | 16-19 | 185 | 4640 | 30-45 | 5.6-6.1 |
185-4E-5000 | 4 | 16-19 | 185 | 5000 | 32-50 | 6.2-6.5 |
185-4E-5780 | 4 | 16-19 | 185 | 5780 | 45-70 | 6.9-7.7 |
185-4E-6000 | 4 | 16-19 | 185 | 6000 | 50-80 | 7.3-8.2 |
191-5E-5780 | 5 | 16-19 | 191 | 5780 | 40-70 | 6.9-7.7 |
191-5E-6200 | 5 | 16-19 | 191 | 6200 | 45-80 | 7.3-8.2 |
191-5E-7130 | 5 | 16-19 | 191 | 7130 | 50-85 | 7.8-8.5 |
191-5E-9030 | 5 | 16-19 | 191 | 9030 | 55-90 | 10.0-11.0 |
This product is used in numerous application including: 1. Dump truck, 2. Pump trucks, 3. Truck mounted crane, 4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders |
FAQ:
Questions: | Answers: |
1. Compared with Hyva cylinder, what are your cylinder advantages? | 1. Tubes are chrome plated. 2. Tubes are quenched and tempered. |
2. Compared with Hyva cylinder, what are your cylinder advantages? | 1. Tubes are chrome plated. 2. Tubes are quenched and tempered. |
3. Are you a manufacturer? | Yes, we have been in this sector for nearly 15 years. We produce hydraulic cylinder hydraulic power unit for nearly 15 years. |
4. Do your products come with a warranty? | Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you. |
5. How do you deliver the products? | By sea, By plane, By couriers. |

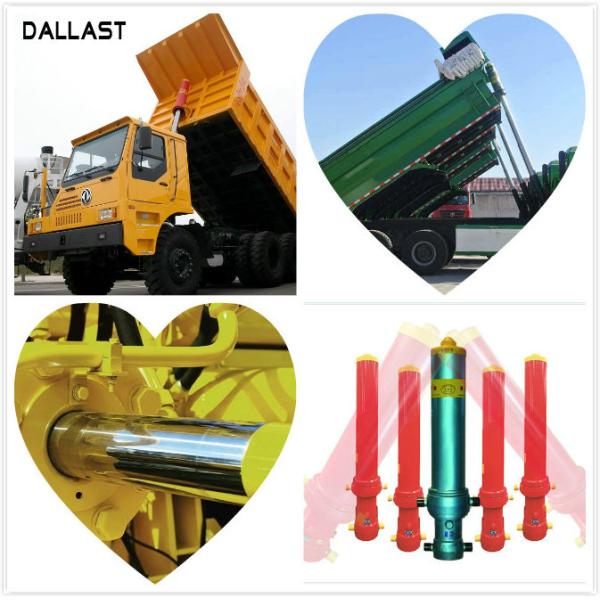

Product Show:
