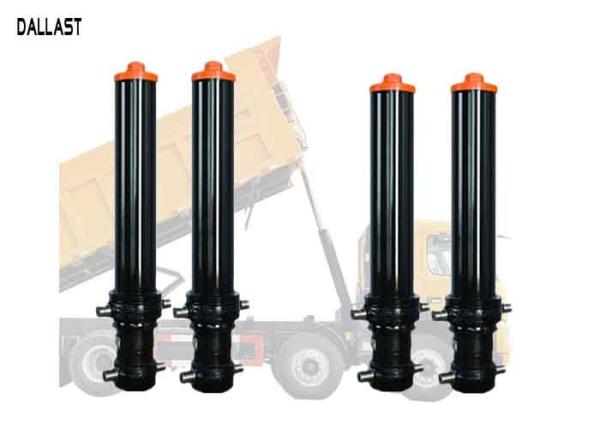

OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size
OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size
OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size
OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size
OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size
OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size
Specifications
Brand Name :
DALLAST
Model Number :
custom
Certification :
GS, RoHS, CE, ISO9001
Place of Origin :
Qingdao, China
MOQ :
1 pieces
Price :
negotiation
Payment Terms :
T/T, Western Union, D/P, D/A, L/C
Supply Ability :
50000 pieces
Delivery Time :
15-25 work days per year
Packaging Details :
wooden case, carton box
pressure :
normal pressure
temperature :
-30℃~90℃
rod diameter :
custom
function :
truck lift, hydraulic tilt cylinder
material :
stainless steel, steel, etc.
cylinder tube :
custom
Description

OEM Single Acting Hydraulic Lift Cylidner 3 4 5 Stages FC 8 Foot 48 Inch Bore Size

Features:

Choice of Mounting Styles, Cross Tube or Trunnion

Hard Chrome Plated Stages

Piston Ø: customized

Piston rod Ø: customized

Max. stroke speed: according to the product types

We use hard chromed rods (other options are available)

FC Type Hydraulic Cylinder
MODEL NO Stage

Largest Stage

Diameter

 Stroke The largest sleeve OD Mounting distance
(mm) (mm) (mm) (mm)
FC-3-110-3205 3 110 3205 168 343
FC-3-129-3880 3 129 3880 218 343
FC-3-129-4270 3 129 4270 218 343
FC-4-129-4280 4 129 4280 218 343
FC-4-129-4280 4 129 4280 218 343
FC-4-129-5180 4 129 5180 218 343
FC-5-191-7630 5 191 7630 274 343
FC-5-191-8130 5 191 8130 274 343
FC-5-191-9030 5 191 9030 274 343
FC-5-191-9530 5 191 9530 274 343
FC-5-214-7610 5 214 7610 274 343

Tips:

In order to tilt a dump truck to angles of 60° or more, telescopic cylinders with strokes approaching the total bed length are required.

We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the

drawings and tell us the details.

Application:

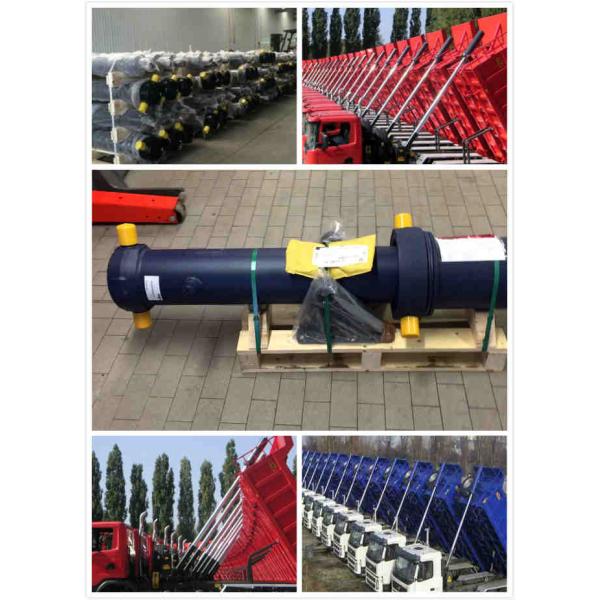

Can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.

Advantdges:

Big lifting force; Higher efficiency; Stronger weather resistance; Better performance

the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement

The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections

Warranty: We offer 12 months warranty

Material:

Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.

The most common problems when selecting a hydraulic cylinder are as follows:

A. Retract dimension (Center of pin to center of pin)

B. Stroke length (Inches)

C. Mounting types

D. Port Size and Type (SAE or NPT)

E. Pressure rating (PSI)

F. Bore Diameter (Inches)

G. Application details

OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size
