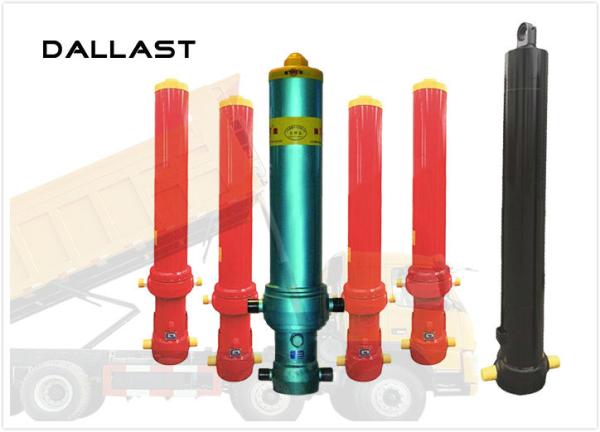

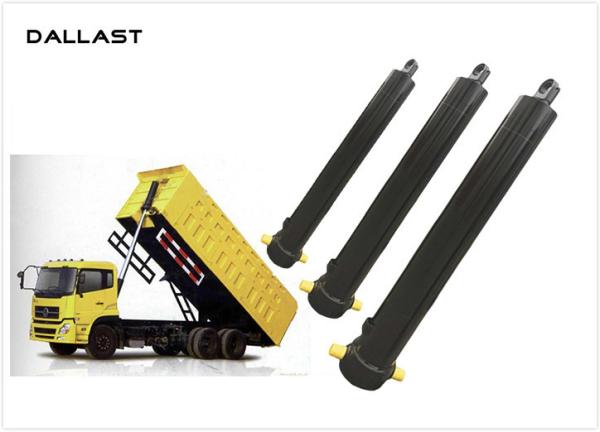

RoHS Parker Hydraulic Lift Cylinder Long Stroke Chrome for Tipper Truck
RoHS Parker Hydraulic Lift Cylinder Long Stroke Chrome for Tipper Truck
RoHS Parker Hydraulic Lift Cylinder Long Stroke Chrome for Tipper Truck
RoHS Parker Hydraulic Lift Cylinder Long Stroke Chrome for Tipper Truck
RoHS Parker Hydraulic Lift Cylinder Long Stroke Chrome for Tipper Truck
RoHS Parker Hydraulic Lift Cylinder Long Stroke Chrome for Tipper Truck
Specifications
Brand Name :
Dallast
Model Number :
Customized
Certification :
Gs, RoHS, Ce, ISO9001
Place of Origin :
Shandong, China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C, D/P
Supply Ability :
1 Piece Per Year
Delivery Time :
15-25 Days
Packaging Details :
Plywood Box or Pallet or as your requirements
Work Temperature :
Normal Temperature
Power :
Hydraulic
Hardness :
HRC 45-55
Honed Tube :
20-2000mm， Heat Treatment
Material :
20#, 45# Steel, 21#, 27# SiMn
Description

Parker Single Acting Long Stroke Chrome Hydraulic Lift Cylinders for Tipper Truck

We have technology terms and can design drawing according to provided information for your review.

We are solding our products to nearly the whole global.

Appreciate for your kind help, we will be able to offer you the correct and exact quotation as soon as we got

your inquiry.Thank you!
We are Chinese Cylinder manufacturer offer best Oil Cylinder OEM, ODM, service.

Good hoice for our hydraulic cylinder:

1. With Rolling technology, the cylinders are straighter, the surface are harder and its quality is more durable.

2. All piston rod have to go through comprehensive processing: Heat treating Lathing Grinding Polishing Hard chrome plating Polishing, this comprehensive processing make the cylinder harder, wearable and acid-proof.

3. Using imported materials for seal kits.

4. The structure kits are made by high-strength Manganese plate.

5. Advanced surface treatment:

A. Environmental automatically pipelined painting.

B. Cleaning with automatic washing machine.

C. Assembling in seal clean workshop.

Attention:

1. We have special departments to ensure that no strict quality control any quality problem before delivery.

2. Carefully check goods size table and product specifications. Please check detail with customer service before buying

3. Receiving or take the goods, please sign the bill after the first inspection, if have damaged items, or a few goods phenomenon, please do not sign, the first contact with the customer details and make logistics company personnel or personnel in proof of delivery after processing, or receipt of any problems after the Seller shall not be held responsible.

Parameter:

Model Extended
Stages		 Working Pressure Max. stage Max. stroke Lifting
Capacity		 Suitable Length of Truck Body
(MPa) Diameter(mm) (mm) (ton) (m)
129-3E-3880 3 16-19 129 3880 20-35 5.2
149-3E-3880 3 16-19 149 3880 25-45 5.2
149-3E-4280 3 16-19 149 4280 25-45 5.6
149-4E-3880 4 16-19 149 3880 25-40 5.2
149-4E-4280 4 16-19 149 4280 25-40 5.6
169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
169-4E-5000 4 16-19 169 5000 32-60 6.2-6.8
169-4E-5180 4 16-19 169 5180 32-60 6.2-6.9
169-4E-5390 4 16-19 169 5390 32-60 6.2-6.9
169-4E-5460 4 16-19 169 5460 32-60 6.5-7.3
185-4E-4280 4 16-19 185 4280 25-45 5.6
185-4E-4640 4 16-19 185 4640 30-45 5.6-6.1
185-4E-5000 4 16-19 185 5000 32-50 6.2-6.5
185-4E-5780 4 16-19 185 5780 45-70 6.9-7.7
185-4E-6000 4 16-19 185 6000 50-80 7.3-8.2
191-5E-5780 5 16-19 191 5780 40-70 6.9-7.7
191-5E-6200 5 16-19 191 6200 45-80 7.3-8.2
191-5E-7130 5 16-19 191 7130 50-85 7.8-8.5
191-5E-9030 5 16-19 191 9030 55-90 10.0-11.0

This product is used in numerous application including:

1. Dump truck,

2. Pump trucks,

3. Truck mounted crane,

4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders

Three advantages for hydraulic cylinder:

1. Longer serve life.

By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure

fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!

2. More strong stability.

Stability optimization design, improve the long box lifting high stability, reduce rollover risk!

3. Lift More.

Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!

FAQ:

Question: Answer:
1. Compared with Hyva cylinder, what are your cylinder advantages?

1. Tubes are chrome plated.

2. Tubes are quenched and tempered.
2. Compared with Hyva cylinder, what are your cylinder advantages?

1. Tubes are chrome plated.

2. Tubes are quenched and tempered.
3. Are you a manufacturer? Yes, we have been in this sector for nearly 15 years. We produce hydraulic cylinder hydraulic power unit for nearly 15 years.
4. Do your products come with a warranty? Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you.

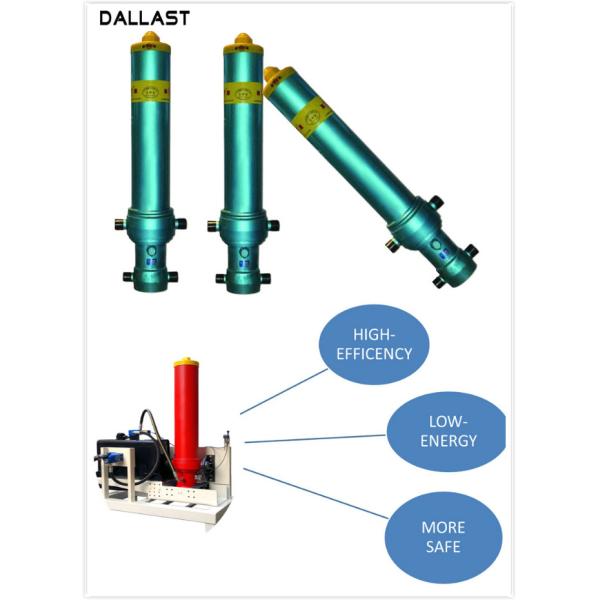

Product Show:
RoHS Parker Hydraulic Lift Cylinder Long Stroke Chrome for Tipper Truck
