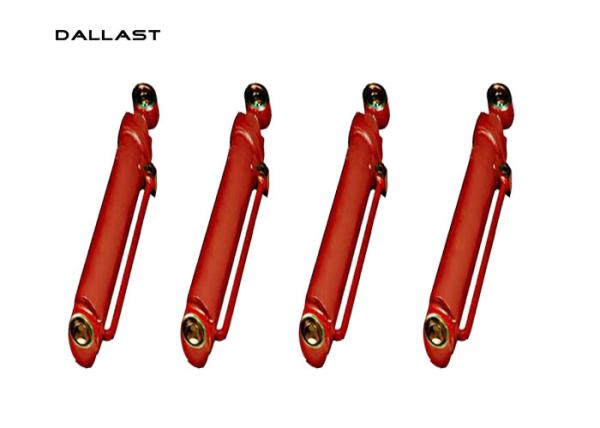

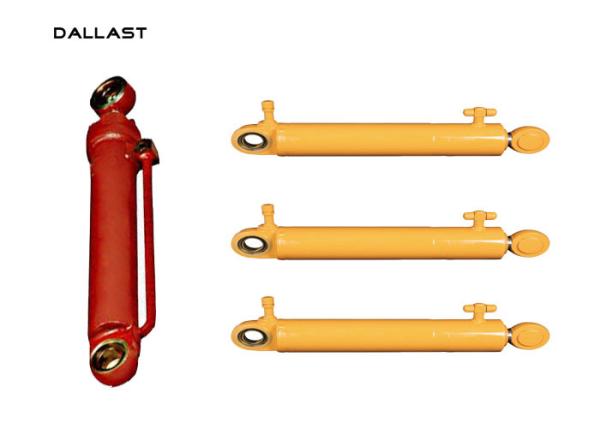

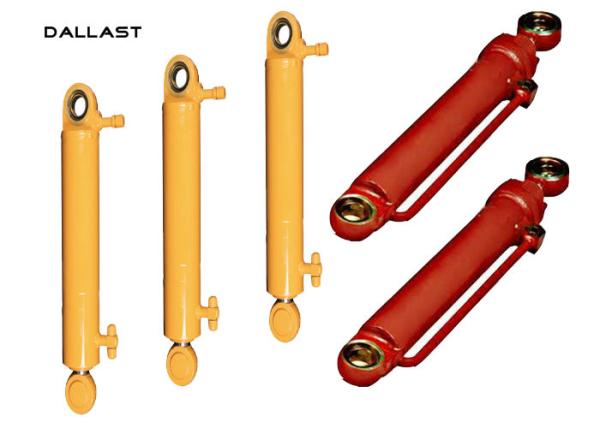

Long Stroke Piston Type Horizontal Drilling Rigs Welded Hydraulic Cylinder

hydraulic cylinder for earthmoving equipment

Dallast is a professional hydraulic cylinder manufacturer that designs and manufactures Custom Hydraulic Cylinders used in a variety of applications. We believe that our expertise in specialized cylinders, coupled with our highly advanced equipment’s, enables us to provide you with superior transmission solutions.

Manufacturing Capabilities

ISO9001:2008 certified

Complete CNC Machining capabilities

Bore size from 1 1/5 inches to 19.68inches (30mm to 500mm)

Stroke lengths to 200'' (5000mm) or longer if required

Working pressures to 32Mpa

Up to 4 stages of multi stage hydraulic cylinder experience

Custom Hydraulic Cylinder

We have more than one-decade experience in supplying custom hydraulic cylinders with provided drawings or samples, or if you could provide following specification:

What are our strengths?

Application
We specialize in design and manufacture hydraulic cylinders that are used in a variety of fields including:
Construction Machinery cylinders for: loaders, excavator, forklift, bulldozer, dumper, roller, crane etc.
Metallurgical Machinery cylinders for: decelerator, tile press etc.
Mining Machinery cylinders for: crasher, coal cutter etc.
Agricultural & forestry machinery cylinders for: soil preparation machine, harvester, weeder etc.

China dallast Hydraulics works with companies in all types of industries, including trucking(car tailgate), food processing, manufacturing, heavy equipment, medical equipment, material handling(dock leveler, hydraulic/electric scissor lift, hydraulic/electric stacker, electric forklift )and more. In companies as diverse as they come, and in countries all over the world, our products can be found.

When your product needs to move – up and down, side to side or with heavy loads – we can help. Our AC Power Units, DC Power Units, Pumps, valves and Dyna-Lift Work Stations are the finest in the industry. Industries We Serve The industries we serve are vastly diverse. Some are the traditional ones you think of when you hear "hydraulics," and others will surprise you.

FAQ:

What cylinder do I need for my hydraulic system?

First, do you need a single or double acting cylinder?

Next, what is the pin to pin distance when extended and retracted.

Also, how much force do you need to move the load, do you need it to move in a certain amount of time and how is the cylinder mounted.

What's the difference between a single and a double acting cylinder?

A single acting cylinder only provides force one way (most snow plow and telescopic cylinders are single acting).

A double acting cylinder provides force when extending and retracting.

How do I measure a cylinder?

Measure the pin to pin length when the cylinder is fully extended and fully retracted, measure the diameter of the rod, the bore of the cylinder will typically measure 1/4" - 1/2" less than the outer diameter of the barrel, also determine the type and size of the ports.

Finally, determine the type and size of the end mounts.

3. We can supply metric and imperial size cylinder.
