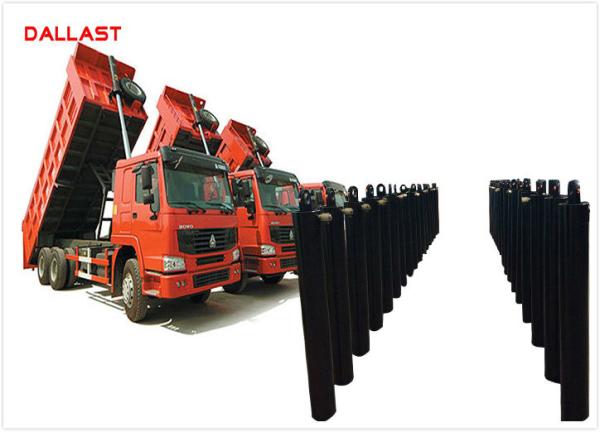

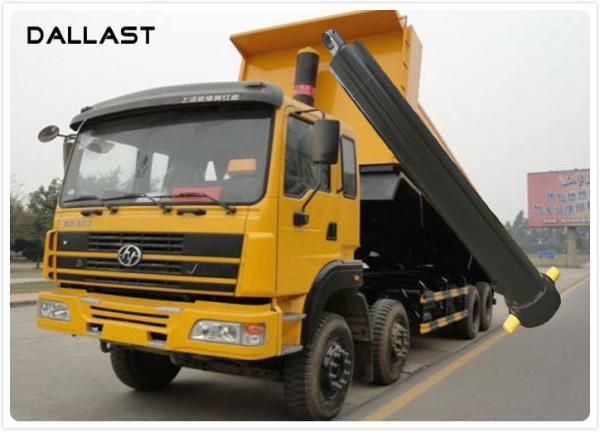

Customized Long Stroke Single Acting Hydraulic Cylinder for Dump Truck
Customized Long Stroke Single Acting Hydraulic Cylinder for Dump Truck
Customized Long Stroke Single Acting Hydraulic Cylinder for Dump Truck
Customized Long Stroke Single Acting Hydraulic Cylinder for Dump Truck
Customized Long Stroke Single Acting Hydraulic Cylinder for Dump Truck
Customized Long Stroke Single Acting Hydraulic Cylinder for Dump Truck
Specifications
Brand Name :
Dallast
Model Number :
Customized
Certification :
Gs, RoHS, Ce, ISO9001
Place of Origin :
Shandong, China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
1 Piece Per Year
Delivery Time :
15-25 Days
Packaging Details :
Plywood Box or Pallet or as your requirements
Working Method :
Straight Trip
Standard :
Standard, Nonstandard
Hardness :
HRC 45-55
Working Pressure :
16-32 Mpa
Description

Single Acting Long Stroke Customized Hydraulic Chromed Cylinder for Dump Truck

Characteristics:
- Larger diameter, more lifting capacity.
- Max working pressure reaches 250 bar, better anti-pressure ability.
- Special material with high quality, high-precision, better anti-bending ability. 27SiMn alloy steel, Chromed 30μm thickness, hardening and tempering.
- New model guide ring combined with lubricating material, guarantee smooth lifting.
- Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
- Maintenance-free support, longer working life.
- Integrated design, easy to maintain.
- 100% tested, guarantee high quality.


Company Advantage:
> Professional manufacturer& supplier of Hydraulic Cylinders for more than 22 years;
> Hydraulic Cylinders Certification ISO9001:2008, SGS, TS16949, RoHS, CNAS Certification;
> Experience in export North America, Australia, Asia, Middle East, Africa;
> Hydraulic Cylinders can be Make according to client's requirements;
> The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;
> We are the supplier of Sinotruk, CNHTC, CIMC, Wuzheng, Beiben Truck, Baic Group, FOTON, HOWO, JAC, Sichuan Hyundai, Dayun, Shanxi Automobile, most of famous truck manufacturing and refitting company use our telescopic cylinder as first choice.

Parameter:

Single Acting Long Stroke Customized Enerpac Hydraulic Cylinders for Dump Truck
Model Tipping.Max Press Close.height(mm) Tanker.Vol carriage Rear overhang Lifting.angle
(T) (MPa) (L) (mm) (degree)
3TG-E140×4000 24.6 16 1675 50 5200-5400 700mm 48-52
4TG-E140×4270 24.6 16 1421 55 5400-5600 700mm 48-52
4TG-E175×4450 38.5 16 1470 81 5600-6000 800 48-52
4TG-E175×4650 38.5 16 1509 84 6000-6400 800 48-52
4TG-E175×5000 38.5 16 1597 91 6400-6600 800 48-52
4TG-E175×5390 38.5 16 1695 98 6600-7000 800 48-52
4TG-E175×5780 38.5 16 1792 104 7000-7400 800 48-52
4TG-E175×6000 38.5 16 1851 109 7400-7800 800 48-52
4TG-E175×6180 38.5 16 1897 112 7800-8000 800 48-52
4TG-E185×4650 43 16 1509 96 6200-6600 800 48-52
4TG-E185×5000 43 16 1597 103 6600-6800 800 48-52
4TG-E185×5390 43 16 1695 111 6800-7200 800 48-52
4TG-E185×5780 43 16 1792 119 7200-7600 800 48-52
4TG-E185×6000 43 16 1851 123 7600-8000 800 48-52
4TG-E185×6180 43 16 1897 127 8000-8500 800 48-52
According to the work pressure, work temperature, work situation and other special requirements, different cylinder tube will be choose
1.1 Cylinder tube: cold drawn precision seamless steel tube, hot rolled seamless steel tube, forged tube.
1.2 Tube material: 27SiMn
1.3 Surface roughness: R0.16-0.32μm
1.4 Inside chromating: If necessary, inside tube will be chromated.

FAQ:

Questions: Answers:
1. Compared with Hyva cylinder, what are your cylinder advantages?

1. Tubes are chrome plated.

2. Tubes are quenched and tempered.
2. Compared with Hyva cylinder, what are your cylinder advantages?

1. Tubes are chrome plated.

2. Tubes are quenched and tempered.
3. Are you a manufacturer? Yes, we have been in this sector for nearly 15 years. We produce hydraulic cylinder hydraulic power unit for nearly 15 years.
4. Do your products come with a warranty? Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you.
5. How do you deliver the products? By sea, By plane, By couriers.
6. What’s your cylinder PPM? 5000 PPM. We do 100% inspection before delivery.

The Information about Our Company:

We are Dallast Technology Co., LTd, leading manufacturer for hydraulic cylinder, hydraulic servomotor, dam hydraulic hoist.

Products:full series of hydraulic cylinder, heavy duty hydraulic cylinder, hoist cylinder, oil cylinder, super size hydraulic cylinders.

15 years in manufacturing hydraulic cylinders, application for water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.

The only one super size cylinder manufactuer in China.

Full experience in design, produce, mounting, testing, operation and maintenance.

Cylinder max. Diameter 1200mm, stoke 16m, and annual productivity over 2000t.

Strong technological force and advanced technique and equipment, such as 3 sets of sunnen grinding machines.

2000m2 synthetic office building of computer control net work center

Gs, RoHS, Ce, ISO9001 quality management system.

AAA grade credit certificate issued by international credit assessment center.

Product Show:

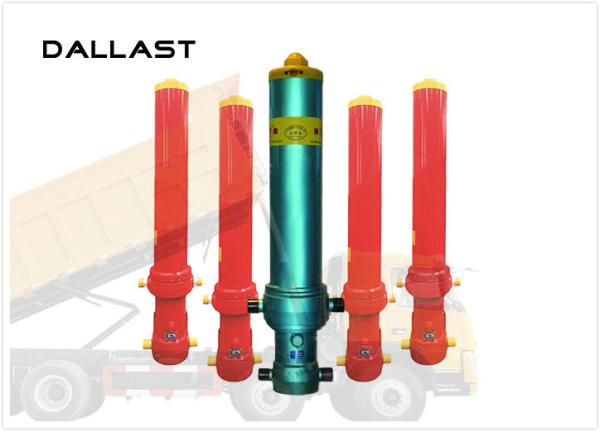

Customized Long Stroke Single Acting Hydraulic Cylinder for Dump Truck
