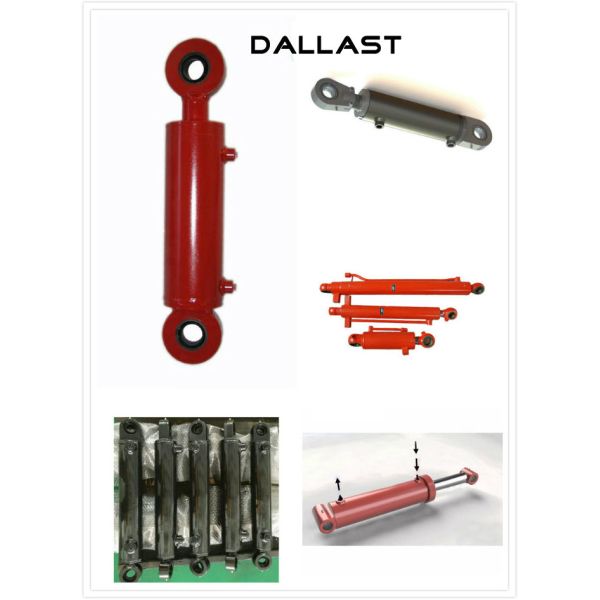

Dual Acting Chrome Hydraulic Cylinder Piston Type for Agricultural Dump Truck

How Double Acting Hydraulic Cylinders Work and Their Uses:

With double acting hydraulic cylinders, the fluid acts on both sides of the piston, alternating between each side. They can be attached to external devices by using a gland to prevent fluid escape. Double acting cylinders have two ends that are supplied with hydraulic fluid, which is used to retract and extend the piston.We can provide :

Piston type hydraulic cylinder ram

Plunger type hydraulic cylinder ram

Telescopic type hydraulic cylinder ram

Welded hydraulic cylinder ram

Flange mounted hydraulic cylinder ram

Tie rod hydraulic cylinder ram

Double acting hydraulic cylinder ram

Single acting hydraulic cylinder ram

Multistage hydraulic cylinder ram

Servo hydraulic cylinder ram

Three advantages for hydraulic cylinder:

1.Longer serve life.

By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure

fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!

2.More strong stability.

Stability optimization design, improve the long box lifting high stability, reduce rollover risk!

3.Lift More

Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!

Custom hydraulic cylinder (OEM):

Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
trucks according to the drawing from customers,but also we could make a design according to
customers’requirements . If you require our engineer to make a design , please advise us the
following specification :
1. Rated pressure
2. Working pressure
3. Test pressure
4. Working condition and environment ,for example ,temperature ,working frequency
5. Pulling force ,and return stroke force
6. Pulling and return speed
7. Assembly size
8. Seal ring requirements .For example , brand ,seal material etc .
9. Tube and piston rod raw material requirements
10. Piston rod surface treatment requirements, for example

FAQ:

Q: Do you accept OEM manufacturing?

A: Yes! We do accept OEM manufacturing. We will quote you the exact price and make the exact cylinder according to your specification and drawing.

Q: How long is your warranty period?

A: We offer 12 months warranty period after on board.

Q: Could we get small quantity samples?

A: Yes! We understand the quality test is important and we are glad to make the sample for you. The MOQ is 1pcs.

Q: What is your payment term?

A: For sample payment, generally 100% T/T payment in advance, west union, paypal.

For order payment, generally is 30% T/T in advance, 70% balance before shipment.

Q: How do you deliver the products?

A: --By sea

--By plane

--By couriers. DHL, UPS, TNT and so on.

Parameter:

We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.

To get an immediate quotation,please provide us with the following necessary parameters:

1) Bore diameter

2) Piston rod diameter

3) Stroke length

4) Working pressure

5) Mounting method

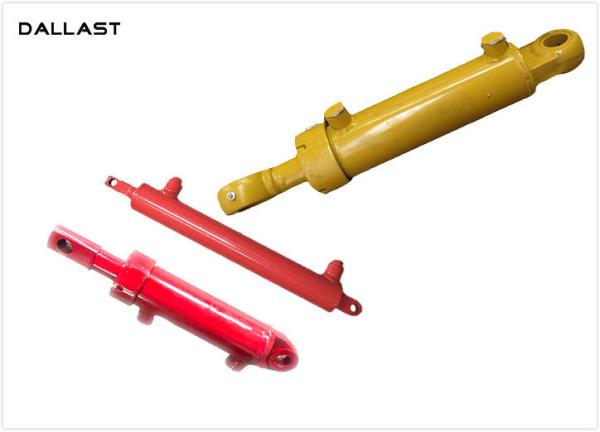

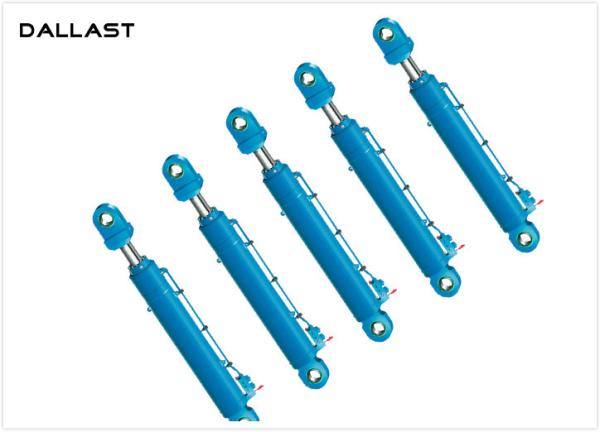

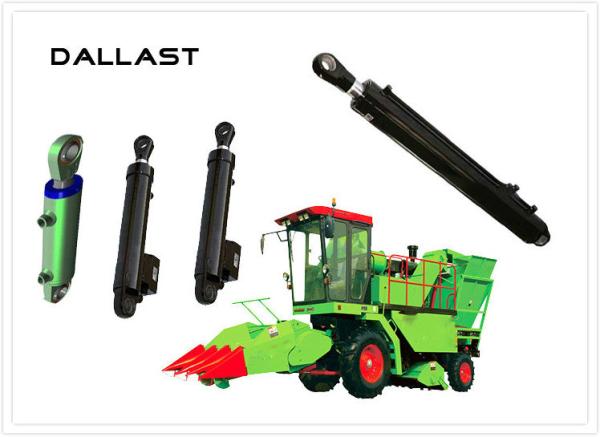

Product Show:
