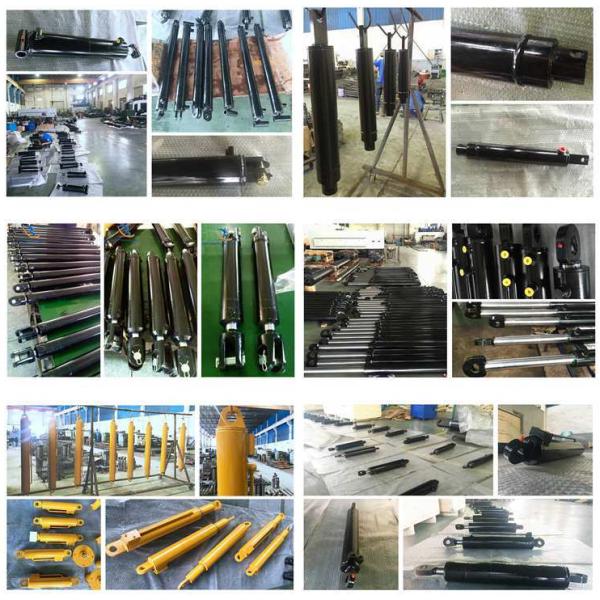

Dump / Tipper Truck Multi Stage Hydraulic Cylinder Hard Chrome Piston Rod Material
Dump / Tipper Truck Multi Stage Hydraulic Cylinder Hard Chrome Piston Rod Material
Dump / Tipper Truck Multi Stage Hydraulic Cylinder Hard Chrome Piston Rod Material
Dump / Tipper Truck Multi Stage Hydraulic Cylinder Hard Chrome Piston Rod Material
Dump / Tipper Truck Multi Stage Hydraulic Cylinder Hard Chrome Piston Rod Material
Dump / Tipper Truck Multi Stage Hydraulic Cylinder Hard Chrome Piston Rod Material
Specifications
Brand Name :
DALLAST
Model Number :
Hydraulic cylinder
Certification :
GS CE ISO 9001
Place of Origin :
Shandong China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
T/T, Western Union, D/A, D/P, L/C
Supply Ability :
50000 Pieces/Per year
Delivery Time :
15-25 days
Packaging Details :
Carton or According to Customer's Require
Factory Visit :
Available
Extended stages :
3-7 stages
Heat Treatment :
Quenching
Material :
Hard Chrome Piston Rod
Painting :
Anti rust painting
Structure :
General cylinder
Shaft Diameter :
Optional
Description

Multistage Hydraulic Telescopic Cylinder for Dump Truck/Tipper Truck/Trailer

Our service
80% quality of REXROTH with 30% Price
Custom hydraulic cylinders to fit your need.

Since 1990s, DALLAST Hydraulic Manufacturer team are becoming more and more skilled to provide small hydraulic ram solutions by satisfying the most strict customers and their requirements.

Each DALLAST Hydraulic Ram has suffered rigorous process and inspection to promise the good quality for our customer.


1. Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

2. Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping

3. Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.

4. Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.

5. Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

6. Certification
Should your products require testing and certification to comply with international standards, we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.

Type

MODEL NO. Stage First Stage Diameter mm Stroke mm Largest Sleeve OD mm

Closed length

mm
FC-4-126-4145 4 126 4145 219 1357
FC-4-126-4345 4 126 4345 219 1407
FC-4-126-4545 4 126 4545 219 1457
FC-4-126-4745 4 126 4745 219 1507
FC-4-126-4945 4 126 4945 219 1557
FC-4-126-5145 4 126 5145 219 1607
FC-3-145-3230 3 145 3230 219 1403
FC-3-145-3680 3 145 3680 219 1553
FC-3-145-3830 3 145 3830 219 1603
FC-4-145-4110 4 145 4110 219 1357
FC-4-145-4310 4 145 4310 219 1407
FC-4-145-4510 4 145 4510 219 1457
FC-4-145-4710 4 145 4710 219 1507
FC-4-145-4910 4 145 4910 219 1557
FC-4-145-5110 4 145 5110 219 1607
FC-4-145-5310 4 145 5310 219 1657
FC-4-145-5865 4 145 5865 219 1807
FC-5-145-4310 5 145 4310 219 1161
FC-4-165-4110 4 165 4110 244 1347
FC-4-165-4510 4 165 4510 244 1447
FC-4-165-4710 4 165 4710 244 1497
FC-4-165-4910 4 165 4910 244 1547
FC-4-165-5110 4 165 5110 244 1597
FC-4-165-5310 4 165 5310 244 1647
FC-4-165-5865 4 165 5865 244 1797
FC-5-165-5135 5 165 5135 244 1351
FC-5-165-5385 5 165 5385 244 1401
FC-5-165-5635 5 165 5635 244 1451
FC-5-165-6135 5 165 6135 244 1551
FC-5-165-6385 5 165 6385 244 1601
FC-5-165-6825 5 165 6825 244 1701
FC-5-165-7075 5 165 7075 244 1751
FC-5-165-7325 5 165 7325 244 1801
FC-5-165-7575 5 165 7575 244 1851
FC-5-165-7825 5 165 7825 244 1901
FC-5-165-8185 5 165 8185 244 2001
FC-5-165-8435 5 165 8435 244 2051
FC-5-187-5135 5 187 5135 244 1351
FC-5-187-5385 5 187 5385 244 1401
FC-5-187-5635 5 187 5635 244 1451
FC-5-187-6135 5 187 6135 244 1551
FC-5-187-6385 5 187 6385 244 1601
FC-5-187-6825 5 187 6825 244 1701
FC-5-187-7075 5 187 7075 244 1751
FC-5-187-7325 5 187 7325 244 1801
FC-5-187-7825 5 187 7825 244 1901
FC-5-187-8185 5 187 8185 244 2001
FC-5-187-8435 5 187 8435 244 2051
FC-5-187-8935 5 187 8935 244 2151
FC-5-187-9185 5 187 9185 244 2201
FC-6-187-8790 6 187 8790 244 1805
FC-6-187-9085 6 187 9085 244 1855
FC-7-187-8535 7 187 8535 244 1559
FC-5-210-6135 5 210 6135 273 1551
FC-5-210-6825 5 210 6825 273 1701
FC-5-210-7075 5 210 7075 273 1751
FC-5-210-7325 5 210 7325 273 1801
FC-5-210-7825 5 210 7825 273 1901
FC-5-210-9185 5 210 9185 273 2201
