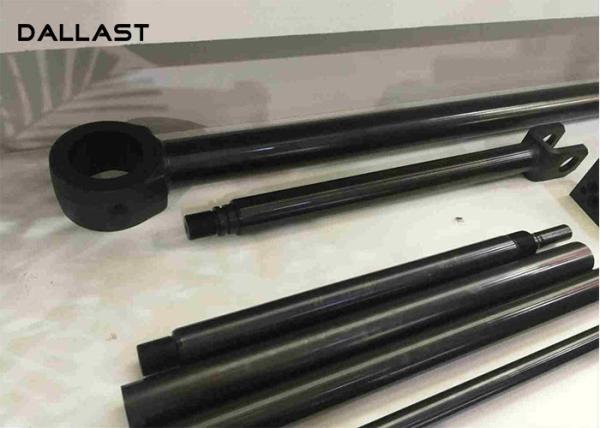

Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color
Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color
Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color
Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color
Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color
Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color
Specifications
Brand Name :
DALLAST APT
Model Number :
Model
Certification :
TUV SGS
Place of Origin :
CHINA
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1000000pcs/year
Delivery Time :
15-25 days
Packaging Details :
wood box
Material :
45# 42CrMo4 40CrMo
Neutral Salt Spray test :
NSS 300;500 hours
Type :
Hollow/Solid Rod
Surface hardness :
＞HV850
NSS Testing Standing :
une-en iso9227:2017
SURFACE ROUGHNESS :
Ra≤0.2 micron and Rt≤2 micro
Application Environment :
At sea or in harsh environments
Color :
Black
Description

42CrMo4 Hollow Piston Rod Hard Chrome Plated Steel Bar For Doubel Acting Hydraulic Cylinder NSS 500 hours


NSS Testing Standing une-en iso9227:2017(Neutral Salt Spray test)

· Sal solution: 50 (+/- 5) g/l of NaCl. Water is demineralized and salt purity is 99.5%.

· Environmental temperature: 35 °C.

· pH of salt solution is 6.8.

· Volumen of salt solution is 38.4 ml/day.

· Density of salt solution is 1,030 g/cm3.

· Spraying is 1.5 (+/- 0.5) ml/h.

NSS (Neutral Salt Spray test): More than 200 hours;
More than 360 hours;
More than 500 hours;
More than 100 hours;


TUV NSS Testing Report SGS NSS Testing Report

Crafts Process Hardening Force Remove

In the whole crafts process, there are 2 times remove hardening forces: the first remove hardening force in the heat treatment process, hardening force remove is about 80%; the second remove hardening force in the surface treatment process, hardening force remove is about 90%-95%. Therefore, the piston rod is not easily deformed during use or transportation.

Applications:

Single-acting/double-acting hydraulic cylinders --- Garbage trucks, dump trucks, agricultural equipment, ships, mines, drilling platforms, machinery in harsh environments

MECHANCIAL PROPERTIES

Material T.S N/MM2 Y.S N/MM2 E%(MIN) CHARPY CONDITION
CK45 610 355 15 >41J NORMALIZE
CK45 800 630 20 >41J Q + T
ST52 500 355 22 NORMALIZE
20MnV6 750 590 12 >40J NORMALIZE
42CrMo4 980 850 14 >47J Q + T
40Cr 1000 800 10 Q + T

Our advantage

1. Customization and OEM service is acceptable for us.

2. All our hydraulic cylinders and accessories obtained ISO 9001:2008 certification.

3. Samples can be providing to you before starting cooperation.

4. We are factory and can assure the prompt delivery time.

5. Packing can be customized. Often using standard export wooden case packing.

6.Neutral Salt Spray test,more than 300 hours ,500 hours ,also can reach 1000 hours.....

can compare with chorm rod to do NSS .

Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color

Hollow Piston Rod Hard Chrome Plated Steel Bars Hydraulic Cylinder 42Crmo4 Black Color
