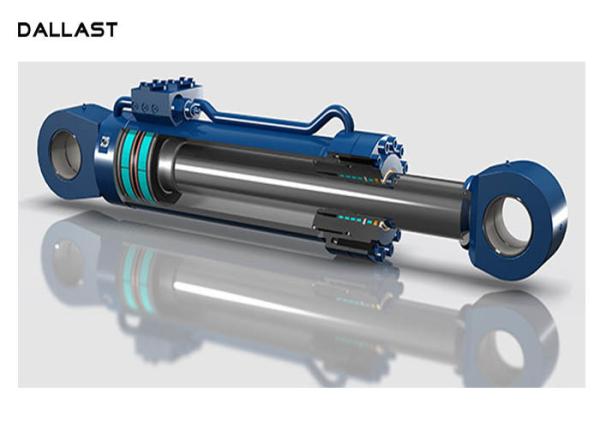

Long Stroke Double Acting Hydraulic Cylinder , Heavy Duty Hydraulic Rams OEM
Long Stroke Double Acting Hydraulic Cylinder , Heavy Duty Hydraulic Rams OEM
Long Stroke Double Acting Hydraulic Cylinder , Heavy Duty Hydraulic Rams OEM
Long Stroke Double Acting Hydraulic Cylinder , Heavy Duty Hydraulic Rams OEM
Long Stroke Double Acting Hydraulic Cylinder , Heavy Duty Hydraulic Rams OEM
Long Stroke Double Acting Hydraulic Cylinder , Heavy Duty Hydraulic Rams OEM
Specifications
Brand Name :
DALLAST
Model Number :
Customized
Certification :
GS CE ISO 9001
Place of Origin :
Shandong
MOQ :
1 piece
Price :
negotiation
Payment Terms :
T/T, Western Union, D/A, D/P, L/C
Supply Ability :
50000 Pieces/Per year
Delivery Time :
15-25 days
Packaging Details :
Carton or According to Customer's Require
Test :
100% inspection
Body Material :
Stainless Steel
Standard :
Nonstandard
Structure :
Piston Cylinder
Stroke :
2400 mm
Roundness :
Rz0.2~0.4 / Ra0.1Max
Chrome Plating Thickness :
10-25 μm
Description

OEM Double Acting Long Stroke Heavy Duty Hydraulic Cylinder Ram

Specifications:

All Seals Manufactured to US specification
Ports NPTF(SAE port or other can be available)
Test 100% hydro-pressure test
Rod surface treatment Superior quality chrome plated
Apply Apply LOCTITE to rod end thread
Cylinder Capacity 40,000units / year Cylinder Capacity
Shipping SAE, NPT, NPTF, BSP, Ports available
Custom-Made cylinders and components available
Cylinder Range

Bore: 18mm - 800mm (0.75" ~24")

Stroke: 100mm - 8000mm. (4" ~315")
Main markets America, Europe, Australia, Japan, China

WE FOCUS ON QUALITY!
DALLAST focus on manufacturing all kinds of cylinders used for Machinery, Equipment, Metallurgy, Water Conservancy, Mining, Offshore, Truck, etc. We also can design or do OEM in accordance with client's special requirements. We have our own professional design team, advanced production equipment, and strict quality control system to improve the reliability, safety and economy of products. In order to create real benefit for clients, DALLAST will offer a full set of services, such as consulting solutions, products installation, technical support, etc.

1. Piston type hydraulic cylinder
2. Plunger type hydraulic cylinder
3. Telescopic type hydraulic cylinder
4. Welded hydraulic cylinder
5. Flange mounted hydraulic cylinder
6. Tie rod hydraulic cylinder
7. Double acting hydraulic cylinder
8. Single acting hydraulic cylinder
9. Multistage hydraulic cylinder
10. Servo hydraulic cylinder

Output table of hydraulic cylinder
Bore(mm) Rod(mm) Working pressure
2Mpa 5Mpa 7Mpa 10Mpa 12Mpa 14Mpa
Pull(KG) Push(KG) Pull(KG) Push(KG) Pull(KG) Push(KG) Pull(KG) Push(KG) Pull(KG) Push(KG) Pull(KG) Push(KG)
40 20 188 252 470 630 658 882 940 1260 1128 1512 1316 1764
50 25 294 392 435 980 1029 1372 1470 1960 1764 2352 2058 2744
63 30 482 624 1205 1560 1687 2184 2410 3120 2890 3744 3374 4368
80 40 754 1006 1885 2515 2633 3521 3770 5030 4524 4636 5278 7042
100 50 1178 1570 2946 3927 4124 5498 5891 7854 7069 9425 8247 11000
125 60 1889 2454 4722 6136 6611 8590 9444 12272 11333 14736 13222 17180
150 70 2754 3534 6911 8835 9675 12369 13822 17670 16586 21204 19351 24738
180 80 4084 5089 10210 12724 14295 17813 20421 25447 24505 30536 28589 35626
200 100 4712 6283 11781 15708 16493 21991 23562 31416 28274 37699 32987 43982
250 140 6739 9018 16847 22544 23586 31562 33694 49088 40433 58906 47172 68723
300 180 9048 14137 22620 35343 31667 49480 45239 70686 54187 84823 63335 98960

FAQ:

1. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

3. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
