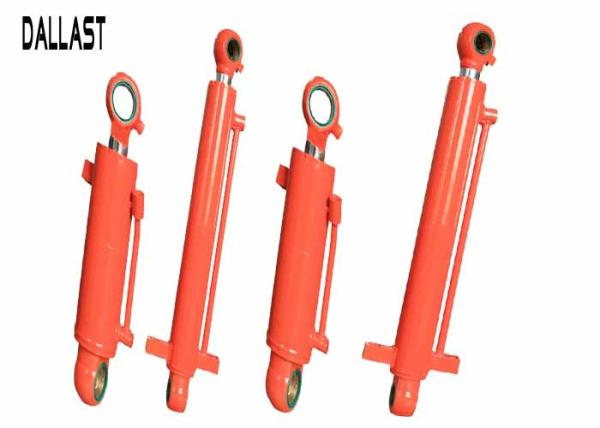

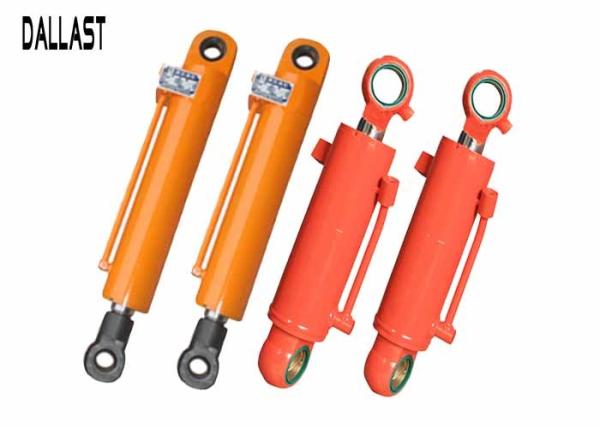

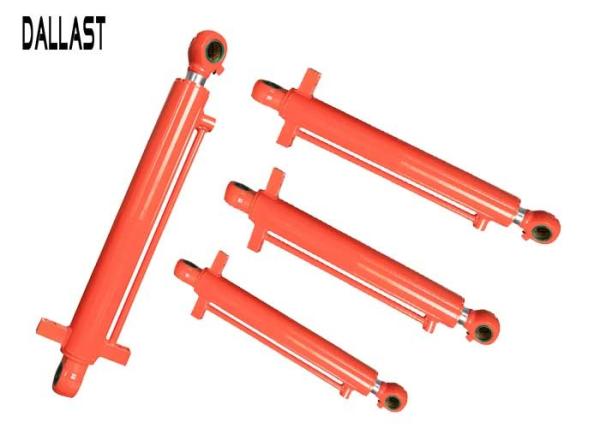

Agricultural Tractor Double Rod Hydraulic Cylinder Piston with Chrome Bar
Agricultural Tractor Double Rod Hydraulic Cylinder Piston with Chrome Bar
Agricultural Tractor Double Rod Hydraulic Cylinder Piston with Chrome Bar
Agricultural Tractor Double Rod Hydraulic Cylinder Piston with Chrome Bar
Agricultural Tractor Double Rod Hydraulic Cylinder Piston with Chrome Bar
Agricultural Tractor Double Rod Hydraulic Cylinder Piston with Chrome Bar
Specifications
Brand Name :
DALLAST or on request
Model Number :
customied
Certification :
GS, RoHS, CE, ISO9001
Place of Origin :
China
MOQ :
1 pieces
Price :
negotiation
Payment Terms :
T/T, Western Union, D/P, D/A, L/C
Supply Ability :
50000 pieces
Delivery Time :
20-30 work days or on request
Packaging Details :
wooden case, carton box
pressure :
30-350 Bar
temperature :
normal or high temperature
action type :
double acting
size :
custom
OD :
custom
ID :
custom
Description

Agricultural Tractor Hydraulic Ram Double Ating Cylinder Piston with Chrome Bar

Advantages:

The ultimate in strength is achieved by this design. Highly recommended for applications where high shock loads and internal pressure spikes can be expected. With any stroke length and a wide range of fixing elements. Rod end connections.

Different parameters of regulation. Fuel saving. Reduce noise level. Compact and low-weight solution. Lower cost than other hydraulic solutions.

We can work with you to develop competitive pricing structures and highly responsive manufacturing lead-times to ensure your job is completed on-time and on-budget.

Mode NO

Pressure

(Bar)

Capacity

(ton)

Cylinder bore

(mm)

The diameter of rod (mm)

Stroke

(mm)

Mounting distance

(mm)
FT800.55A.012 34 23 80 32 200 535
TB600.55B.2a 54 43 75 32 110 423
TB600.55C.2a 63 25 75 32 110 423
FT700.55D.011 51 64 100 40 200 516
FT1004.55.8 87 12 90 35 200 535
TG1204.551.1 48 115 100 40 185 535
TG1854.551.2 93 65 110 70 182 535
TG1854.551.3 180 89 110 70 182 535

Please note that the regularly stocked cylinders above. If you are interested in our hydraulic cylinders for agricultural machinery, please feel free to contact our office and sent us your drawings to place an order for quick delivery.

About piston rod:

High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.

Piston Seals:

Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.

Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.

Warranty:

We offer 12 months warranty.

Tips:

Do you need special cylinders?

Our technicians will help you to design them and we will manufacture them according to your requirements.

We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings.

A. The drawing details are as follows.
Bore size

Stroke length
Rod diameter

Mounting type
Mounting length

Paint color requirement

B. The product application description details
1. Type of machine(loader, steer loader, excavator, and etc.)

2. Type of function(hoist, swing, steering, and etc.)

3. Type of structure(piston, telescopic)
4. Single or double acting
5. Operating pressure

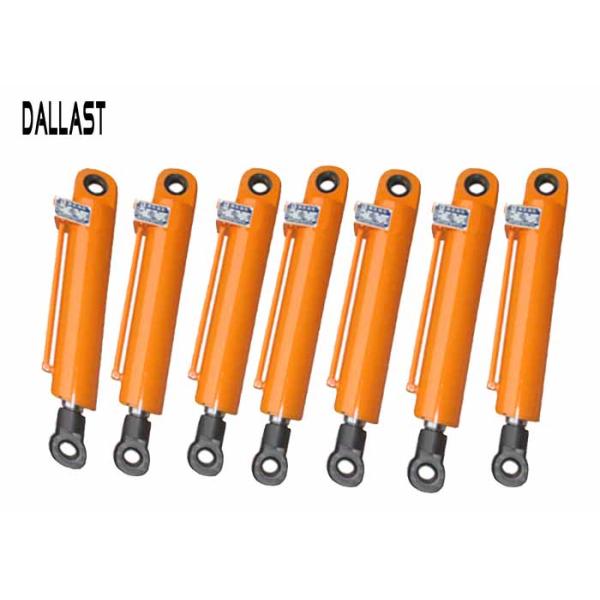

Agricultural Tractor Double Rod Hydraulic Cylinder Piston with Chrome Bar

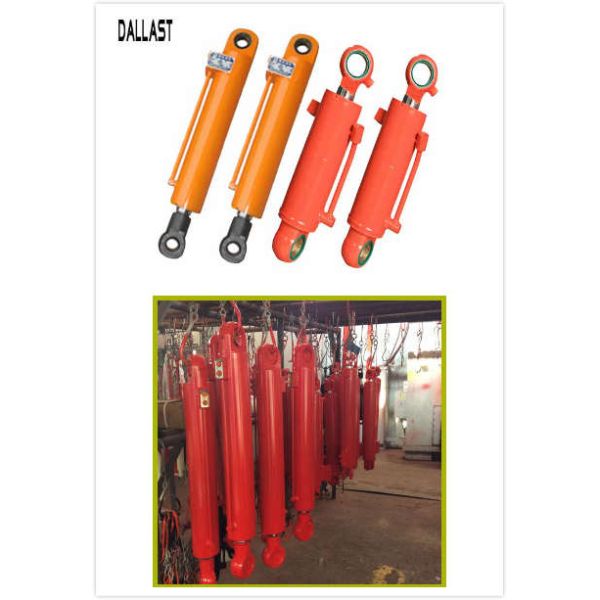

Agricultural Tractor Double Rod Hydraulic Cylinder Piston with Chrome Bar
