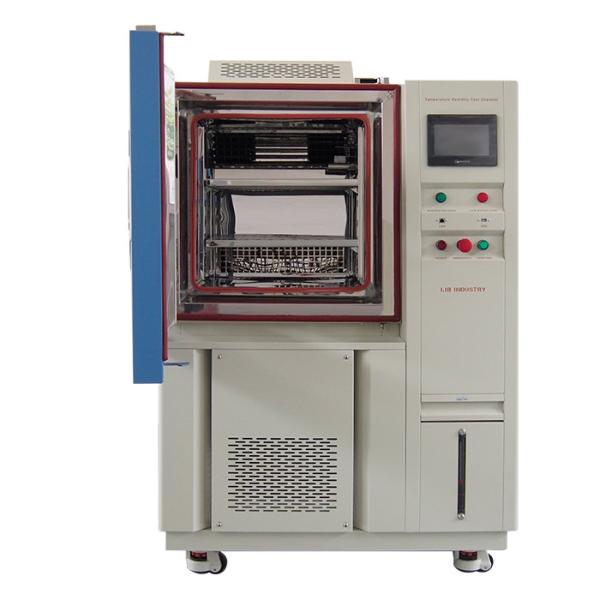

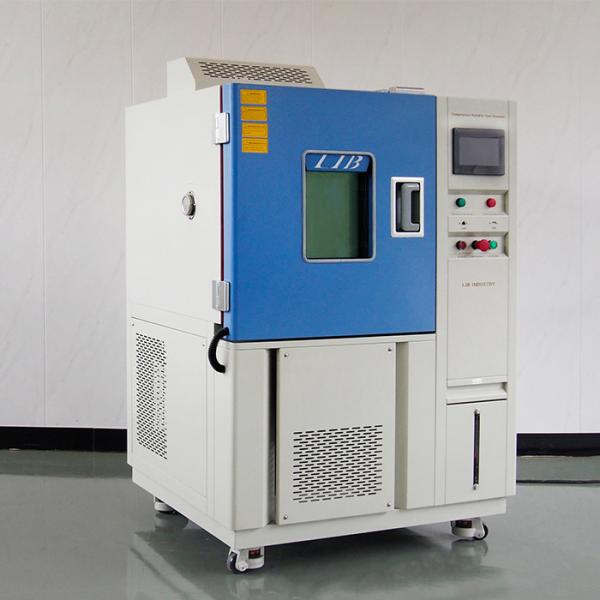

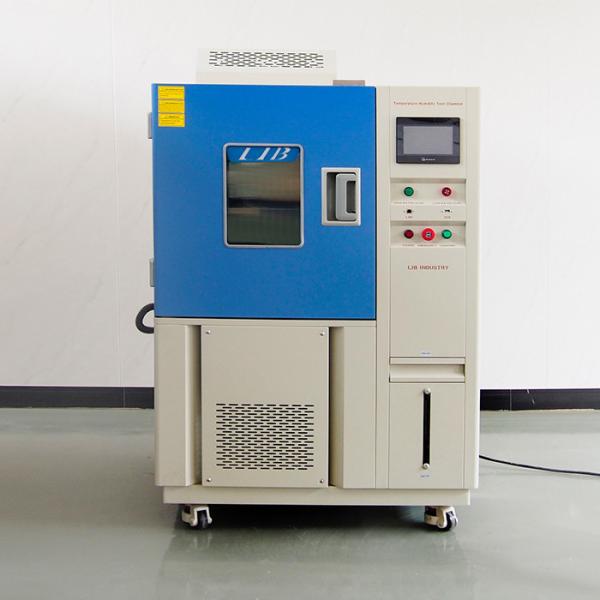

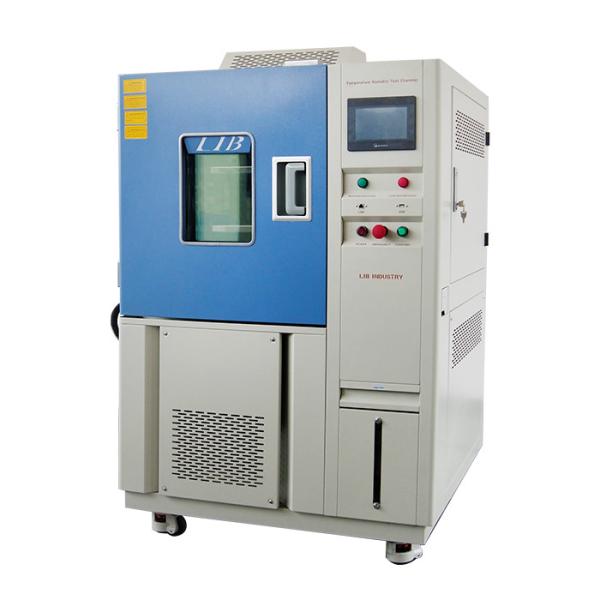

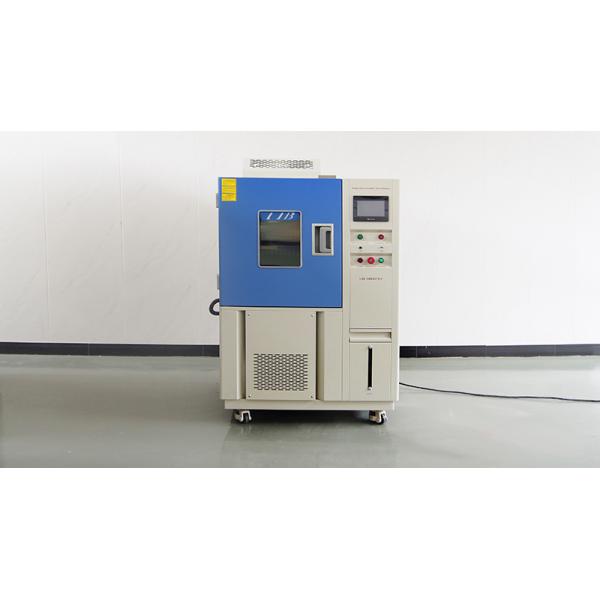

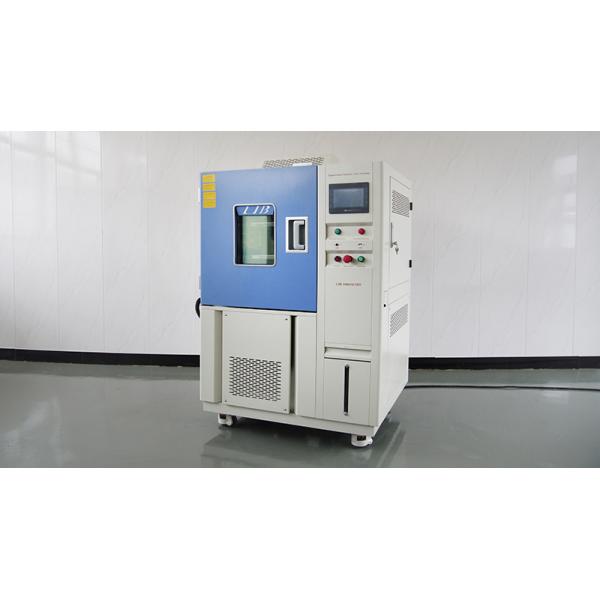

225L Medium Type Humidity Test Chamber Simulation Environmental Chamber
225L Medium Type Humidity Test Chamber Simulation Environmental Chamber
225L Medium Type Humidity Test Chamber Simulation Environmental Chamber
225L Medium Type Humidity Test Chamber Simulation Environmental Chamber
225L Medium Type Humidity Test Chamber Simulation Environmental Chamber
225L Medium Type Humidity Test Chamber Simulation Environmental Chamber
225L Medium Type Humidity Test Chamber Simulation Environmental Chamber
225L Medium Type Humidity Test Chamber Simulation Environmental Chamber
Specifications
Brand Name :
LIB
Model Number :
TH-225
Certification :
CE，RoHS
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram,
Supply Ability :
180 sets / quarter
Delivery Time :
3-14 days
Packaging Details :
Wooden Box standard export package
Name :
Simulation Environmental Chamber
Low Type :
-20℃/-40℃/-60℃/-70℃/-86℃
Controller :
PLC,PC Link, R-232 interface,USB,APP
Humidity Range :
10% - 98% RH
Temperature range :
-20℃ ～+150 ℃
Exterior material :
A3 Steel Plate
Description

225L Medium Type Simulation Environmental Chamber

Description

This test chamber is an Simulation environmental chamber for material testing under low temperature conditions, through simulating the environment, to detect the properties of materials and products.


Main Technical Parameter

Name

225L Medium Type Simulation Environmental Chamber

Model

TH-225

Internal Dimension (mm)

500*600*750

Overall Dimension (mm)

960*1150*1860

Temperature Range (℃)

A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃

Humidity Range (R.H)

20% ~ 98% RH

Temperature fluctuations

± 0.5 ℃

Temperature deviation

± 2.0 ℃

Humidity Deviation

± 2.5% RH

Heating Rate

3 ℃ / min

Cooling Rate

1 ℃ / min

Interior Volume

500 liters

Controller

Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB

Cooling System

Mechanical compression refrigeration system

Interior Material

SUS304 stainless steel

Maximum Noise

65 dBA

Power Supply

380V

Performance Characteristics

●Simulation temperature chamber,Rectangular laminated glass viewing window, which can be used to observe the test items in the test.

●The window is equipped with anti-perspiration electric heater device to prevent water condensation and high brightness PL fluorescent lamp to keep the lighting inside the device.

●Simulation humidity chamber,Full color touch screen control using LCD programmable controller, temperature and humidity at the same time programmable control

●The EC film heating and defrosting device is installed inside the observation window of composite glass, so that you can clearly observe the test status of the samples in the device through the observation window at any time.

●Environmental test chamber,High texture appearance of the body arc shape, the surface of the fog stripe treatment of stainless steel or paint, and the use of a plane no reaction handle, easy to operate, safe and reliable
