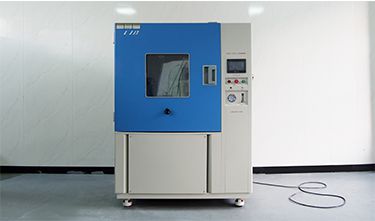

IP68 Sand And Dust Test Chamber For Electronic Equipment Shell IEC60529
IP68 Sand And Dust Test Chamber For Electronic Equipment Shell IEC60529
IP68 Sand And Dust Test Chamber For Electronic Equipment Shell IEC60529
IP68 Sand And Dust Test Chamber For Electronic Equipment Shell IEC60529
IP68 Sand And Dust Test Chamber For Electronic Equipment Shell IEC60529
IP68 Sand And Dust Test Chamber For Electronic Equipment Shell IEC60529
IP68 Sand And Dust Test Chamber For Electronic Equipment Shell IEC60529
IP68 Sand And Dust Test Chamber For Electronic Equipment Shell IEC60529
Specifications
Brand Name :
LIB
Model Number :
DI-800
Certification :
IEC60529,Rohs,CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
360 sets / quarter
Delivery Time :
3-14days
Packaging Details :
Wooden cases standard export package
Name :
IP68 Test Machine
Temperature range :
Ambient to +50℃
Normal wire diameter :
50um
Normal width of a gap between wire :
75um
Standard :
IEC60529,ISO20653
Controller :
programmable color display touch screen controller
Description

Description

IP68 Test Machine,Shell protection level test mainly verifies whether the outdoor electronic equipment shell has the ability to prevent rain and sand and dust, after the dust test, through the naked eye to observe whether there is dust inside the shell to enter, after the waterproof test, observe whether there is water inside the sample shell to enter.

Parameter

IP6X dust proof test: the standard requires negative pressure on the shell, the test time is 8 hours, after the test, there should be no dust inside the shell.

Model DI-800
Internal Dimension (mm) 800*1000*1000
Overall Dimension (mm) 1040*1450*1960
Interior Volume (L) 800
Temperature Range Ambient ~ +50℃
Humidity Range < 30% RH
Normal Wire Diameter 50um
Nominal Width of a Gap Between wires 75um
Specimen Power Outlet Dust-proof socket 16A
Vacuum System Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Standard Configuration Sample shelf, dust wiper, talcum powder(5kgs)

IPX8 water proof test: the test water depth is required to be 2 meters, the test time is 2 hours, after the test, there should be no water droplets entering the shell;

Model R78-1000
Useful volume Diameter 1000mm, Height 1500mm.
Material Material is steel plate, wall thickness 2cm
Water depth Water depth pressure range 1~100m, adjustable
Water supply Automatic water supply
Controller Programmable color touch screen type controller,
Open/close Open/close lid by pneumatic lift, with safety lock.
Standard Comply with IEC60529 IPX7 IPX8 water tests

Evaluation of the test results of the enclosure protection class IP68:

After the IPX8 test, no water droplets enter the inside of the shell, and after the IP6X test, no dust enters the interior of the shell, which meets the requirements of the standard IEC60529 testing standard.
