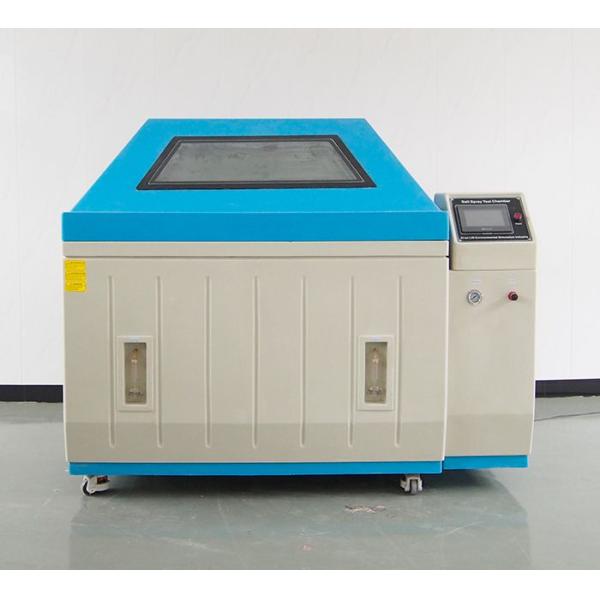

98% RH IEC Cyclic Salt Spray Corrosion Test Chamber
98% RH IEC Cyclic Salt Spray Corrosion Test Chamber
98% RH IEC Cyclic Salt Spray Corrosion Test Chamber
98% RH IEC Cyclic Salt Spray Corrosion Test Chamber
98% RH IEC Cyclic Salt Spray Corrosion Test Chamber
98% RH IEC Cyclic Salt Spray Corrosion Test Chamber
Specifications
Brand Name :
LIB
Model Number :
S-010
Certification :
CE,RoHS,ISO17025
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
360 sets / quarter
Delivery Time :
5-14 days
Packaging Details :
Wooden cases standard export package
Temperature :
Ambient ～60℃
Usage :
laboratory, university, research center
Warranty :
36 Months
Name :
Salt Fog Spray Test Device
Standard :
ASTM B-117; ISO9227
Temperature range :
Ambient ～60℃
Description

▶Description

Salt mist test facility confirm to JIS D-0201, K5400. D0205, H8681 / ASTM B-117,ISO 9227, JIS Z 2371, JIS H 8502 Standard

Salt spray test facility is used for testing parts rust-proof ability that had been through surface treatment such as electroplating, coating, anodizing, etc. With misty form’s salt water to speed up corrosion, in an attempt to test specimen rust-proof ability in short time, this tester is suitable to use in hardware, screw and electroplating industries and research organizations, etc.

▶Products Parameters

Name 98% RH IEC Salt Spray Cyclic Corrosion Apparatus
Model S-010
Internal dimensions 1000*1300*600(mm)
Interior Volume (L) 780
Temperature range Ambient ～60℃
Humidity range 95% ~ 98% RH
Temperature fluctuations +/- 0.5 ℃
Temperature deviation: +/- 2.0 ℃
Test time 1~999 hours, settable
Spray deposition 1～2ml / 80cm2 · h
Temperature Controller LED display, P.I.D+S.S.R. microcomputer integrated controller
Temperature sensor PT100Ω / MV A-class
Salt fog collected Fog collector and fog measure cylinder
Salt water preheating Saturated air barrel
Spraying system Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution)
Interior /Exterior material Glass fiber reinforced plastics
Power Supply 220V 50HZ

▶Details Advantage

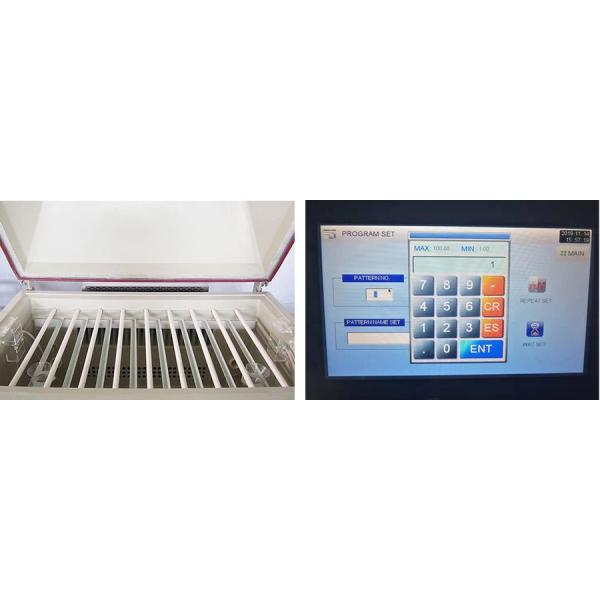

Test Area

Specimen tilt 20°±5 to make the solution which falls on the specimen surface remain at fixed concentration.

Control panel

Programmable control panel, digital display, PID control, high stability platinum temperature probe.

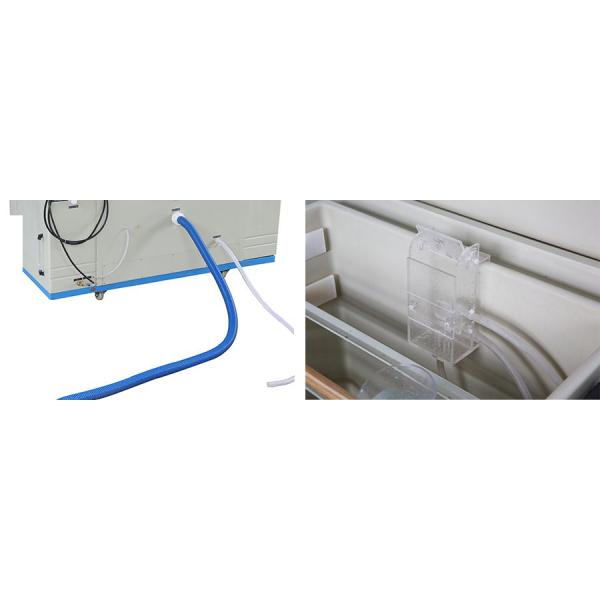

Exhaust System

Exhaust vent:Keep the concentration of fog inside the chamber.

Spray Nozzle

Patent nozzle makes spray device to spray fog fast and evenly

▶Features

1.Salt fog test facility made of glass fiber. with strong mechanics structure; Machine frame is acid proof, alkali proof, temperature proof and never aging, suitable for salt spray, cupric acetate various test specifications

2.With hydrometer:Assist user to make salt solution and copper acetate solution, through hydrometer to confirm concentration

3.Fog volume and accelerating speed are adjustable for aging.

4.Air tight system: falling fog will not spread out to corrode other metal parts.

5.Inner tubes with anticorrosive level to less the maintenance times

▶Applications

Salt spray corrosion test facility Applications :

——Adhesives & Sealants

——Architectural and Construction

——Automotive

——Paints & Coatings

——Photovoltaics

——Wind & Solar

——Consumer Electronics
